- Page 1 QUICK START GUIDE LPC55S06-EVK Evaluation Kit for the LPC55S0x MCU Family 96 MHz Arm Cortex -M33 core with integrated digital signal ® ® processing (DSP) instructions, 96 kB SRAM, 256 kB on-chip flash memory with flash accelerator, high-speed SPI, CAN FD...

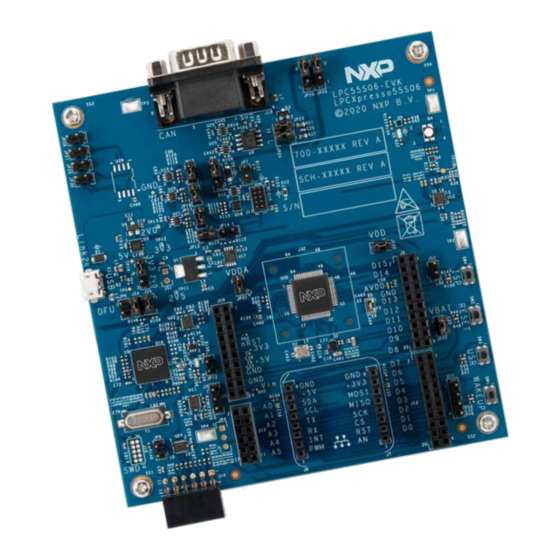

- Page 2 GET TO KNOW THE LPC55S06-EVK BOARD D-Sub D-Sub Connector Connector Power LED, D5 Power LED, D5 RGB LED, D4 RGB LED, D4 External Debug External Debug Connector Connector Accelerometer Accelerometer USB Connector USB Connector (Debug Probe) (Debug Probe) LPC55S06 MCU...
- Page 3 QUICK START GUIDE LPC55S06-EVK HOW TO GET STARTED 1. Connect the LPC55S06-EVK board to a PC using a micro USB cable to link USB J1. The power LED, D5, will illuminate. 2. The LPC55S06-EVK board comes pre- programmed with a demo. LED D4 will blink on/off to verify the demo is running.
- Page 4 GET STARTED Download installation software and documentation at www.nxp.com/LPC55S06-EVK. SUPPORT Visit www.nxp.com/support for a list of phone numbers within your region. WARRANTY Visit www.nxp.com/warranty for complete warranty information. www.nxp.com/LPC55S06-EVK NXP and the NXP logo are trademarks of NXP B.V. All other product or service names are the property of their respective owners.
