Echogear EGMA-EPM21 Instruction Manual

#YourGearUpgraded
EGMA-EPM21

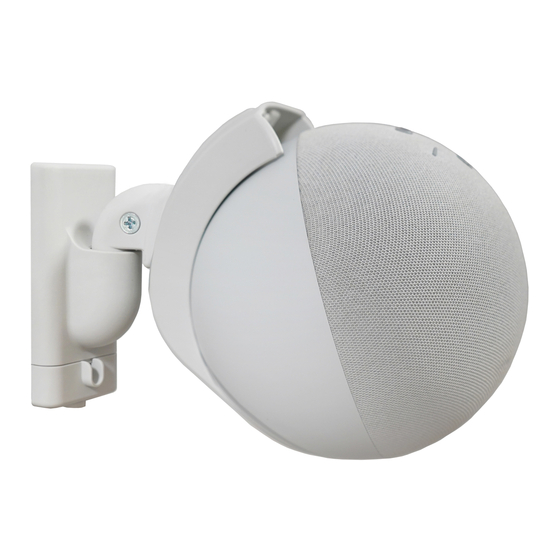

Tilt & Swivel Wall Mount
for Amazon Echo (4th Gen)
INSTRUCTION MANUAL
Yea, the boring stuff ...
CAUTION: Avoid potential personal injuries and property damage!
• Check your speaker owner's manual to see if there are any special requirements for mounting your speaker.
• Do not use this product for any purpose not explicitly specified by manufacturer.
• Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
• If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact the Echogear Pros.
Confuzzled?
(North America)
•
P: 1-855-428-2490 helpmehelpyou@ECHOGEAR.com
ECHOGEAR.com
Speaker Weight Limit:
DO NOT EXCEED
2.5 lbs.
(1.1 kg)
What's in the Box ... What's IN THE Boooooxx
WARNING:
DO NOT FEED TO CHILDREN! This product contains small items that could be a choking hazard if
swallowed. Keep these items away from young children!
NOTE: Not all hardware included will be used.
NOTE: Quantities shown are for one mount.
Stuff for STEP 1
Wall Plate Screw
#10 x 1¾ in.
02 x2
Anchor
AF6 Toggler
03 x2
Wall Plate
01 x1
For more install details and to watch
our install video check out our website!
www.echogear.com/echo-mount/
Para obtener más información sobre la instalación y ver nuestro vídeo de instalación, visite nuestro sitio web.
Pour découvrir plus de détails concernant l'installation et regarder la vidéo de l'installation,
rendez-vous sur notre site Web !
Weitere Informationen zur Installation und unser Installationsvideo finden Sie auf unserer Website.
Per maggiori informazioni e per guardare il nostro video di installazione, visita il nostro sito web!
Ga naar onze website voor meer informatie over de installatie. Bekijk ook onze installatievideo!.
På vår webbsida finns mer detaljerad information om installation och vår installationsvideo!
Для получения дополнительных сведений об установке и просмотра видео по установке посетите наш веб-сайт!
若需详细的安装信息或观看安装视频， 请访问我们的网站！
取り付けの詳細情報および取り付け手順のビデオについては、 ウ ェブサイ トでご確認く ださい ！
www.echogear.com/echo-mount/
but read it, so you don't jack things up!
Contact the ECHOGEAR Pros:
Phillips
Screwdriver
Electric
Drill
Pencil
a
a
a
b
a
b
b
b
(Europe)
•
P: +44 (0) 800 0568188
ECHOGEAR.com
Tools Needed
Awl
1/8 in.
(3 mm)
Wood
Stud Finder Drill Bit
Stuff for STEP 2
Mount
04 x1
Stuff for STEP 2
helpme@ECHOGEAR.com
1/4 in.
(6.5 mm)
Masonry
Drill Bit
Hammer
Hammer
Assembly Screw
10-24 x 5/8 in.
06
Speaker Screw
1/4-20 x 1/2 in.
07
Bracket
05 x1
Cap
08 x1
1/4 in.
(6.5 mm)
Drill Bit
x1
x1
