Allied Telesis AT-CM201 Specifications

Datasheet | Media Converters
CM2xx SERIES
Converteon Series Line Cards
TM

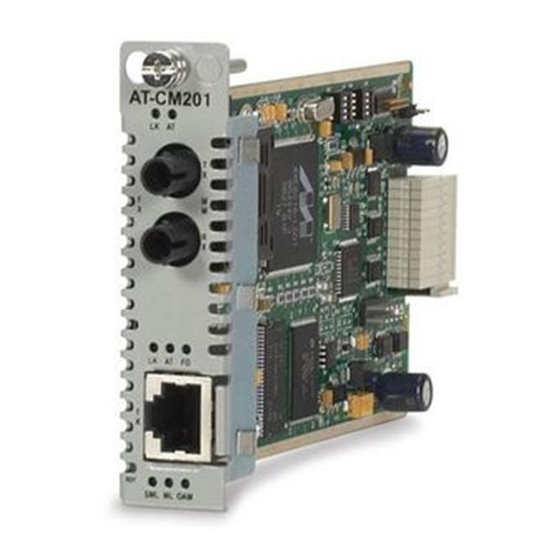

AT -CM201
10/100TX, 100FX (ST, 2km, MM) media and
rate converter line card, with OAM
AT -CM202
10/100TX, 100FX (SC, 2km, MM) media and
rate converter line card, with OAM
AT -CM202/1
10/100TX, 100FX (SC, 15km, SM) media and
rate converter line card, with OAM
AT -CM202/2
10/100TX, 100FX (SC, 40km, SM) media and
rate converter line card, with OAM
AT -CM212A/1
10/100TX, 100FX (SC,15km, SM) single fiber
media and rate converter line card, with OAM
AT -CM212B/1
10/100TX, 100FX (SC,15km, SM) single fiber
media and rate converter line card, with OAM
Allied Telesis Allied Telesis
Overview
The CM2xx series Ethernet media and rate
converter line cards are designed to extend the
distance of your network by interconnecting
LAN devices that are physically separated by
large distances and provide ease of management
and reduced operational expenditure. The range
of line cards support both multi-mode and
single-mode fiber, at distances up to 40km.The
CM2xx series supports IEEE 802.3ah OAM
(Operations, Administration, and Maintenance or
Ethernet in the First Mile), and thus are ideal for
service providers.This functionality allows
network managers to configure and monitor a
remote line card, from a central location in-band,
without having to deploy any additional network
management agents. Compliant with IEEE
standards, these converters will inter-operate
with other standards-based media converters,
switches, fiber interface cards, etc over the fiber
optic cable.
Key Features
• Converts speed as well as media type
• Extends Ethernet and Fast Ethernet networks
• Supports IEEE 802.3ah 'Ethernet in the First Mile'
• Support MissingLink TM and
Smart MissingLink TM
• Transparent to IEEE 802.1Q VLAN packets
• Automatic address learning and aging
• Managed or unmanaged operation
• Auto MDI/MDI-X
• Auto-negotiation (IEEE 802.3u-compliant)
• Store and forward data packet handling
• Supports dual and single fiber from 2km to
40km
• System and port LEDs
• Line card for all Converteon series chassis'
• Rate limiting
• Dying gasp
