Disk - Disk Ripper - Remlinger Single Roller Harrow Install/Owner’s Manual

Disk - Disk Ripper

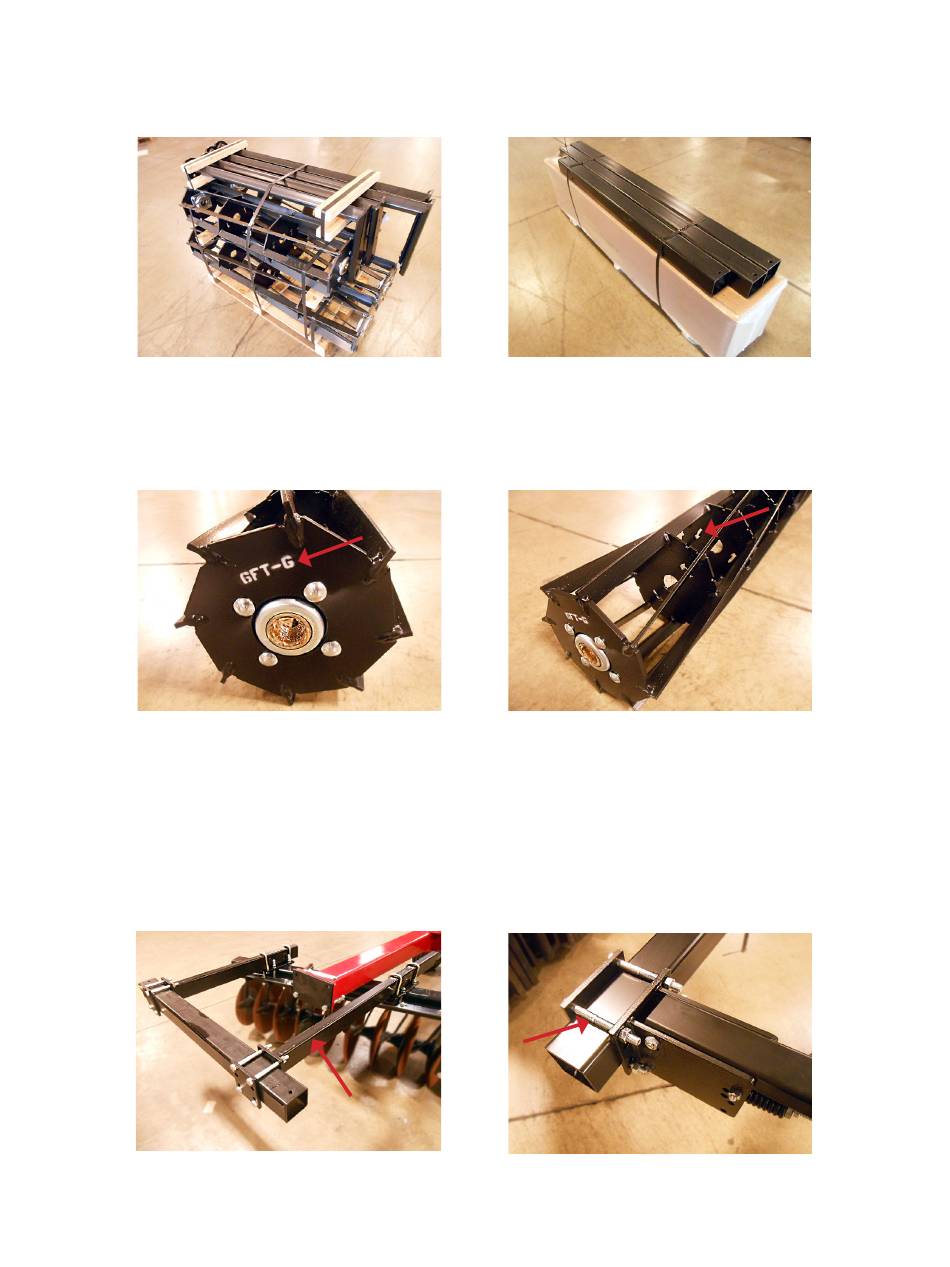

1. The roller sections with bearings have been factory assembled and palletized. Roller Arms and
required hardware are packed in and/or on a sturdy cardboard box.
2. Each roller section has the
of each roller size. The
sections are attached to implement in the Aggressive Mode. The arrows should face forward,
pointing towards the implement.
3. Lay the roller sections out behind the implement. Reference additional layout sheet for proper
location of each roller section. Mount the adapter extension arms to the rear frame or disk gang
of the tool. Use the
forward as close as possible, this helps reduce rear end weight and rear stress on implement. The
roller mounting arm is then attached directly to the 4x4 tube supplied in this kit. Use the
6 1/2" hex cap bolts.
right movement for mounting arms until roller frame is attached to each pair of arms.
1-800-537-7370
Remlinger Mfg reserves the right to change pricing or specifications at anytime without notice or obligation
size stenciled on the end. There is an arrow cut into each inner plate
direction of the arrow indicates the Aggressive Mode. Most mounted
specified hex cap bolts
Recommendation is to leave mounting arms slightly loose, this allows left to
and mounting plates. Note: Slide adapters and tubes
7
roller
5/8"-11 x
Manual # - MAN-SRH-DFC-004
