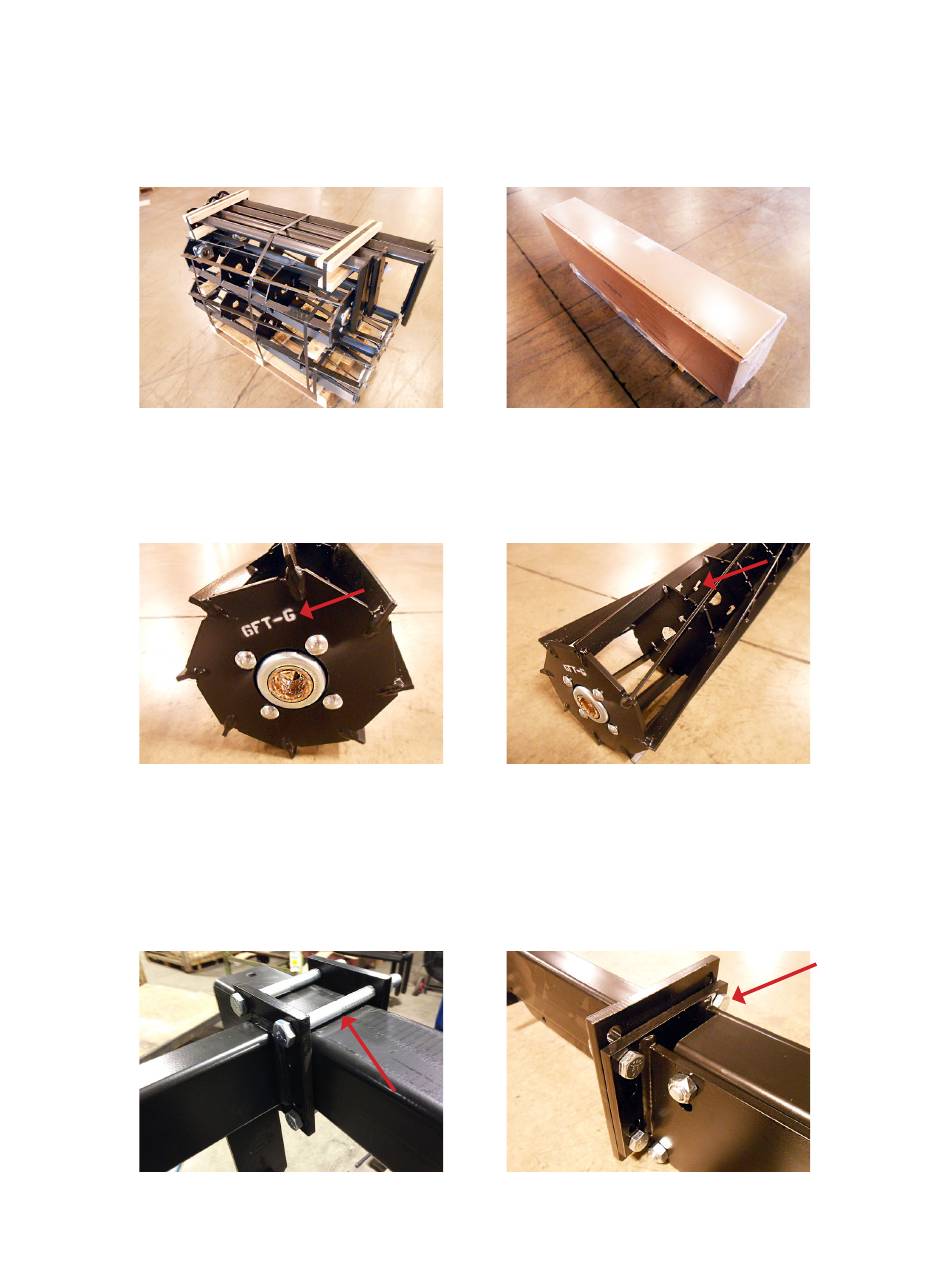

1. The roller sections with bearings have been factory assembled and palletized. Roller Arms and
required hardware are packed in a sturdy cardboard box.
2. Each roller section has the
of each roller size. The
sections are attached to implement in the Aggressive Mode. The arrows should face forward,
pointing towards the implement.
3. Lay the roller sections out behind the implement. Reference additional layout sheet for proper
location of each roller section. Mount the extension arms to the rear frame of the tool. Use the
5/8"-11 x 6 1/2" hex cap bolts
directly to the extension arm. Use the
mounting arms slightly loose, this allows left to right movement for the mounting arm until roller
frame is attached to each pair of arms.
1-800-537-7370
Remlinger Mfg reserves the right to change pricing or specifications at anytime without notice or obligation

Mounting the Roller Harrow

size stenciled on the end. There is an arrow cut into each inner plate
direction of the arrow indicates the Aggressive Mode. Most mounted
and mounting plates. The Roller mounting arm is then attached
5/8"-11 x 2" hex cap bolts. Recommendation is to leave
5
roller
Manual # - MAN-SRH-DFC-004
