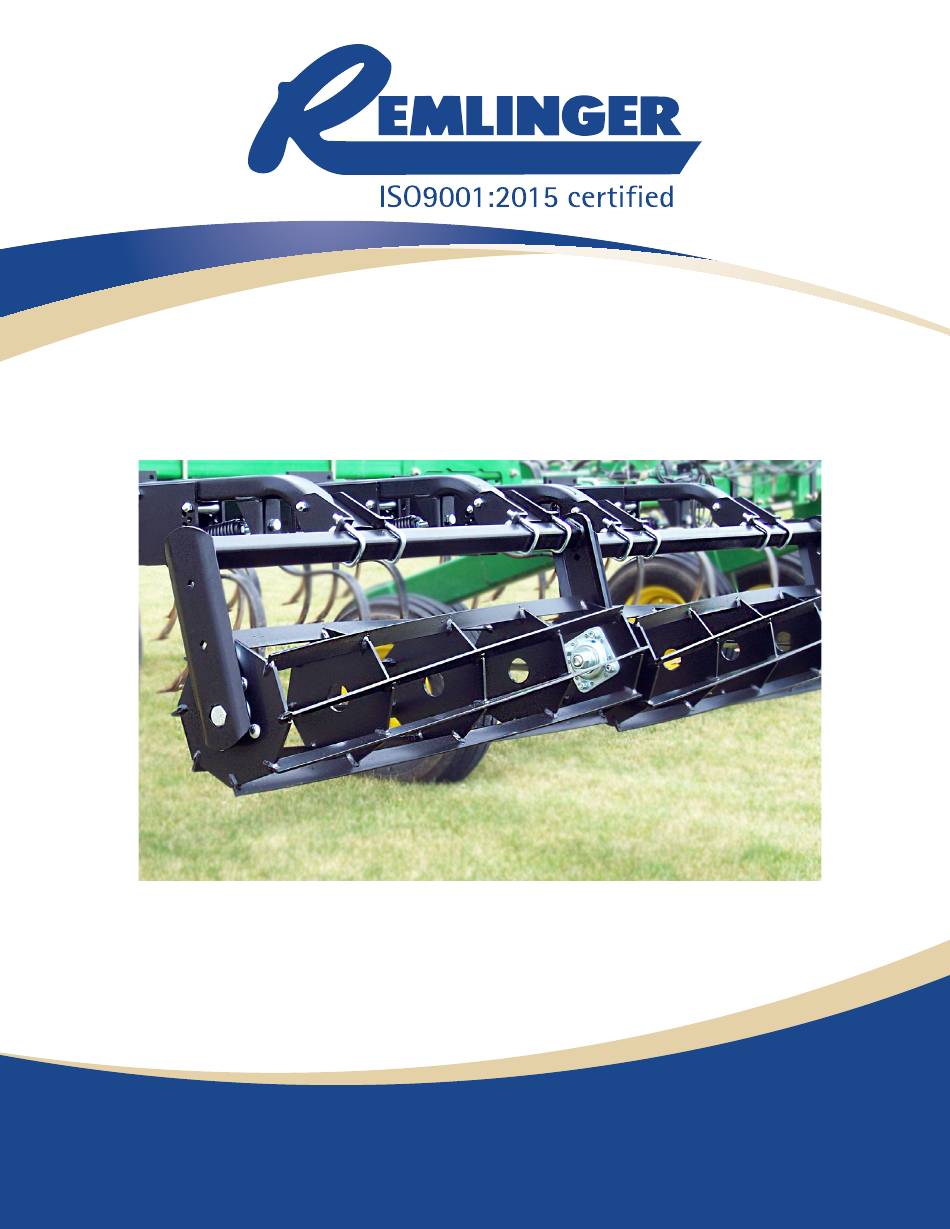

- Page 1 Single Roller Harrow Setup/Owner’s Manual Our Tradition is Quality Driven and Field Proven Manual # - MAN-SRH-DFC-004...
-
Page 2: Table Of Contents
Table of Contents Warning ...........................3 Safety Rules ..........................3 To the Owner ...........................4 Warranty Policy ........................4 Mounting the Roller Harrow Field Cultivator - Chisel Plow....................5 Disk - Disk Ripper ......................7 Setting the Roller Harrow Roller Height & Depth .......................9 Recommended Torque Specifications ...................12 Maintenance ..........................12 Troubleshooting ........................13 Common Adapter Mounts ......................14... -
Page 3: Warning
Always support the implement when mounting or working on the attachment. • Be careful around teeth, tines, sweeps, and blades: they get sharper with wear. 1-800-537-7370 Manual # - MAN-SRH-DFC-004 Remlinger Mfg reserves the right to change pricing or specifications at anytime without notice or obligation... -
Page 4: To The Owner
Warranty will only be granted after examination by appropiate personnel. This warranty is expressly limited to the replacement of defective products. This warranty does not obligate Remlinger Manufacturing to cover cost of labor to replace these parts. This warranty is in effect for 1 year after purchase. -
Page 5: Mounting The Roller Harrow
1-800-537-7370 Manual # - MAN-SRH-DFC-004 Remlinger Mfg reserves the right to change pricing or specifications at anytime without notice or obligation... - Page 6 Tighten all fasteners properly and evenly. Improper tightening of bolts may cause plates to deform, which will not be covered under warranty. 1-800-537-7370 Manual # - MAN-SRH-DFC-004 Remlinger Mfg reserves the right to change pricing or specifications at anytime without notice or obligation...
-
Page 7: Disk - Disk Ripper
Recommendation is to leave mounting arms slightly loose, this allows left to right movement for mounting arms until roller frame is attached to each pair of arms. 1-800-537-7370 Manual # - MAN-SRH-DFC-004 Remlinger Mfg reserves the right to change pricing or specifications at anytime without notice or obligation... - Page 8 Tighten all fasteners properly and evenly. Improper tightening of bolts may cause plates to deform, which will not be covered under warranty. 1-800-537-7370 Manual # - MAN-SRH-DFC-004 Remlinger Mfg reserves the right to change pricing or specifications at anytime without notice or obligation...
-
Page 9: Setting The Roller Harrow
To decrease any spring tension from factory assembly, loosen the 5/8” jamb nut on and turn threaded bolt counter clock-wise until spring is released of any tension. 1-800-537-7370 Manual # - MAN-SRH-DFC-004 Remlinger Mfg reserves the right to change pricing or specifications at anytime without notice or obligation... - Page 10 The roller arm assembly is factory assembled and will need some kind of adjustment. Set- tings will vary depending the implement that the roller harrow is attaching to. 1-800-537-7370 Manual # - MAN-SRH-DFC-004 Remlinger Mfg reserves the right to change pricing or specifications at anytime without notice or obligation...
- Page 11 See chart on page 12. 7.Place Remlinger Decal on harrow either top of the arm, rear of the roller cross frame or anywhere the decal can fit (optional). See Above picture for Serial # Location. Note: Serial # Decal is usually on the one side of the main mounting arm!
-
Page 12: Recommended Torque Specifications
Preventative maintenance can save time and expense to the attachment if issues are found before heading to the field. 1-800-537-7370 Manual # - MAN-SRH-DFC-004 Remlinger Mfg reserves the right to change pricing or specifications at anytime without notice or obligation... -
Page 13: Troubleshooting
1-800-537-7370 Manual # - MAN-SRH-DFC-004 Remlinger Mfg reserves the right to change pricing or specifications at anytime without notice or obligation... -
Page 14: Common Adapter Mounts
Butt-up Adapter - Straight Rear Frame Butt-up Adapter - Welded Rear Plate Universal Adapter - Rear Mount Frame Butt-up Adapter - Rear Mount Frame 1-800-537-7370 Manual # - MAN-SRH-DFC-004 Remlinger Mfg reserves the right to change pricing or specifications at anytime without notice or obligation... -
Page 15: Optional Roller Accessories
Hydraulic Roller Option 6” Drop Pivot Bracket HD Flat/Round Bar Roller Option 14” Diameter Round Bar Roller Option 12” 1-800-537-7370 Manual # - MAN-SRH-DFC-004 Remlinger Mfg reserves the right to change pricing or specifications at anytime without notice or obligation... - Page 16 Remlinger Manufacturing 16394 US 224 PO Box 299 Kalida, OH 45853 Toll Free 1-800-537-7370 Phone (419) 532-3647 Fax (419) 532-2244 technicalsupport@remlingermfg.com www.remlingermfg.com View Manual Online Email Tech Support...
