Remlinger Single Roller Harrow Install/Owner’s Manual page 11

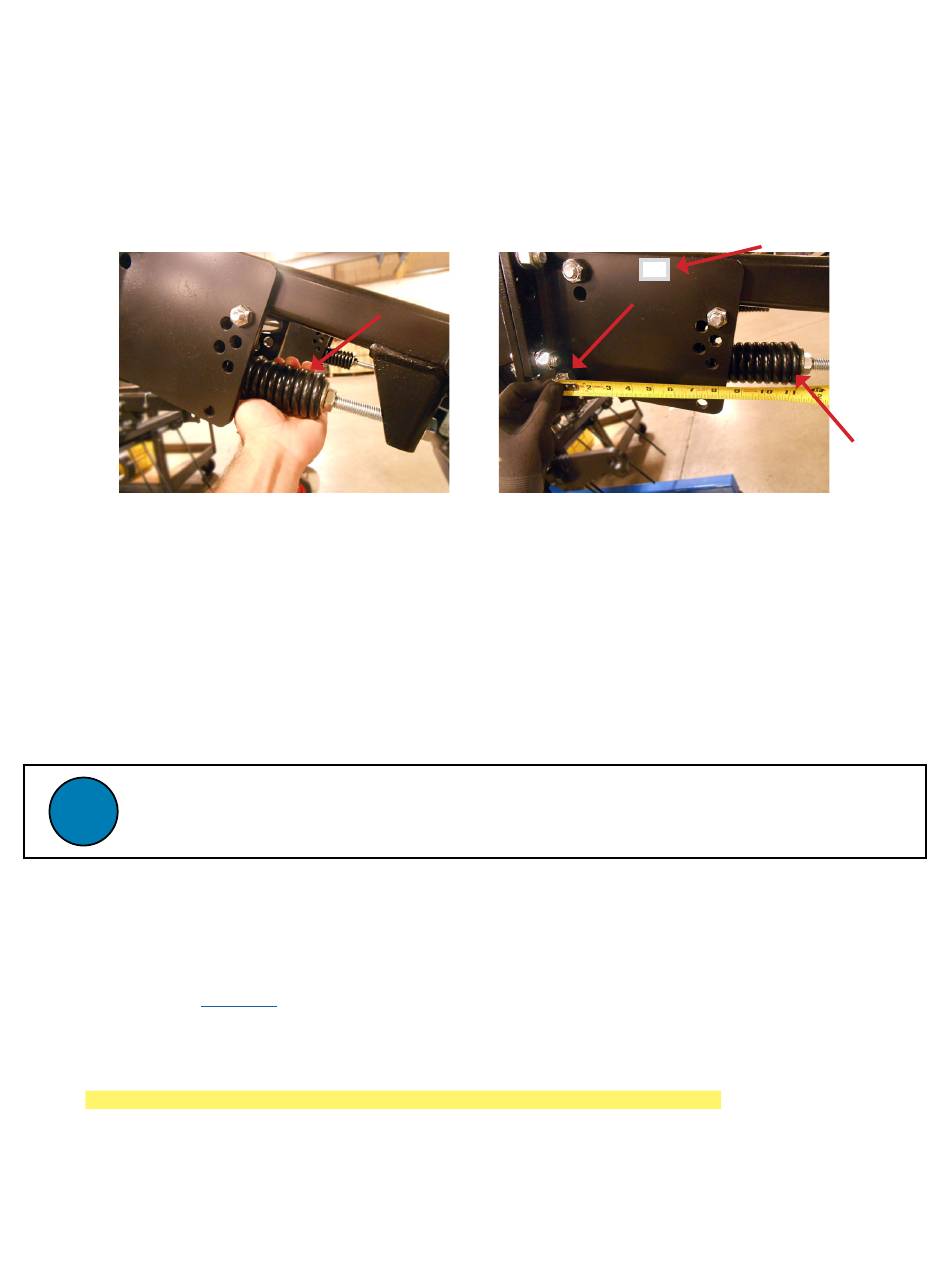

5. Spring tension is a key element to having the roller harrow work properly. To accomplish this,
the following is recommended. To apply spring tension on your roller harrow, the roller section
must be still resting on the spacer boards and the tension bolt will look similar to the pictures
above. Tighten the spring by turning threaded bolt into the spring plug. When spring assembly is
snug (movement free in the arm) measure from the center of 5/8" bolt to the flat face of the spring
plug, this is the starting point to apply tension to the arm. Each arm will have tension applied to it.
Each roller size will be set differently depending the particular sizes attached onto the implement.
Note: All springs on the roller section should be changed equally.
We recommend setting the down pressure at approximately 70lb/ft. To increase or decrease
!
down pressure, turn bolt one complete revolution to change tension approximately 6.5lbs.
(not 6.5 lbs/ft)
6. After spring tension has been set on all the arms, tighten the 5/8" jamb nut against the face of
the spring plug to lock down tension settings. See above picture. Check for any other loose bolts
and tighten before conducting any field work. Torque all bolts to recommended torque settings.
See chart on page 12.
7.Place Remlinger Decal on harrow either top of the arm, rear of the roller cross frame or
anywhere the decal can fit (optional). See Above picture for Serial # Location.
Note: Serial # Decal is usually on the one side of the main mounting arm!
