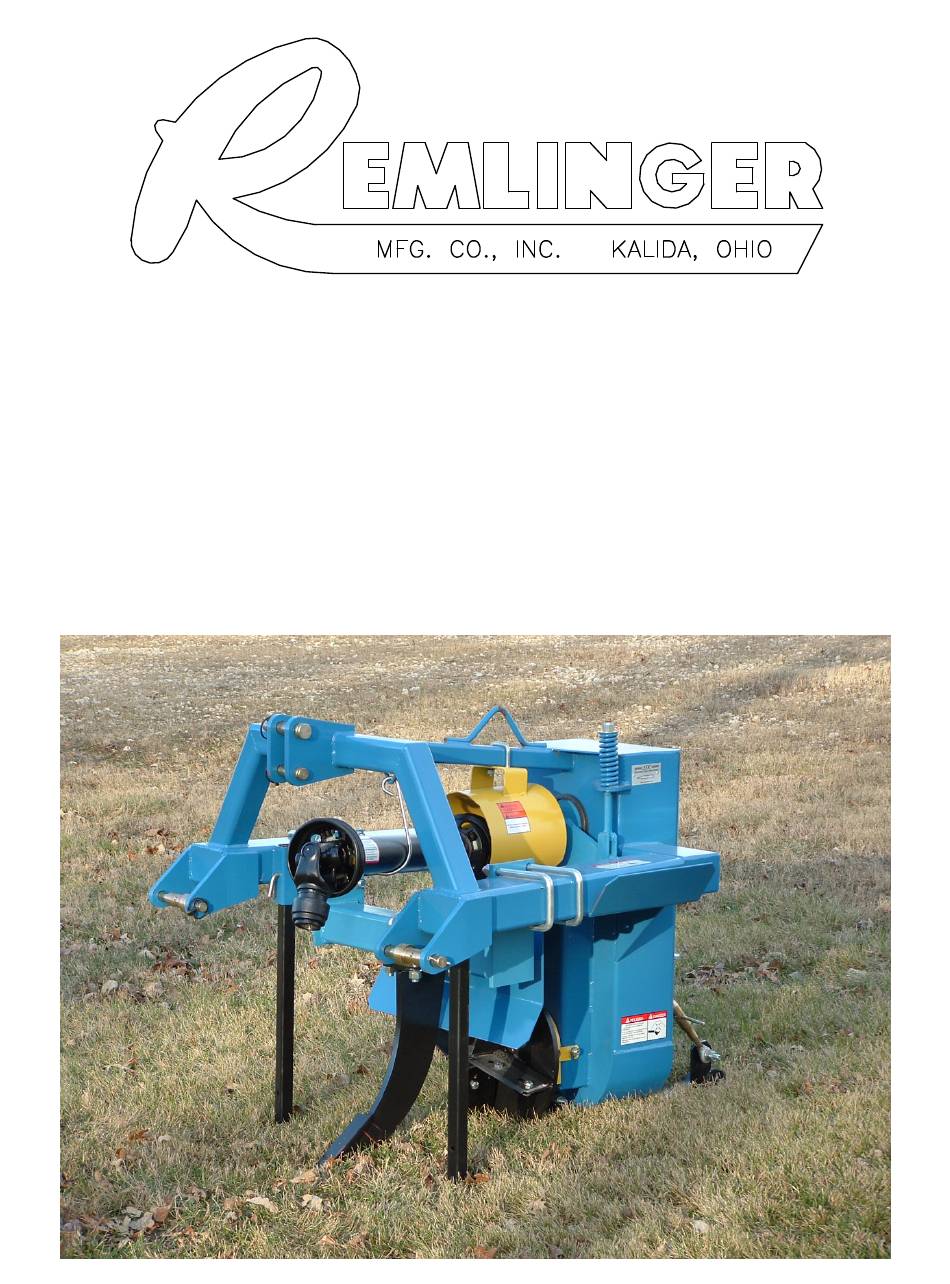

- Page 1 Series 400 Power Ditcher - Center Cut Operator and Parts Manual...
- Page 2 This warranty is expressly limited to the replacement or repair of the defective products. This warranty does not obligate Remlinger Manufacturing to cover cost of labor to replace these parts. This warranty is in effect for 1 year after purchase.
- Page 3 The number on equipment damage. the Remlinger decal is the serial number. THIS MANUAL SHOULD BE considered a permanent part of this product and should remain with it at all times for reference.
- Page 4 THIS PAGE LEFT BLANK iv iv...
-
Page 5: Table Of Contents
Contents Checklist ................................1 PREDELIVERY CHECKLIST ........................ 1 DELIVERY CHECKLIST ........................1 Safety ................................2 RECOGNIZE SAFETY INFORMATION ....................2 UNDERSTAND SIGNAL WORDS ......................2 FOLLOW SAFETY INSTRUCTIONS ..................... 2 Safety Cont................................ 3 OPERATE SAFELY ..........................3 STAY CLEAR OF ROTATING DRIVE LINES ..................3 LUBRICATE THE DITCHER SAFELY .................... - Page 6 THIS PAGE LEFT BLANK...
-
Page 7: Checklist
Checklist PREDELIVERY CHECKLIST Check tightness of all external nuts and bolts. After the ditcher has been completely assembled, Pay particular attention to those securing the inspect it to be sure it is good running order before blades. delivering it to the customer. Check each item when Check that all moving parts are working found satisfactory or after making the necessary adjustments. -
Page 8: Safety
SAFETY RECOGNIZE SAFETY INFORMATION This is the safety-alert symbol. When you see this symbol on your machine or in this manual, be alert to the potential for personal injury. Follow recommended precautions and safe operating practices. UNDERSTAND SIGNAL WORDS DANGER: Indicates an imminently hazardous situation that if not avoided, will result in death or serious injury. -
Page 9: Safety Cont
Safety Cont. OPERATE SAFELY To avoid bodily injury, keep all power drive safety shields in place. Operate ditcher with 1000 rpm tractor. Should excessive vibration occur, disengage tractor PTO shaft immediatly. Be sure rotor has stopped completely before checking blades. Always replace broken, worn or missing blades. -
Page 10: Operating
Operating BREAK-IN Before starting the ditcher, lubricate the machine. See Lubrica- tion and Maintenance Section. CAUTION: Never operate the ditcher until the power shaft and other safety shields are in place and secured, Tighten all nuts and check cotter pins to see they are properly installed. -
Page 11: Lubrication And Maintenance
Lubrication and Maintenance SYMBOLS Lubricate with Multi-Purpose lubricant or an equivalent SAE multipurpose type grease at hourly intervals indicated by the symbols. Q-D “E” BUSHING TORQUE Tighten bushing bolts to 60 ft. lbs. CAUTION: Do not clean, lubricate, or adjust your machine while it is in motion. -
Page 12: Belt Tension Setting
Belt Tension Setting Compress spring to 5 1/2 inches Centerline between shafts 90 - 100# pressure Belt should deflect 3/8 inch for center ditcher 1/2 inch for offset ditcher... -
Page 13: Troubleshooting
Troubleshooting Symptom Problem Solution Ditch to shallow Adjustment Lower 3 pt on tractor Retract 3 link on tractor 3 point Adjust slide shoe up Ditch too deep Adjustment Raise 3 pt on tractor Extend 3 link on tractor 3 point Adjust slide shoe down Non uniform ditching Improper tractor speed... -
Page 14: Torque Values
Torque Values UNIFIED INCH BOLT AND CAP SCREW TORQUE VALUES DO NOT use these values if a different torque value or Tighten plastic insert or crimped steel-type lock nut to tightening procedure is given for a specific application. approximately 50 percent of the dry torque shown in Torque values listed are for general use only. -
Page 15: Storage
Storage END OF SEASON 1. Shelter the power ditcher in a dry place. 2. Clean the power ditcher thoroughly inside and out. Trash and dirt will draw moisture and cause rust. 3. Thoroughly lubricate the machine according to the Lubrication Section. 4. -
Page 16: Safety Decal Locations
Safety Decal Locations FM78-400 051216... - Page 17 THIS PAGE LEFT BLANK...
-
Page 18: Sn 400-440 Or Higher
POWER DITCHER FRAME ASSEMBLY MODELS 400-10, 400-20 AND 400-30 SERIAL # 400-440 - FM78-400 REVISION 051213... - Page 19 POWER DITCHER FRAME B.O.M. MODELS 400-10, 400-20 AND 400-30 SERIAL # 400-440 - & FM78-400 REVISION 090116...
-
Page 20: Power Ditcher Shank Assembly
POWER DITCHER SHANK ASSEMBLY MODELS 400-10, 400-20 AND 400-30 REVISION 030625... - Page 21 POWER DITCHER SHANK B.O.M MODELS 400-10, 400-20 AND 400-30 REVISION 071113...
-
Page 22: Pto Shaft Assembly For 1 3/8" - 21 Spline Shaft Part # 11300010 (Walterscheid)
WEASLER PTO ASSEMBLY PART# 11300060 1 3/8” - 6 SPLINE 540 RPM & & &... - Page 23 WEASLER PTO ASSEMBLY PART# 11300061 1 3/8” - 21 SPLINE 1000 RPM & & &...
-
Page 24: Pto Shaft Assembly For 1 3/8" - 6 Spline Shaft Part # 11300011 (Walterscheid)
WEASLER PTO ASSEMBLY PART# 11300062 1 3/4” - 20 SPLINE 1000 RPM & & &... - Page 25 THIS PAGE LEFT BLANK...
-
Page 26: Pto Shaft Assembly For 1 3/4" - 20 Spline Shaft Part # 11300012 (Walterscheid)
Coulter Gage Wheel Dealer Purchased From Name: Address: City: State: Zip: Mail To: Fax To: Email To: Remlinger Mfg. Co. Inc. (419) 532-2244 agsales@remlingermfg.com P. O. Box 299 Kalida, OH 45853 Thank you for purchasing the Remlinger Family of Products.
