- Page 1 User Manual Operator chair Carl Mk2 - Model R5 - Easy - Model R6 - Rilis - Model R7 - OneGrip - Model R8 - FlexiDoc 2011-0058 v6...
-
Page 2: Table Of Contents
Chair height adjustment ..............8 Seat angle adjustment ..............8 Backrest angle and height adjustment ........... 8 Model R5 - "Easy" armrest ............. 9 Model R6 - "Rilis" safety armrest ..........10 Model R7 - "OneGrip" armrest ............. 11 Model R8 - "FlexiDoc" armrest ............. 12 On/Off, battery and charging ............ -
Page 3: Operator Chair Carl Mk2

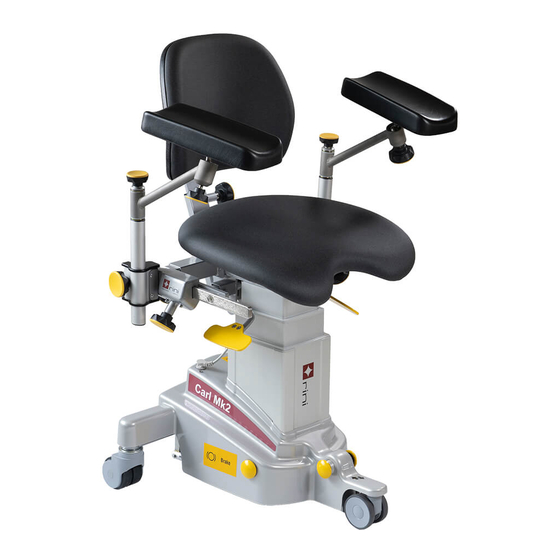

At the same time for the surgeon, Carl Mk2 offers maximum ergonomic comfort by extensive configuration options achieved by the use of intuitive hand grips. The model R5 is supplied armrest "Easy" where the armrest plate can be angled 360°. The model R6 is supplied with Rini's patented safety armrest "Rilis"... -
Page 4: Unpacking
This may cause damage. Make sure that the delivery includes all ordered parts. Contact your Rini sales representative if you find any discrepancies. 2.2 Installation When you get the operator chair delivered, it is not ready to be used. -
Page 5: Intended Areas Of Use
That the electrical brake is working That the battery is fully charged Please contact your local Rini representative if you have any questions or concerns. 2.3 Intended areas of use The operator chair Carl Mk2 with three wheels is developed for different types of microsurgery where the operator needs a stable seated work position with flexible relief for the arms. -
Page 6: Product Identification Label
Operator chair Carl Mk2 Product identification label The label is located on the back of the cand shows the product part number and its unique serial number. For questions about this product, always specify these numbers to facilitate identification. Label description Warning. -
Page 7: Basic Adjustments Of The Chair
Operator chair Carl Mk2 Basic adjustments of the chair Carl Mk2 has simple, intuitive controls and buttons to adjust the chair to an effective and ergonomic working environment for the operator. For greater clarity, these are indicated in yellow. Back height adjustment Shown is Model R6 with safety armrest ”Rilis”... -
Page 8: Chair Height Adjustment
Operator chair Carl Mk2 4.2 Chair height adjustment The seat is raised and lowered electrically where the lifting construction consists of a battery-powered motor, control box and a battery pack. Seat height is controlled by two buttons on the sides of the front wheel, this by pressing with the heel on the buttons. -
Page 9: Model R5 - "Easy" Armrest
Adjust the height by loosening the knob and lock a suitable position by tightening it again. 4.5 Model R5 - "Easy" armrest Rinis "Easy" armrest have square cup shaped plates that are able to be set in all possible angles. -
Page 10: Model R6 - "Rilis" Safety Armrest
Operator chair Carl Mk2 Setting 3 (coarse setting) The height of the entire armrest can be adjusted so it is in the center of the work area for subsequent fine tuning. Use the knob to set the appropriate armrest height. Setting 4 Turn knob to adjust the sideway position as well as the friction of the... -
Page 11: Model R7 - "Onegrip" Armrest
Operator chair Carl Mk2 Setting 3 (coarse setting) The width between the armrests can be adjusted by loosening the knob under the seat. Setting 4 By pressing the buttons, the armrest can be adjusted for an optimal working position. To release the armrest you need to use two hands for safety reasons. -
Page 12: Model R8 - "Flexidoc" Armrest
Operator chair Carl Mk2 Setting 2 (coarse setting) The height of the entire armrest can be adjusted so it is in the center of the work area for subsequent fine tuning. Use the knob to set the appropriate armrest height. Setting 3 (coarse setting) The width between the armrests can be adjusted by loosening the knob under the seat. -
Page 13: On/Off, Battery And Charging
During operation - blinking twice/sec and buzzer sound Batteries have a limited lifespan and battery module must during normal working conditions be replaced after about four years. A new battery module can be ordered from your local distributor or Rini. -
Page 14: Disinfection, Cleaning And Repairs
Water Use damp cloth Repairs The product should only be repaired by Rini or a Rini authorised service centre. Product to be repaired under warranty must be sent to Rini factory or an authorised Rini service centre. Unauthorized repairs and modifications may result in loss of function and void warranty. -
Page 15: Technical Data
700 to 1060hPa Disposal and recycling The product is mainly made from environmentally recyclable materials as steel, stainless steel, aluminum and plastics. Rini recommends that the material be sorted and recycled in connection with the destruction of the product. Electronic parts and cables shall be handled as electronic waste in accordance with local requirements. - Page 16 Rini Ergoteknik AB Fågelsångsvägen 3B SE-186 42 Vallentuna Sweden Phone +46 8 594 77170 Email info@rini.se www.rini.se...
