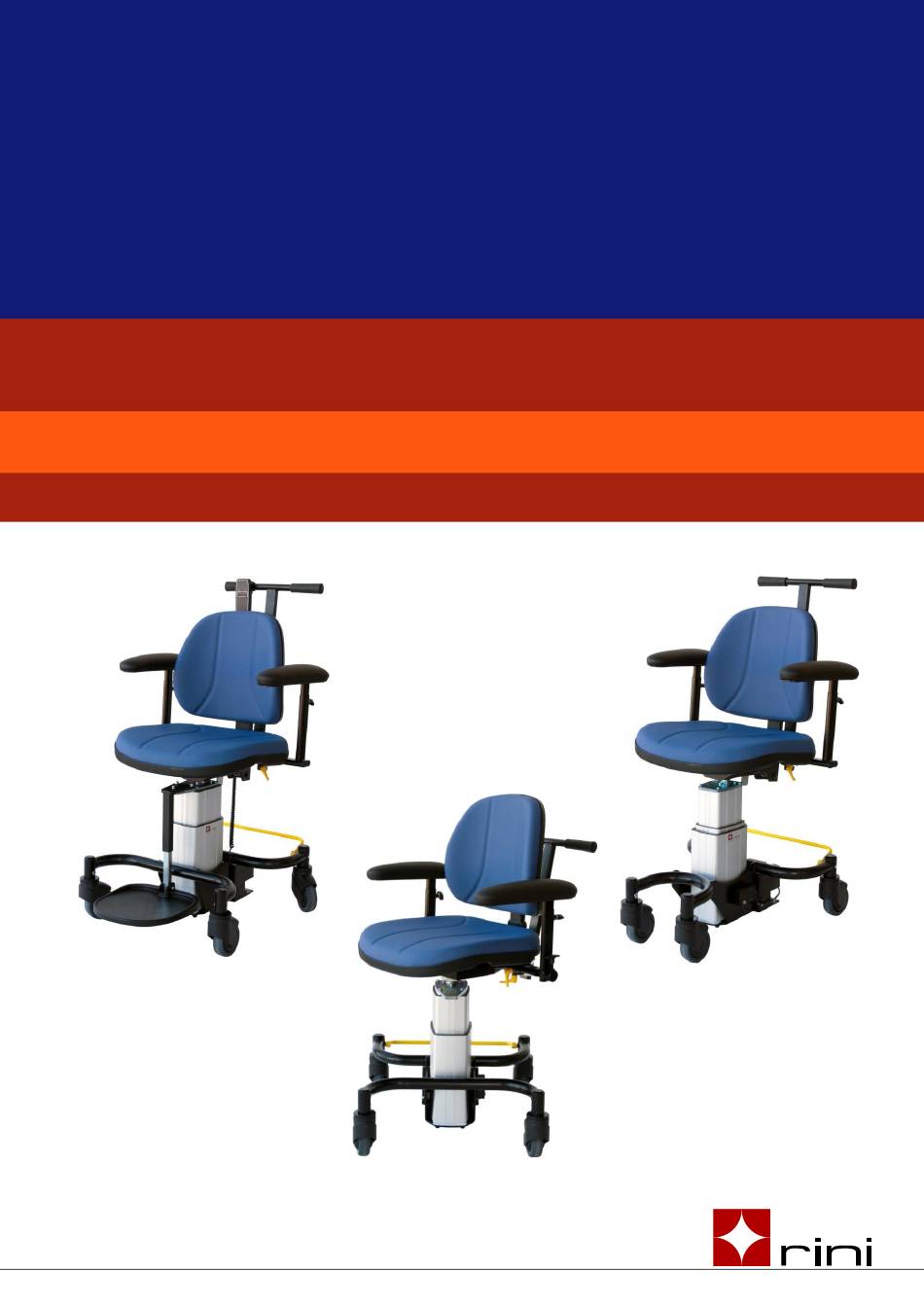

- Page 1 User manual Operator chair Carl Mk2 Patient chair Malin - Model - Rock - Model - Swing - Model - Slim Slim Rock Swing 2007-0013 v9 Tel +46-8-...
-
Page 2: Table Of Contents
Patient chair Malin Table of content Patient chair Malin ................3 Important - Before use ..............3 Unpacking and installation ............. 3 Intended areas of use ..............4 Product identification label ............. 4 Basic adjustmets of the chair ............5 Tips for comfortable position ............ -
Page 3: Patient Chair Malin
Be careful when lifting the chair off the pallet. The chair is heavy and may cause injury. Do not use sharp tools when removing the packaging material. This may cause damage. Make sure that the delivery includes all ordered parts. Contact your Rini sales representative if you find any discrepancies. -
Page 4: Intended Areas Of Use
Patient chair Malin Intended areas of use The patient chairs Malin model Rock, Swing and Slim are developed for different types examination or treatment where the patient needs to be in a stable seated position and the operator need to make fine adjustments during examination. -
Page 5: Basic Adjustmets Of The Chair
Patient chair Malin 3. Basic adjustmets of the chair 1. Backrest that can be adjusted in height with a locking clip placed on the backrest bar. 2. Armrests (accessory) either fixed (shown) or collapsible. The height as well as the width between the armrests can be adjusted. The width by using the yellow handles under the seat. -
Page 6: Tips For Comfortable Position
Patient chair Malin Tips for comfortable position To achieve a comfortable ergonomic working position the operators chair should first be adjusted and then the examination equipment (e.g. slit lamp, laser etc.). Thereafter the patient chair Malin is can adjusted to fit the examination equipment. -
Page 7: Replacing The Battery Modules
Patient chair Malin It takes approximately 12 hours to fully charge the battery and charging is automatically is switched off to avoid overcharging. Only the dedicated charger must be used for the chair. Replacing the battery modules The batteries are mounted inside the control box and to replace them first unplug the control box connectors and remove the four screws. -
Page 8: Armrests - Fixed And Collapsible
Patient chair Malin Armrests - fixed and collapsible To increase patient comfort and control the chairs can be fitted with fixed armrests (left armrest in the picture below) or collapsible armrests (right armrest below). These can be mixed and matched and are easy to retrofit after delivery. -
Page 9: Wireless Control
Patient chair Malin Wireless control This is a factory mounted accessory including a special control box and IR receiver and charger inlet. There are two versions of the wireless hand control. One for only controlling the height of the chair and one for controlling both the height of the chair as well as the accessory electrical brake. - Page 10 Patient chair Malin LED indicators during programming The IR channels are changed in groups of 4 channels at the time. Channel group 16-19 is normally used as default channels at delivery. Channel group matrix 00-03 16-19 32-35 48-51 04-07 20-23 36-39 52-55 08-11...
-
Page 11: Foot Support
Patient chair Malin Foot support There are two types of foot supports available that both easily can be retrofitted. One flat foot support of plastic and one T-shaped of metal. The foot support makes it easier for to move a patient sitting in the chair. The flat foot support can be adjusted in height and has a folding function. -
Page 12: Disinfection, Cleaning And Repairs
Water Use damp cloth Repairs The product should only be repaired by Rini or a Rini authorised service centre. Product to be repaired under warranty must be sent to Rini factory or an authorised Rini service centre. Unauthorized repairs and modifications may result in loss of function and void warranty. -
Page 13: Technical Specification
700 to 1060hPa Disposal and recycling The product is mainly made from environmentally recyclable materials as steel, stainless steel, aluminum and plastics. Rini recommends that the material be sorted and recycled in connection with the destruction of the product. Electronic parts and cables shall be handled as electronic waste in accordance with local requirements. - Page 14 Patient chair Malin Rini Ergoteknik AB Fågelsångsvägen 3B SE-186 42 Vallentuna Sweden Phone +46 8 594 77170 Email info@rini.se www.rini.se...
