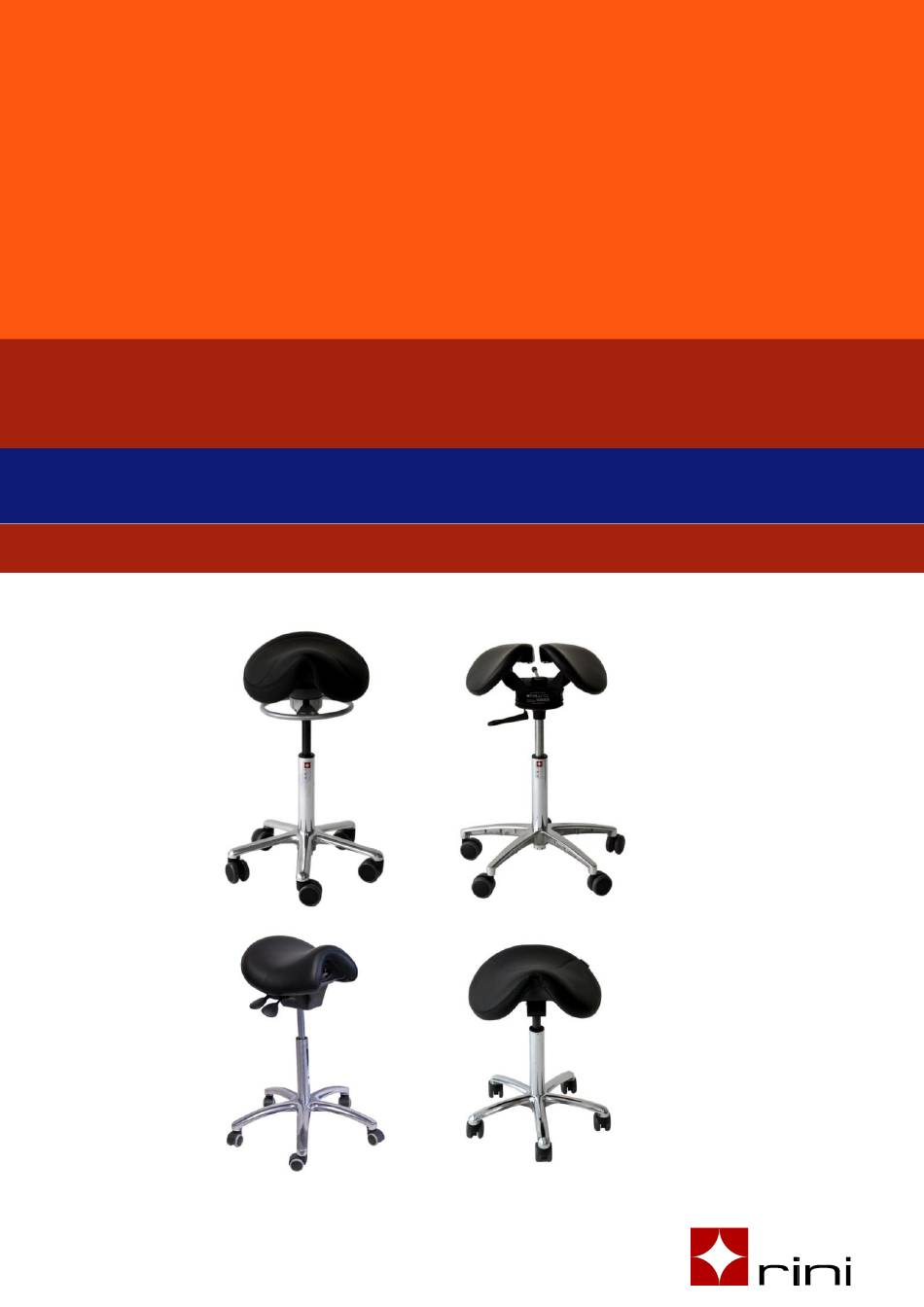

- Page 1 User guide Saddle chairs 2009-0054 issue 2 Tel +46-8-594...
-
Page 2: Table Of Contents
Saddle chairs Table of content Rini saddle chairs ................. 3 Registration ................... 3 Important – Before use ................ 3 Installation ..................... 4 Function and use .................. 5 Product description ............5 Intended use ..............6 Wheels and brakes ............6 To sit on a saddle chair ............ -
Page 3: Rini Saddle Chairs
Registration Please register your Rini products to help us improve our service and support to you. In addition you will receive the latest news from us on upgrades and new ergonomic product and solutions for your specific area. -
Page 4: Installation
Installation When you get the chair delivered, is it not ready to use. It must be installed according to this instruction or as agreed with your Rini supplier. Place the base on the floor and put in the gas spring ... -
Page 5: Function And Use
Saddle chairs Function and use Product description 1 Seat 2 Gas spring 3 Foot control 4 Wheel 5 Base 6 Hand control 7 Tilt control* * Accessory The special chairs can be equipped with a variety of accessories. These are not included in the basic model. See chapter 9 for technical specification. -
Page 6: Intended Use
Wheels and brakes The chair can be equipped with various types of wheels and trumpet gliders, each with different functions. The chair has five wheels/trumpet gliders. Product code Title 140-00122-00 Wheel low friction 140-00122-01 Wheel high friction 140-00122-02 Wheel, brake when loaded... -
Page 7: To Sit On A Saddle Chair
Saddle chairs To sit on a saddle chair To sit on a saddle chair is different from sitting on a regular chair. Place yourself beside the chair. Lift the leg closest to the chair over the seat and sit down. Can be likened to sit on a “male bike” Be careful when lifting the leg over the seat, the chair can be pushed away Warning! Attempt to be seated traditionally, which is... - Page 8 Saddle chairs 5.5.1 Hand control Under the seat is a lever for height adjustment. To lower the seat, sit on the chair and pull the lever up against the seat. Release when the desired height is reached. To raise the seat, stand up from the chair, pull the lever up against the seat and release when the desired height reached.
-
Page 9: To Move With A Saddle Chair
Saddle chairs 5.5.4 MultiAdjuster If you have bought a MultiAdjuster, the two halves can be adjusted. Wider in the rear or the front At the rear there is a lever which unlocks the halves. Lever for adjustment of the Viewed from behind; push the lever to the right to unlock the halves. Adjust and lock by pushing the lever back to its original position. - Page 10 Saddle chairs To change gas spring, a rubber or plastic hammer is needed. 1. Turn the chair upside down and hold it an inch above the ground Hit lightly here 2. Lift the chair in the gas spring and hit lightly with the hammer against the metal chassis under the seat Hit here 3.
-
Page 11: Cleaning And Maintenance
Saddle chairs 5.7.2 Foot controlled Narrow end Cone 5. Place the base on the ground and put the narrow end of the gas spring into the cone in the base Cone 6. The seat has a cone, which shall be placed at the thicker end of the gas spring 7. -
Page 12: Periodic Cleaning
Saddle chairs Periodic cleaning General cleaning of the chair should be made as needed, but at least once a week. Exposed parts should be cleaned after each use. It is important to follow the hospitals/clinic's cleaning instructions and routines. Detergents Details Detergents Information... -
Page 13: Maintenance And Service
Annual servicing of the table functions is recommended to maintain operational and personal security. Services include: Check and adjustment of moving mechanical parts and accessories Check of cushions Contact your Rini distributor regarding service. 6.4.2 Periodic maintenance Monthly Hinges and joints Use non-corrosive, standard instruments spray. -
Page 14: Accessories
Please contact your Rini distributor for information regarding spare parts for your product. Repairs The product should only be repaired by Rini or by Rini authorized service centre/engineer. Items under warranty must be sent to a by Rini authorized service centre. -
Page 15: Installation
1 or 2 000-01130-00 000-01608-00 or Frame chair, Rilis armrest 000-01128-01/02/03 Other upholstery than standard is ordered from Rini. The seat is not redressed, but new is shipped Installation 7.1.1 Wheels/trumpet gliders The wheels/trumpet gliders are being pressed down into the holes in the base, intended to keep the wheels/trumpet gliders. -
Page 16: Safety
7.1.4 Rilis armrest The chair is delivered with the arm rest mounted. For possible upgrading of existing chair, please contact Rini for information regarding installation. Safety The saddle chair should only be used as it is intended to as described in this guide. -
Page 17: Technical Specification
The Rini saddle chairs are mainly made from environmentally recyclable material. The products consist mainly of steel, stainless steel, aluminium, PVC and other plastics. Rini recommends that the material be sorted and recycled as much as possible in connection with the destruction of the products. -
Page 18: Warranty
Saddle chairs Warranty In agreement with Rini's general requirements and conditions, the warranty is valid for one year from purchase date. - Page 19 Rini Ergoteknik AB Fågelsångsvägen 3B SE-186 42 Vallentuna SWEDEN Phone +46 8 594 771 70 Fax + 46 8 92 92 79 info@rini.se www.rini.se...
