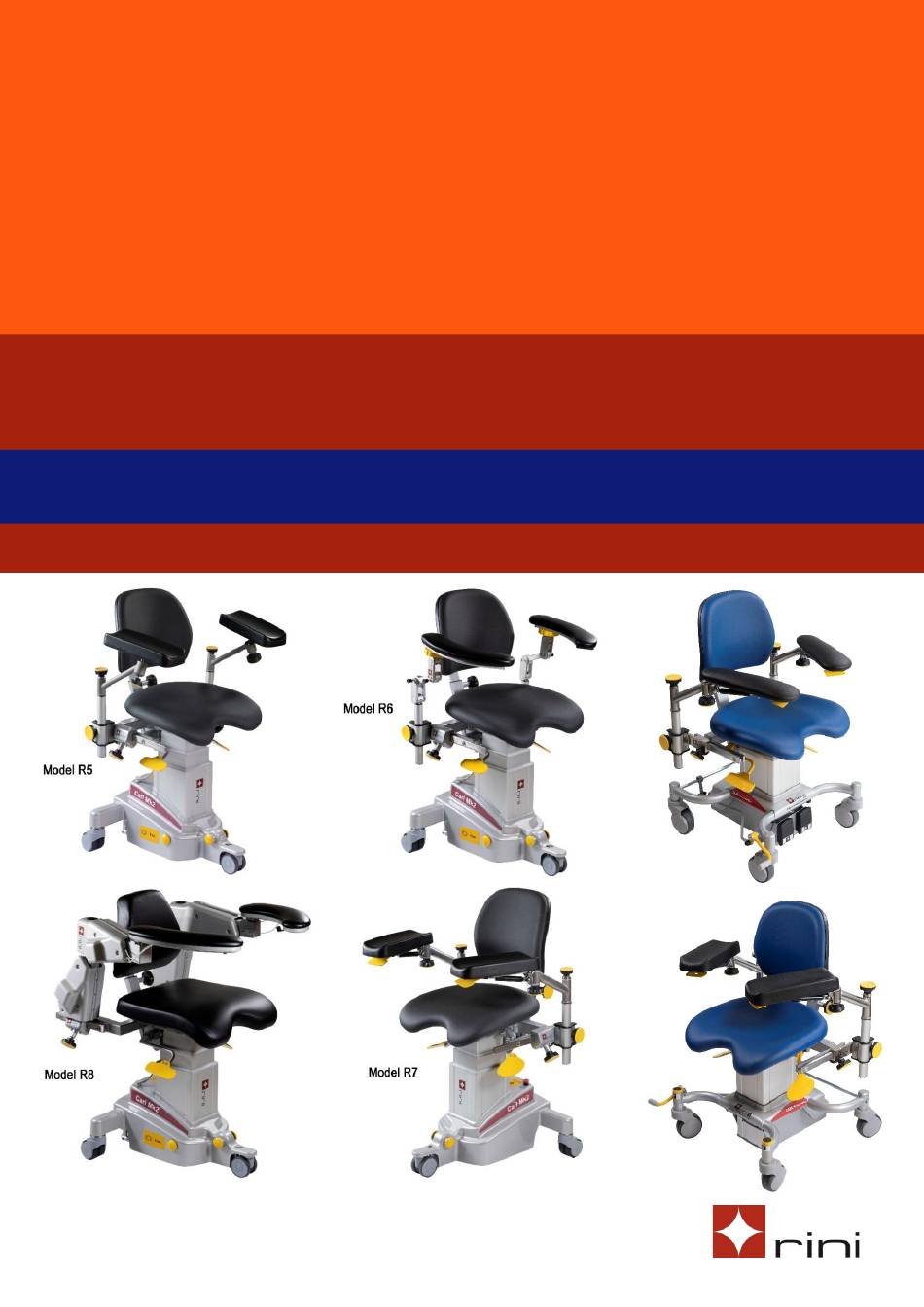

- Page 1 User Manual Surgeon chair Carl Mk2 and Carl 4 Foot/Heel - Model R5 – Easy - Model R6 – Rilis - Model R7 – OneGrip - Model R8 – FlexiDoc (Carl Mk2) 2011-0177 v2...
-
Page 2: Table Of Contents
Chair height adjustment ..............8 Seat angle adjustment ..............8 Backrest angle and height adjustment ........... 8 Model R5 - "Easy" armrest ............. 9 Model R6 - "Rilis" safety armrest ..........10 Model R7 - "OneGrip" armrest ............. 11 Model R8 - "FlexiDoc" armrest ............. 12 Battery operation and charging ............. -
Page 3: Surgeon Chair Carl Mk2

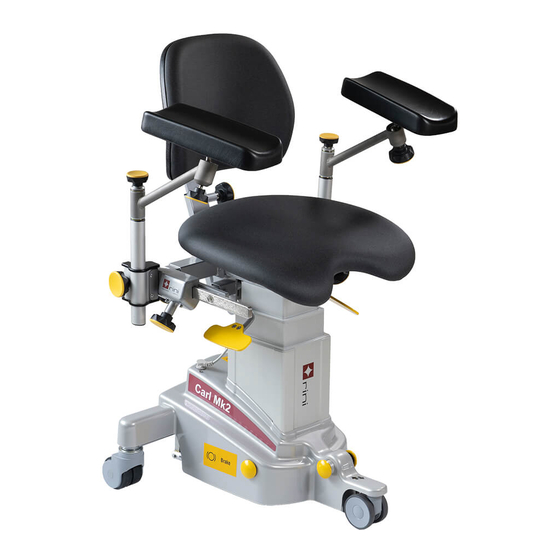

• Easy to clean with smooth surfaces and encapsulated details Carl Mk2 and Carl 4 Foot/Heel is the second generation of Rini's popular electrically adjustable surgeon chairs where lots of user feedback and new technologies have been combined. The goal has been to provide a quality chair with a small footprint, maximizing the area around the feet often where pedals and other product are placed. -
Page 4: Unpacking
This may cause damage. Make sure that the delivery includes all ordered parts. Contact your Rini sales representative if you find any discrepancies. 2.2 Installation When you get the surgeon chair delivered, it is not ready to be used. It must be mounted accordingly to this manual. -
Page 5: Intended Areas Of Use
• That the brake is working • That the battery is fully charged Please contact your local Rini representative if you have any questions or concerns. 2.3 Intended areas of use The surgeon chair Carl is developed for different types of microsurgeries where the surgeon needs a stable seated work position with flexible relief for the arms. -
Page 6: Product Identification Label
Surgeon chair Carl Mk2 and Carl 4 Foot/Heel Product identification label The label is located on the back of the chair and shows the product part number and its unique serial number. For questions about this product, always specify these numbers to facilitate identification. Label description Warning. -
Page 7: Basic Adjustments Of The Chair
Surgeon chair Carl Mk2 and Carl 4 Foot/Heel Basic adjustments of the chair Back height adjustment Shown is Carl Mk2 R6 with safety armrest ”Rilis” Seat angel Back angel adjustment adjustment Electrical brake Chair height for rear wheels adjustment Back height Shown is Carl 4 Foot R7 adjustment with armrest ”OneGrip”... -
Page 8: Chassis, Wheels And Electrical Brake
Surgeon chair Carl Mk2 and Carl 4 Foot/Heel 4.1 Chassis, wheels and brake The chassis design with 3 wheels (Carl Mk2) combines stability with high availability of technical equipment such as pedals on the floor around the chair. The chair can also be equipped with a separate pedal stand as an accessory. -
Page 9: Model R5 - "Easy" Armrest
Basic adjustment of width of armrests (Model R5, R6, R7) 4.5 Model R5 - "Easy" armrest Rinis "Easy" armrest have square cup shaped plates that are able to be set in all possible angles. 5. Knob for adjusting the armrest plate in 360°... -
Page 10: Model R6 - "Rilis" Safety Armrest
Surgeon chair Carl Mk2 and Carl 4 Foot/Heel Setting 1 (Basic setting) Move the position of the armrest by loosening the knob and sliding the armrests. Setting 2 (Basic setting) The width between the armrests can be adjusted by loosening the knob under the seat. -
Page 11: Model R7 - "Onegrip" Armrest
Surgeon chair Carl Mk2 and Carl 4 Foot/Heel Setting 2 (Basic setting) The height of the entire armrest can be adjusted so it is in the center of the work area for subsequent fine tuning. Use the knob to set the appropriate armrest height. -
Page 12: Model R8 - "Flexidoc" Armrest
Surgeon chair Carl Mk2 and Carl 4 Foot/Heel Setting 1 (Basic setting) Move the position of the armrest by loosening the knob and sliding the armrests. Setting 2 (Basic setting) The height of the entire armrest can be adjusted so it is in the center of the work area for subsequent fine tuning. -
Page 13: Battery Operation And Charging
At low battery level it is possible to use the chair with the charger connected but it is not recommended. A new battery module is ordered from Rini and is easy to replace. Only the dedicated charger for Carl chair must be used. -
Page 14: Disinfection, Cleaning And Repairs
Water Use damp cloth Repairs The product should only be repaired by Rini or a Rini authorised service centre. Product to be repaired under warranty must be sent to Rini factory or an authorised Rini service centre. Unauthorized repairs and modifications may result in loss of function and void warranty. -
Page 15: Technical Data
700 to 1060hPa Disposal and recycling The product is mainly made from environmentally recyclable materials as steel, stainless steel, aluminum and plastics. Rini recommends that the material be sorted and recycled in connection with the destruction of the product. Electronic parts and cables shall be handled as electronic waste in accordance with local requirements. - Page 16 Rini Ergoteknik AB Fågelsångsvägen 3B SE-186 42 Vallentuna Sweden Phone +46 8 59477170 Email info@rini.se www.rinicompany.com...
