PRODUCT OVERVIEW

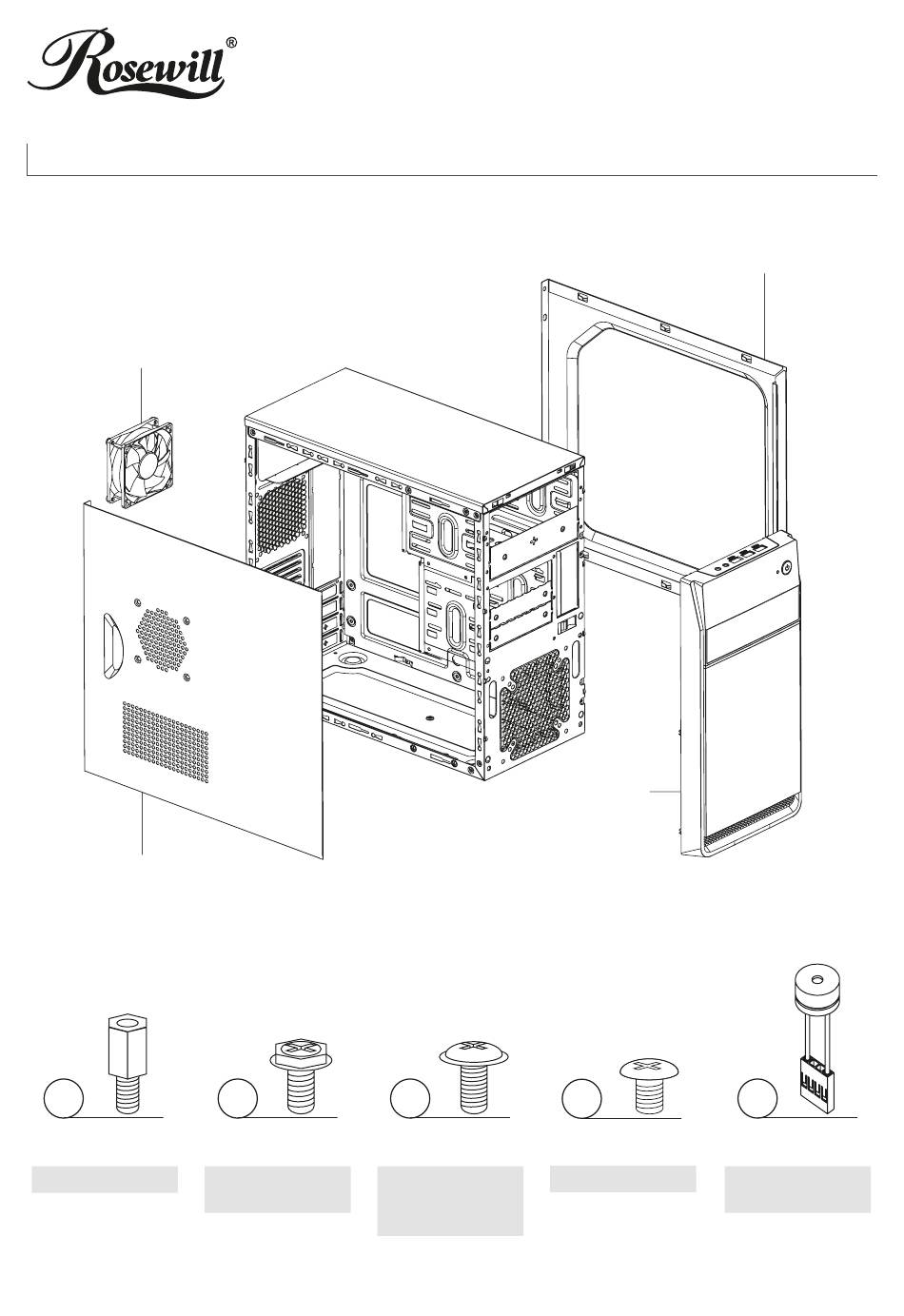

Disassembly Chart (components vary by country)
80 mm Fan
Left Side Panel
Accessory Kit
x8
M/B Standoff
Motherboard
Please read the instruction manual before use and retain for future reference.
x6
x16
Screw-A
PSU
Motherboard
GPU
2.5" SSD/HDD
Thank you for purchasing a Rosewill Case.
Front Panel
Screw-B
5.25"Device
1
Right Side Panel
x8
Screw-C
3.5" HDD
Motherboard
SCM-01B
x1
Buzzer
Alarm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCM-01B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rosewill SCM-01B

Summary of Contents for Rosewill SCM-01B

  • Page 1 SCM-01B Thank you for purchasing a Rosewill Case. Please read the instruction manual before use and retain for future reference. PRODUCT OVERVIEW Disassembly Chart (components vary by country) Right Side Panel 80 mm Fan Front Panel Left Side Panel Accessory Kit...

  • Page 2: Open The Unit

    INSTALLATION GUIDE 1. Open the Unit 1-1. Remove the thumb screws and slide out panels R and L (Figure 1). 2. Install the Power Supply 2-1. Set the power supply unit (PSU) on the top-rear of the case and secure with Screw-A (Figure 2).

  • Page 3: Install The Motherboard

    3. Install the Motherboard 3-1. Line up the standoffs with the screw holes on the motherboard (Figure 3a). 3-2. Screw the motherboard down with Screw-B (Figure 3b). 4. Install the Add-on Card 4-1. Remove the slot cover (Figure 4a).
  • Page 4 4-2. Install the add-on card and secure with the Screw-A (Figure 4b). 5. Install an External 5.25” Device 5-1. Pull to remove the front panel (Figure 5a).
  • Page 5 5-2. Insert the 5.25” drive and secure with Screw-B (Figure 5b). 5-3. Remove the slot cover on the front panel and put it back onto the case (Figure 5c).

  • Page 6: Install A 3.5" Or 2.5" Drive

    6. Install a 3.5” or 2.5” Drive 6-1. 3.5” Drives: Insert 3.5” drives into the cage and secure with Screw-C (Figure 6a). 6-2. 2.5” Drives: Secure 2.5” SSD/HDD with Screw-B (Figure 6b).

  • Page 7: Usb 3.0 Connector

    7. Care To prevent damage, it is recommended to keep all panels closed and secured. 7-1. Slide the side panels back into place and secure with thumb screws (Figure 7) . I/O PIN-OUT USB 3.0 CONNECTOR USB 2.0 CONNECTOR HD Audio CONNECTOR I/O DIAGRAM SPK MIC USB3.0...

  • Page 8: Specifications Table

    1 x Front (optional) Physical Specifications Dimensions 6.69” x 13.78” x 14.96” (W x H x D) Weight 6.5 lb Technical Support Information techsupport@rosewill.com 1-800-575-9885 Please register your product at www.rosewill.com for complete warranty information and support for your product. SCM-01B_A...
