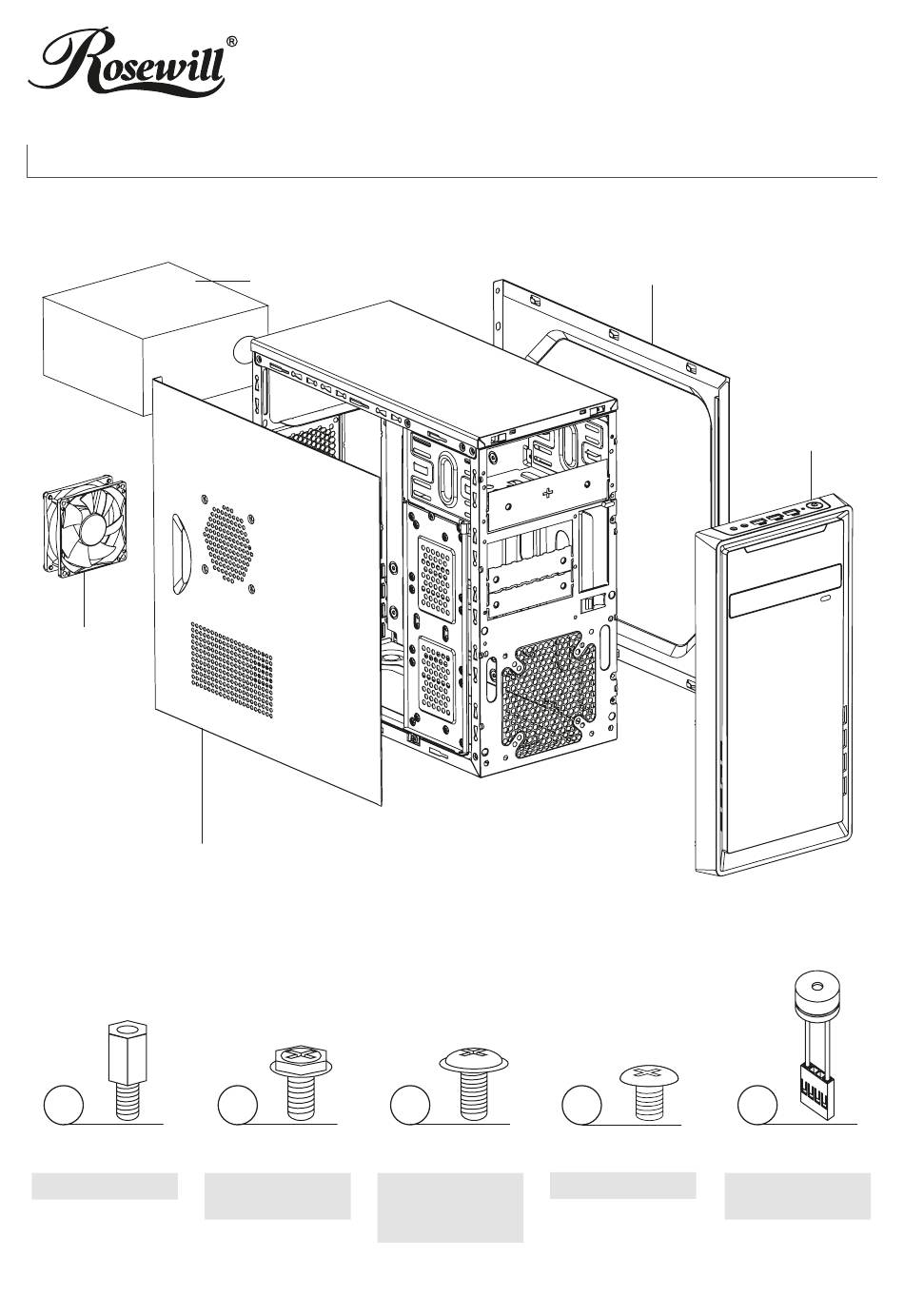

PRODUCT OVERVIEW
Disassembly (components vary by country)
80 mm Fan
Panel L
Accessory Kit
x8
M/B Standoff
Motherboard
Please read the instruction manual before use and retain for future reference.
450W PSU
x6
x16
Screw-A
PSU
Motherboard
GPU
2.5" SSD/HDD
Thank you for purchasing a Rosewill Case.
Screw-B
5.25"Device
1
SRM-01B-450
Panel R
x8
Screw-C
3.5" HDD
Front Panel
x1
Buzzer
Motherboard
Alarm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRM-01B-450 and is the answer not in the manual?

Questions and answers

Related Manuals for Rosewill SRM-01B-450

Summary of Contents for Rosewill SRM-01B-450

  • Page 1 SRM-01B-450 Thank you for purchasing a Rosewill Case. Please read the instruction manual before use and retain for future reference. PRODUCT OVERVIEW Disassembly (components vary by country) Panel R 450W PSU Front Panel 80 mm Fan Panel L Accessory Kit...

  • Page 2: Open The Unit

    INSTALLATION GUIDE 1. Open the Unit 1-1. Untwist the thumb screws and slide out panels Rand L (Figure 1). 2. Install Motherboard 2-1. Unscrew to release the HDD panel (Figure 2a). 2-2. Line up the standoffs with the screw holes on the motherboard (Figure 2b).
  • Page 3 2-3. Screw the motherboard down with Screw-B (Figure 2c) .

  • Page 4: Install Add-On Card

    3. Install Add-on Card 3-1. Unscrew to release the HDD panel (Figure 3a). 3-2. Install the add-in card and secure with the screws (Figure 3b).
  • Page 5 4. Install a 5.25" Drive 4-1. Pull the front panel out and remove it (Figure 4a). 4-2. Insert the 5.25" drive and secure with screws (Figure 4b). 4-3. Install the front panel back onto the case (Figure 4c).

  • Page 6: Install A 3.5" Or 2.5" Drive

    5. Install a 3.5" or 2.5" Drive 5-1. Unscrew to release the HDD panel (Figure 5a). 5-2. Secure a 3.5" HDD/2.5" SSD onto the panel and with screws, and then screw the panel back on (Figure 5b).

  • Page 7: Usb 3.0 Connector

    6. Care To prevent damage, it is recommended that all panels remain closed and secured. 6-1. Slide the side panels back into place and secure with thumbscrews (Figure 6). I/O PIN-OUT USB 3.0 CONNECTOR USB 2.0 CONNECTOR HD Audio CONNECTOR I/O DIAGRAM Power Button...

  • Page 8: Specifications Table

    1 x Front (optional) Physical Specs Dimensions 6.69" x 13.78" x 14.96" (W x H x D) Weight 9.15 lb Technical Support Information techsupport@rosewill.com 1-800-575-9885 Please register your product at www.rosewill.com for complete warranty information and support for your product. SRM-01B-450_A...
