PEERLESS MIS488 Installation And Assembly

Pole pc mount

Installation and Assembly:

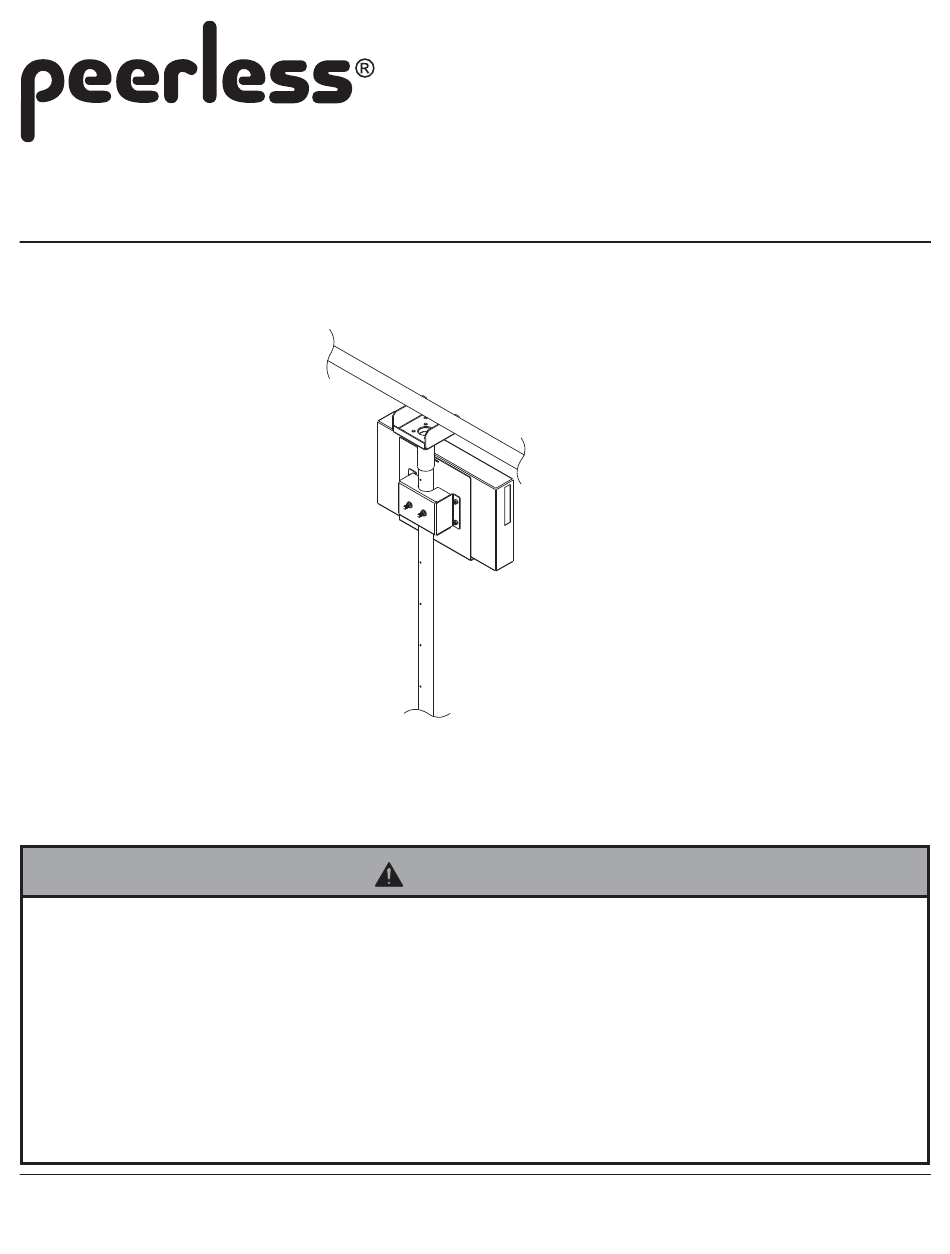

Pole PC Mount

Model: MIS488

Note: Read entire instruction sheet before you start installation and assembly.

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please

call Peerless customer care at 1-800-729-0307.

• This product should only be installed by a qualified professional.

• Make sure that the wall will safely support the combined load of the equipment and all attached hardware and compo-

nents.

• Never exceed the Maximum Load Capacity of 25 lb (11.3 kg).

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screws firmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding

power.

2300 White Oak Circle. • Aurora, IL 60502 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com

WARNING

Max Load Capacity: 25 lb (11.3 kg)

ISSUED: 11-19-07 SHEET #: 124-9135-2 01-06-11

Table of Contents

Need help?

Do you have a question about the MIS488 and is the answer not in the manual?

Page 1 Note: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call Peerless customer care at 1-800-729-0307.
Page 2 Note: Read instruction sheet before you start installation and assembly. Parts List Description Qty. Part # 3/8-16 hex nut 530-9310 washer 540-9407 PC bracket 124-T1133 3/8-16 x 3.25" u-bolt 560-1060 1/4-20 nylock nut 530-9413 PC mounting bracket 124-T1134 bumper 590-1159 1/4-20 x 5/8"...
Page 3 WARNING • Installer must verify that the supporting surface will safely support the combined weight of all attached equipment and hardware. Attach PC mounting bracket (U) to existing pole Attach six bumper strips (W) to PC bracket (Q). using four washers (N) and four hex nuts (I). EXISTING POLE Attach PC bracket (Q) to PC mounting bracket (U) using four 1/4-20 nylock nuts (T) and four 1/4-20 x 5/8"...
Page 4 BELT WITHOUT CINCH BUCKLE BELT GUIDE TRI-BAR BELT CLIP 4 of 4 ISSUED: 11-19-07 SHEET #: 124-9135-2 01-06-11 © 2011, Peerless Industries, Inc. All rights reserved. All other brand and product names are trademarks or registered trademarks of their respective owners.
