Installation and Assembly:

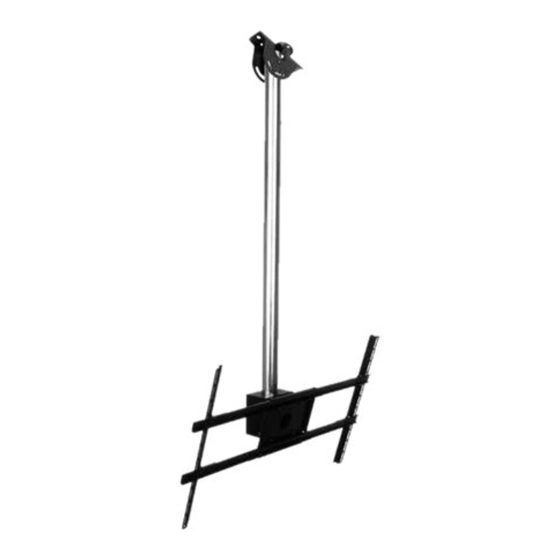

Modular Flat Panel Mount Kit for 32" - 60" (81 - 152cm)
LCD or Plasma screens
Model: MOD-FPSKIT150
•
Cathedral ceiling plate with ±60° tilt
•
1475mm distance from ceiling to centre of screen
•
1500mm extension pole, cuttable to desired length
•
-5° to +20° tilt, lockable at 5° increments
•
360° rotation
•
Security screws provided
•
Universal screen adaptor fits mounting patterns up to 700 x 400mm
•
Landscape or portrait orientation
Visit Peerless at www.peerless-av.co.uk
For Technical Support call +44 (0)1923 200 100
Max. Load Capacity: 60kg (132lbs)
MOD-FPSKIT150 ISSUED 10-04-15 REV5
Advertisement
Related Manuals for PEERLESS MOD-FPSKIT150
Summary of Contents for PEERLESS MOD-FPSKIT150
- Page 1 -5° to +20° tilt, lockable at 5° increments • 360° rotation • Security screws provided • Universal screen adaptor fits mounting patterns up to 700 x 400mm • Landscape or portrait orientation Visit Peerless at www.peerless-av.co.uk Max. Load Capacity: 60kg (132lbs) For Technical Support call +44 (0)1923 200 100 MOD-FPSKIT150 ISSUED 10-04-15 REV5...
- Page 2 Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Manual. If you have any questions regarding any of the instructions or warnings, please contact Peerless using the information on the back of this manual.
- Page 3 Distance should be equidistant. Move vertical adaptor brackets (M) to adjust. Install in landscape or portrait orientation Tighten all screws Visit Peerless at www.peerless-av.co.uk Page 3 of 4 For Technical Support call +44 (0)1923 200 100 MOD-FPSKIT150 ISSUED 10-04-15 REV5...
- Page 4 Email: info@peerless-av.eu.com Fax: 1 708 865 2941 Web: www.peerless-av.co.uk Web: www.peerless-av.eu.com Web: www.peerlessmounts.com BBG Distribution Ltd, trading as Peerless-AV UK BBG Distribution Ltd, trading as Peerless-AV Europe For Technical Support call +44 (0)1923 200 100 MOD-FPSKIT150 ISSUED 10-04-15 REV5...
