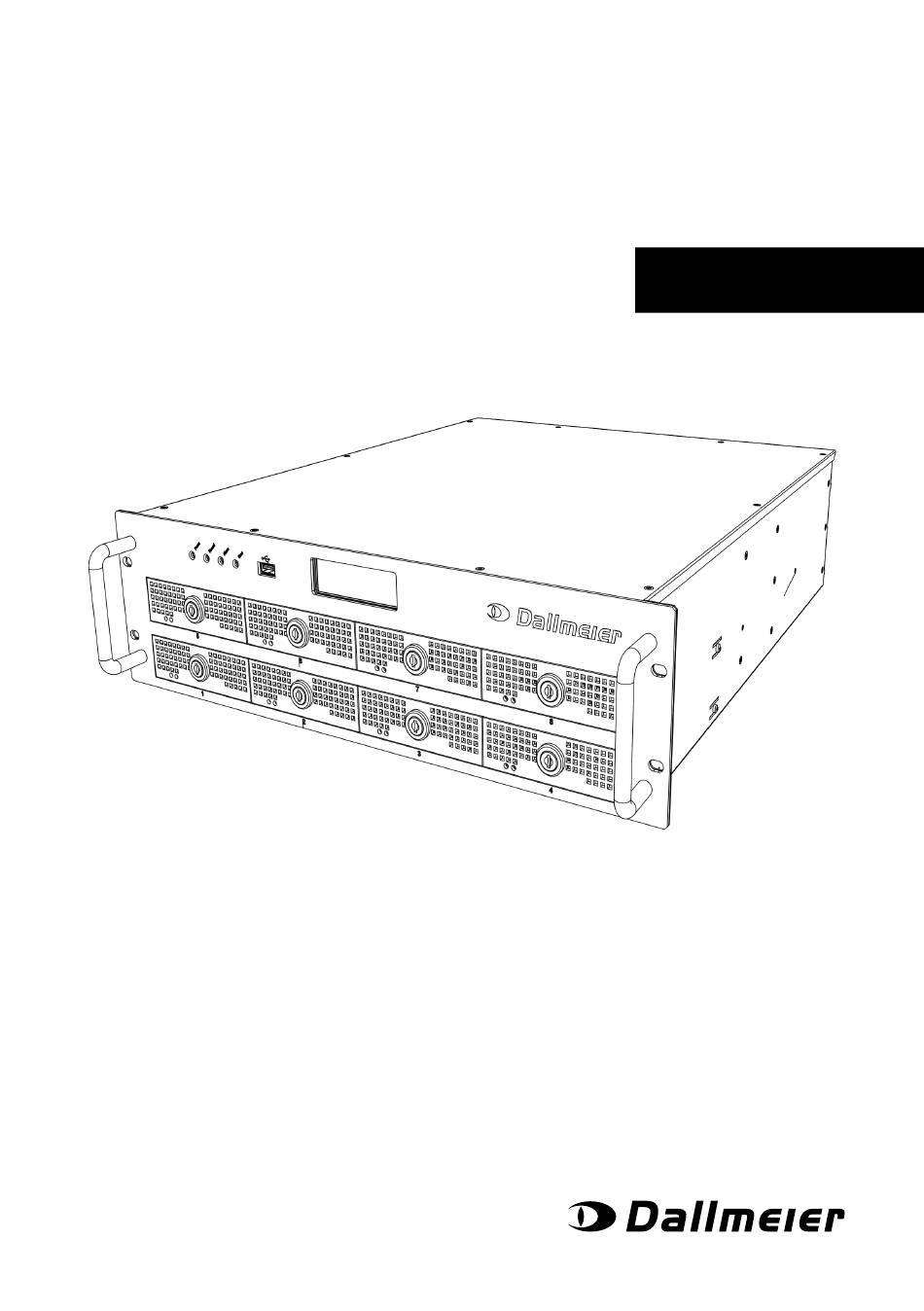

  • Page 1 IPS 10 000 COMMISSIONING 008290 | REV. 2.0.0 | 2021-02-18...
  • Page 2 All trademarks identified by ® are registered trademarks of Dallmeier. Third-party trademarks are named for information purposes only. Dallmeier respects the intellectual property of third parties and always attempts to ensure the complete identification of third-party trademarks and indication of the respective holder of rights.
  • Page 3 2× 2× 2× 1× 6× 32× COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...
  • Page 4 COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...

  • Page 5: Table Of Contents

    8 Rack Installation Dimensions Preparation Installation 9 HDD Installation 10 Display 11 Connections 12 Commissioning and Remote Login Commissioning Remote Login 13 Specifications 14 Maintenance, Testing and Cleaning COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...

  • Page 6: Validity

    This document is valid for the SeMSy® Appliance IPS 10 000. For simplicity, the term “appliance” or “recorder” is occasionally used in the following. Illustrations in this document may differ from the actual product. COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...

  • Page 7: Documents

    The target audience of this document is trained system integrators. Other Applicable Documents Specification The document “Specification” contains detailed technical data, features and characteristics of the device. The target audience of the document is trained system integrators. COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...
  • Page 8 The document “Configuration - SeMSy® Recording Server” contains detailed descriptions for the configuration of the pre-installed recording software SeMSy® Recording Server. The target group of the document are trained system integrators (installers of video security systems). COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...

  • Page 9: Typographical Conventions

    ATTENTION is used to indicate practices that do not present a risk of per- sonal injury and identifies actions to prevent equipment and/or property damage due to improper setup, mounting, wiring, operation, configura- tion, or maintenance of the equipment. COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...
  • Page 10 (menu items, buttons, etc.). Paragraphs in italics provide information on basics, specifics, and effi- cient procedures, as well as general recommendations. COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...

  • Page 11: Approvals/Certifications

    Note possible updates at www.dallmeier.com. COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...

  • Page 12: Safety Instructions

    Do not modify the hardware or software in a way that has not been test- ed and approved by Dallmeier. Inappropriate modifications may cause malfunctions, damages and data loss and may result in the loss of warranty. COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...
  • Page 13 DIN, VDE and ISO standards and which provide for a standard-compliant lightning protection equipotential bonding, are mandatory and must be fulfilled by all means. COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...
  • Page 14 Inform your responsible sales partner. • Opening the device The device may only be opened by trained personnel and in a de-ener- gized state for commissioning, testing, maintenance and repair. COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...
  • Page 15 Disconnect the mains voltage to the device (e.g. by switching off the circuit breaker associated with the circuit). Remove all connected devices. Return the device to your responsible sales partner. COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...

  • Page 16: General Notes

    30 fps. The integrated RAID 6 storage system already pro- vides a high storage capacity and can be expanded by an external RAID 6 JBOD system. COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...

  • Page 17: Requirements

    ➡ Keep the doors of the rack closed in order to ensure a sufficient air circu- lation. Secure Earthing ➡ Ensure anytime a proper grounding, preferably through a direct ground- ing of the rack. COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...

  • Page 18: Power Supply

    The plug of the supply line serves as a separator from the supply circuit. ➡ Use an outlet installed close to the device. ➡ Make sure the outlet is easily accessible. COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...

  • Page 19: Earthing

    ➡ Observe the locally applicable regulations (regional and country-spe- cific legal regulations and standards) with regard to the prescribed minimum cross-sections of the grounding cables used. COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...
  • Page 20 ➡ Observe the locally applicable regulations (regional and country-specific legal regulations and standards) with regard to the prescribed minimum conductor cross-sections for the electrical supply line (mains connection cable). COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...

  • Page 21: Rack Installation

    442 mm 533 mm 133 mm 483 mm Fig. 1-1 645 mm 40 mm 445 mm 22 mm 43 mm 35 mm 32 mm 50 mm Fig. 1-2 COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...

  • Page 22: Preparation

    ➡ Align the guide of the mounting rails to the rear side. ➡ Align the mounting rails according to the depth of the rack. ➡ Fasten the mounting rails to the rack. COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...

  • Page 23: Installation

    ❸ Installation Fig. 1-5 ➡ Mount the 19’’ brackets on the rear side of the rack. ➡ Make sure that the guides are facing the inside. COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...
  • Page 24 ➡ Push the device completely into the rack. ➡ Ensure min. 10 cm free space at the front and rear. ➡ Mount the device on the front side of the rack. COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...

  • Page 25: Hdd Installation

    ➡ Unlock the HDD tray with the key. ➡ Carefully pull the HDD tray out of the bay. ➡ Remove the cover plate mounted in the HDD tray. COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...
  • Page 26 ➡ Make sure that the connectors of the HDD are positioned at the back of the HDD slot. ➡ Make sure that the HDD and HDD tray are flush at the back. COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...
  • Page 27 ❸ Fig. 1-9 ➡ Mount the HDD tray on the HDD with 4 screws. COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...
  • Page 28 ➡ Carefully slide the HDD tray into the housing. ❺ Fig. 1-10 ➡ Make sure that the HDD slot and the housing are flush. ➡ Lock the HDD tray with the key. COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...
  • Page 29 ➡ Follow the instructions given in the dialogs. ➡ Observe the corresponding “Configuration” documentation. ➡ Load the “Default system parameters” as the first step of the config- uration. COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...

  • Page 30: Display

    Indicates malfunctions, e.g. camera failure or hard disk error. USB socket USB 2.0, Type A Display Displays information and status messages. Serial and version number are shown alternately by the display. COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...
  • Page 31 Power supply unit is active and OK Power supply unit is defective / switched off Power supply fan is defective Power supply unit is not installed Fig. 1-14 COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...

  • Page 32: Connections

    Sourround Out 3,5 mm phone jack Ethernet 1 Green Line Out RJ45, 10/100/1000 Mbps 3,5 mm phone jack Mic In USB Interface (USB 3.1 Gen. 2 type A) 3,5 mm phone jack COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...
  • Page 33 Kontakt IN (E) Weidmueller, 6 Pins Assignment Function Contact 3 Configurable event Contact 4 Configurable event Contact 1 Configurable event Contact 2 Configurable event No function No function COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...

  • Page 34: Commissioning And Remote Login

    ➡ Refer to the “Operation” documentation for PService3. ➡ Select the device from the scanner list. ➡ Start the NetConfig3 function via the context menu. The connection is established, device information is displayed. COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...
  • Page 35 The configuration interface is displayed. Fig. 1-18 If the Slow Network check box is selected, the configuration interface is compressed before transmission for narrowband connections. ➡ Refer to the corresponding “Configuration” documentation. COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...

  • Page 36: Specifications

    4 functions each Relay OUT 4×, with galvanic isolation, max. 12 V DC / 24 V AC / 0.5 A, 150 mOhm, as NC or NO SATA interface RAID controller board for JBOD storage extension (optional) COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...
  • Page 37 + 5°C up to +40°C (41°F − 104°F) Recommended temperature +20°C up to + 25°C (68°F − 77°F) Humidity 5 − 70% RH, non-condensing Atmospheric load Dust-free Approvals and Certifications Type CE, FCC, RCM, UL, LGC Forensics COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...

  • Page 38: Maintenance, Testing And Cleaning

    ➡ Clean the outside of the housing with a clean, soft and dry cloth. • Do not use any cleaning agents. • Do not use microfiber cleaning cloths. • Avoid strong rubbing. COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...
  • Page 39 ➡ Open System > Service > Settings. ➡ Activate the check-box for the relevant power supply. COMMISSIONING – IPS 10 000 | REV. 2.0.0 | © 2021 Dallmeier...
  • Page 40 HEADQUARTERS Dallmeier electronic GmbH & Co.KG Bahnhofstr. 16 93047 Regensburg Germany +49 941 8700-0 +49 941 8700-180 mail info@dallmeier.com www.dallmeier.com...
