5. Terminal Connection Method
Please pay extra attention to the wiring. Incorrect connection will damage the power supply.
· When connecting input and output wiring, and CN1, input AC-Line should be off.
· Input wiring and output wiring shall be separated to improve noise sensibility.
· The protective earth (PE) must be connected to the
· Remote ON/OFF control lines shall be twisted or used shielded wires. Separate from load line.
· Output current of each terminal screw shall be less than 40A for HWS300P. And shall be less than 60A for HWS600P.

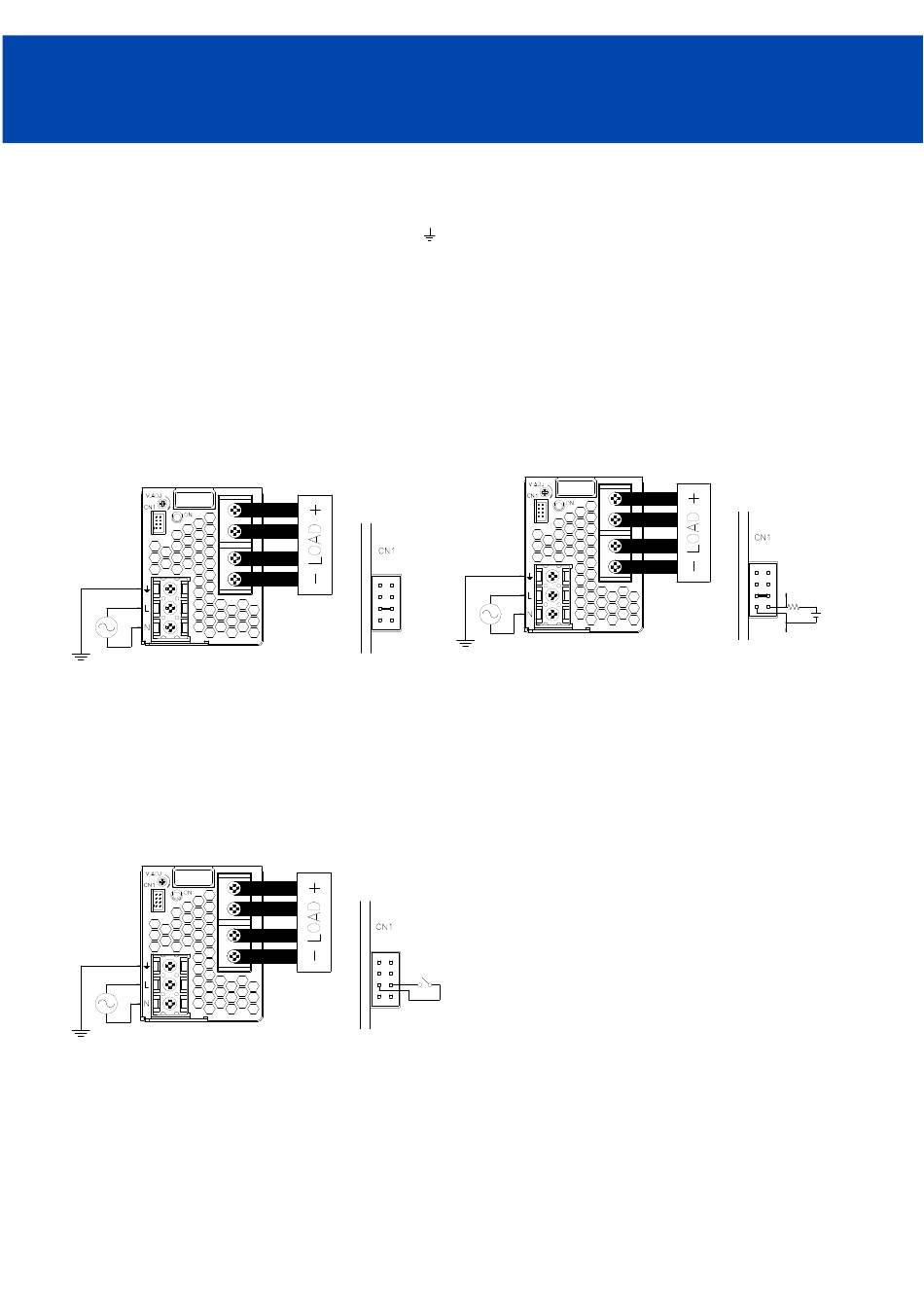

HWS300P Panel Side (Common HWS600P)
・Basic connection
Connect "CNT" terminal to "TOG" terminal
with the attached connector.
・Remote ON/OFF control required
"TOG" terminal is ground for "CNT" terminal.
Connect an outside signal between CNT-TOG.
- 8 - 17
terminal or chassis.
・PF signal output required
Open collector method shown below shall be used.
"TOG" terminal is ground for "PF" terminal.
- 8-
TDK-Lambda
HWS300P-600P Series
INSTRUCTION MANUAL
PF
Signal output
Signal ground
