BEFORE USING THE POWER SUPPLY UNIT
Be sure to read this instruction manual thoroughly before using this product. Pay attention to all cautions and warnings before using this
product. Incorrect usage could lead to an electrical shock, damage to the unit or a fire hazard.
DANGER
Never use this product in locations where flammable gas or ignitable substances are present.
INSTALLATION WARNING
When installing, ensure that work is done in accordance with the instruction manual. When installation is improper, there is risk of
electric shock and fire.
Installation shall be done by Service personnel with necessary and appropriate technical training and experience. There is a risk of
electric shock and fire.
Do not cover the product with cloth or paper etc. Do not place anything flammable around. This might cause damage, electric shock
or fire.
WARNING on USE
Do not touch this product or its internal components while circuit in operation, or shortly after shutdown. You may receive a burn.
While this product is operating, keep your hands and face away from it as you may be injured by an unexpected situation.
For products with no cover, do not touch them as there are high-voltage and high temperature parts inside. Touching them might
cause injury such as electric shock or burn.
There are cases where high voltage charge remains inside the product immediately after the input is cut off. Therefore, do not touch
even if they are not in operation as you might get injured due to high voltage and high temperature. You might also get electric shock
or burn.
Do not make unauthorized changes to this product nor remove the cover as you might get an electric shock or might damage the
product. We will not be held responsible after the product has been modified, changed or dis-assembled.
Do not use this product under unusual condition such as emission of smoke or abnormal smell and sound etc. Please stop using it
immediately and shut off the product. It might lead to fire and electric shock. In such cases, please contact us. Do not attempt repair
by yourself, as it is dangerous for the user.
Do not operate and store these products in environments where condensation occurs due to moisture and humidity. It might lead fire
and electric shock.
Do not drop or apply shock to this product. It might cause failure. Do not operate these products mechanical stress is applied.
When necessary, this products is to be repaired only by us or our authorized agents. It is important that this product cannot be used in
hazardous environments (facilities such as nuclear power control system or life support equipment) without our written consent.
CAUTION on MOUNTING
Confirm connections to input/output terminals are correct as indicated in the instruction manual before switching on.
Input voltage, Output current, Output power, ambient temperature and ambient humidity should be kept within specifications,
otherwise the product will be damaged.
Input line, please use the wires as short and thick as possible.
Do not use this product in special environment with strong electromagnetic field, corrosive gas or conductive substances and direct
sunlight, or places where product is exposed to water or rain.
Mount this product properly in accordance with the instruction manual, mounting direction and shall be properly ventilated.
Please shut down the input when connecting input and output of the product.
When installing in environment where conductive foreign, dust and liquid may be present, please consider penetration of above
foreign material in the power supply by installing filter, to prevent trouble or malfunction.

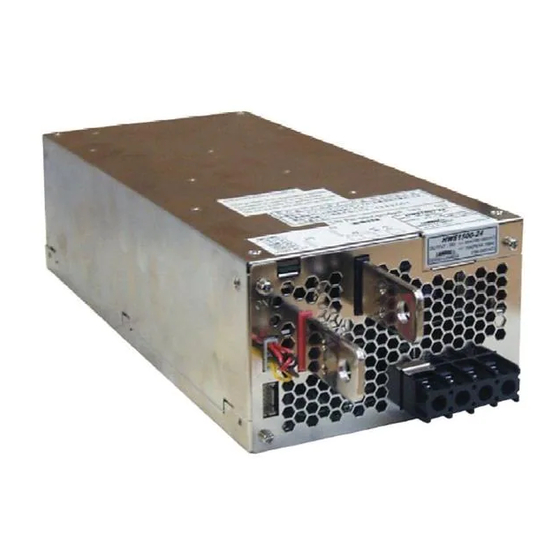

HWS 1800T Series
Instruction Manual
-1-
TDK-Lambda
HWS1800T Series
INSTRUCTION MANUAL
DA033-04-01H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HWS 1800T Series and is the answer not in the manual?

Questions and answers

Summary of Contents for TDK-Lambda HWS 1800T Series

  • Page 1 TDK-Lambda HWS1800T Series INSTRUCTION MANUAL HWS 1800T Series Instruction Manual BEFORE USING THE POWER SUPPLY UNIT Be sure to read this instruction manual thoroughly before using this product. Pay attention to all cautions and warnings before using this product. Incorrect usage could lead to an electrical shock, damage to the unit or a fire hazard.
  • Page 2: Caution On Use

    TDK-Lambda HWS1800T Series INSTRUCTION MANUAL CAUTION on USE Product individual notes are shown in the instruction manual. If there is any difference with common notes individual notes shall ・ have priority. Before using this product, be sure to read the catalog and instruction manual. There is risk of electric shock or damage to the product ・...
  • Page 3 TDK-Lambda HWS1800T Series INSTRUCTION MANUAL Note ・ Take note that traces of sheet metal processing be left in our power supplies. ・ When disposing product, follow disposal laws of each municipality. Published EMI (CE, RE) or immunity is the result when measured in our standard measurement conditions and might not satisfy ・...
  • Page 4 TDK-Lambda HWS1800T Series INSTRUCTION MANUAL 1. Model name identification method (*1) HWS1800T-24 /□ / “No assigned”: Standard type /HD: High resistance against dust environment type. (Refer to the specifications for details.) Option (*1) Rated Output Voltage Output Power type Series name 2.
  • Page 5 TDK-Lambda HWS1800T Series INSTRUCTION MANUAL 2-2. CN01, CN02 Connector pin configuration and Function CN01, CN02 pin configuration and function are the same. They are connected to each other in this power supply unit. When the pin of CN01 side is shorted the same function pins of CN02 side are shorted.
  • Page 6 TDK-Lambda HWS1800T Series INSTRUCTION MANUAL 2-3. Basic Connection (Local sensing) ・3-7V model ・12-60V model ①Connect “+S” terminal to “+” terminal of output ①Connect “+S” terminal to “+V” terminal and “-S” and “-S” terminal to “-” terminal of output with terminal to “-V” terminal with sensing wires.
  • Page 7 TDK-Lambda HWS1800T Series INSTRUCTION MANUAL 2-4. Remote sensing required 2-5. Remote ON/OFF control required ①Connect “+S” terminal to “+” terminal of load with ①Remove standard attached connector, and use the harness sensing wire made by the customer and connect external signal to between CNT and TOG terminal.
  • Page 8 TDK-Lambda HWS1800T Series INSTRUCTION MANUAL 2-6. PF signal output required ①PF signal is an open collector output, therefore PF signal outputs are shown in circuit below. ②“TOG” terminal is ground for “PF” terminal. M8 Bolts and nuts for connecting to the load line...
  • Page 9: Block Diagram

    TDK-Lambda HWS1800T Series INSTRUCTION MANUAL 3. Block Diagram Output Input 170~265VAC Photo- Circuit coupler Sensing Circuit Circuit output Photo- Delay Voltage Circuit coupler Circuit Detection Output Photo- Sensing coupler Output Sensing Reference Standby voltage supply Photo- coupler Remote ON/OFF Control...
  • Page 10: Sequence Time Chart

    TDK-Lambda HWS1800T Series INSTRUCTION MANUAL 4. Sequence time chart Open Phase Input Voltage PF Signal Point OVP Point OCP Point OVP Point OCP Point (80% or les s) (*2) (105% or more) (Shut down) (*2) (105% or more) (Shut down)
  • Page 11 TDK-Lambda HWS1800T Series INSTRUCTION MANUAL 5. Functions and Precautions 5-1. Input Voltage Range Input voltage range is three phase 170 - 265VAC (47 - 63Hz). Input voltage, which is out of specification, may cause unit damage. Rated input voltage range fix during safety standard application is from 200V to 240VAC (50/60Hz).
  • Page 12 TDK-Lambda HWS1800T Series INSTRUCTION MANUAL 5-7. Remote Sensing (+S, -S terminal) Remote sensing function is provided to compensate for voltage drop across the wiring from the power supply output terminals to the load input terminals. Connect “+S” terminal to “+” terminal of the load and “-S” terminal to “-” terminal of the load with sensing wires.
  • Page 13 TDK-Lambda HWS1800T Series INSTRUCTION MANUAL 5-9. Output Ripple & Noise Maximum ripple & noise value in specifications is measured according to measurement circuit specified by JEITA-RC9131A. When Load lines are longer, ripple & noise becomes larger. In this case, electrolytic capacitor, film capacitor, etc.
  • Page 14 TDK-Lambda HWS1800T Series INSTRUCTION MANUAL 5-11. Parallel Operation Current balancing function is provided. Either of operations mode (A) or (B) is possible. (A)To Increase the Output Current Current balancing function activates by connecting PC-to-PC terminal and COM-to-COM terminal, and output current of each power supply is equivalently supplied to load.
  • Page 15 TDK-Lambda HWS1800T Series INSTRUCTION MANUAL 5-12. Isolation Test Isolation resistance between output and FG (chassis) shall be more than 100MW at 500VDC and between output and CNT・PF shall be more than 10MW at 100VDC. For safety operation, voltage setting of DC isolation tester must be done before the test.
  • Page 16: Connection Method

    TDK-Lambda HWS1800T Series INSTRUCTION MANUAL Output - FG (chassis) 500VAC 1min. (300mA) (60V model : 651VAC 1min (390mA) ) CNT TOG - -S Withstand ~ Voltage Tester Output - CNT・PF 100VAC 1min. (100mA) CNT TOG Withstand Voltage Tester ~ -...
  • Page 17 TDK-Lambda HWS1800T Series INSTRUCTION MANUAL Note: Only as for the model of 3V output, the output voltage is used from 30% to 120% at the PV voltage is from 1.5V to 6.0V Note: Only as for the model of 5-36V output, the output voltage is used from 20% to 120% at the PV voltage is from 1V to 6.0 V...
  • Page 18 TDK-Lambda HWS1800T Series INSTRUCTION MANUAL When output voltage is over rated value, please make sure that maximum output power is below rated value. Moreover, when output voltage is below rated value, please make sure that maximum output current is below rated value.
  • Page 19 TDK-Lambda HWS1800T Series INSTRUCTION MANUAL 5-15. Output peak Current For model with output peak current, please meet the following condition. Reduce peak current value according to output derating as section 6-1. The output is shut down by protection circuit when rated current and continuous peak output time (τ) exceeds rated value during usage.
  • Page 20: Mounting Directions

    TDK-Lambda HWS1800T Series INSTRUCTION MANUAL 6.Mounting Directions 6-1. Output Derating Mounting directions are as follows. Standard mounting method is (A). Methods (B), (C) and (D) are also possible. Mounting methods besides (A),(B),(C) and (D) (example : (E) and (F)) are inhibit.
  • Page 21: Wiring Method

    Input terminal (M4 screw) : 1.27 N・m Output terminal (M8 Bolt & Nut) : 10.8N・m (7) Recommended wiring Noise Filter HWS1800T Circuit Protector + Load Input 3φ - Chassis of the equipment Recommended circuit protector : AC250V20A Recommended noise filter : RTEN-5020 (TDK-LAMBDA) -21-...
  • Page 22 TDK-Lambda HWS1800T Series INSTRUCTION MANUAL (8) M4 screw for output terminal might damage the terminal’s inner thread. This is mainly cause by the M4 screw’s unthread section. Therefore, please select a washer, spring washer, etc. to avoid unthread screw section from penetrating into output terminal inner section.
  • Page 23: Troubleshooting

    TDK-Lambda HWS1800T Series INSTRUCTION MANUAL 10. Troubleshooting Before concluding that the unit is at fault, make the following checks. (1) Check if the rated input voltage is apply. (2) Check if the wiring of input and output is correct. (3) Check if the I/O terminal connection is properly tighten by a regulated tightening torque.
