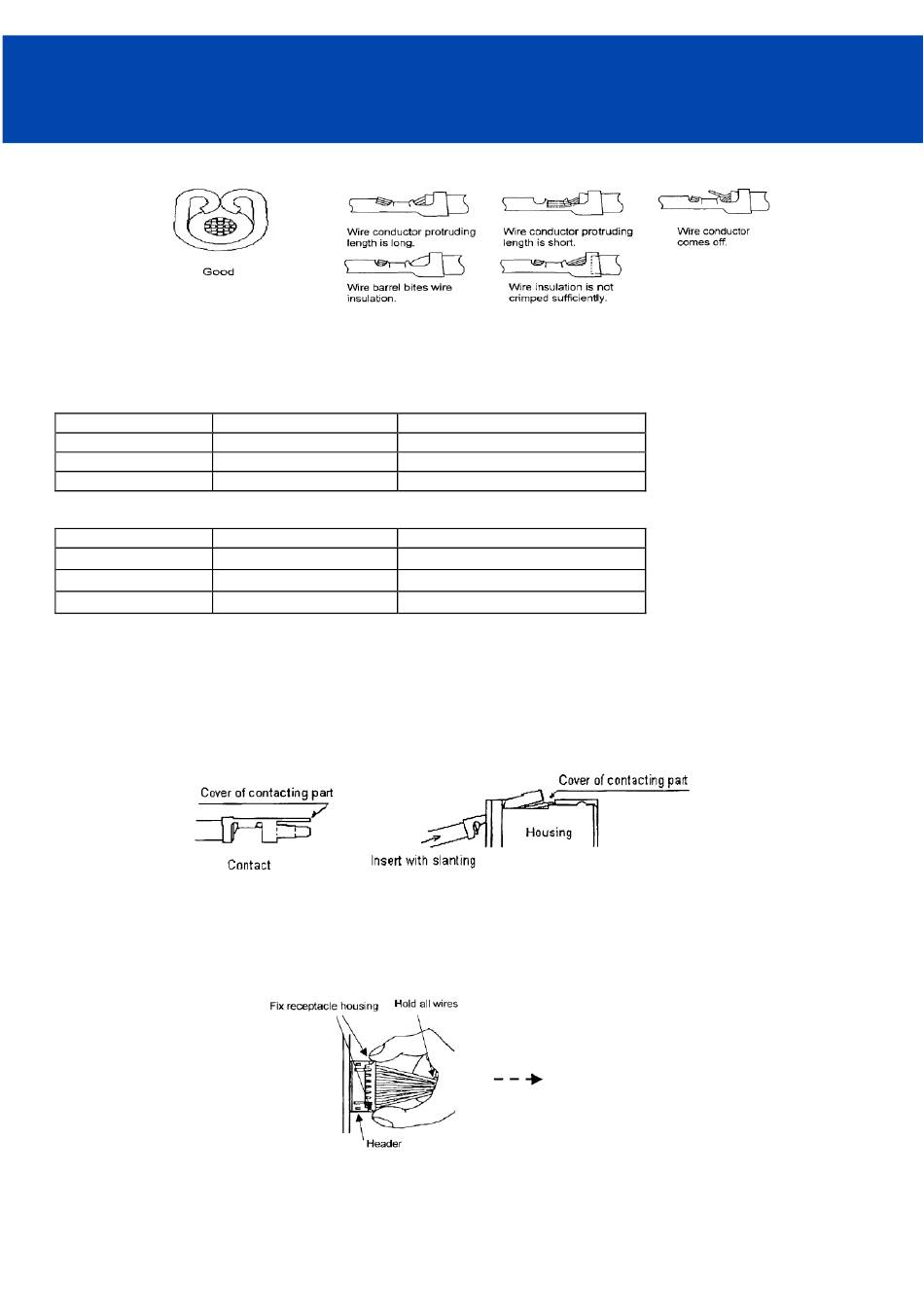

TDK-Lambda HWS300P Series Instruction Manual page 16

Fig.1
Check of crimping appearance visually for correct crimping as referring to above Fig.2
Check the tensile strength at crimped part when operation finishes.
Table of tensile strength at crimped part.
SPHD-001T-P0.5
Wire size
AWG#26
AWG#24
AWG#22
SPHD-002T-P0.5
Wire size
AWG#28
AWG#26
AWG#24
c). Inserting contact into housing
Inserting crimped contact into housing
(1) Do not apply any pulling force to crimped part, and insert contact parallel to housing.
(2) Insert contact into housing without stopping to innermost.
(3) Check secure locking per each insertion by pulling wire softly in order to check that contact does not come off
housing. Besides, check whether there is the backlash in the direction of insertion axis.
Defect example of slating insertion
d). Mating and Unmating Connector
(1) Inserting connector
Hold receptacle housing securely and insert into header straight against to header post until click sounds.
(2) Unmating connector
Hold all wires securely and fix receptacle housing by fingers so as to pry, and then, withdraw it on the mating axis.
e). Routing of Wire
Routing wire so as not to apply external force to connector except force to such an extent that wire slightly buckles, considering
an enough length to route and fixing of wire.
- 16 - 17
Fig.2: Examples of defective crimping
Requirement N min.
20
30
40
Requirement N min.
15
20
30
Actual value N
39.2 ~ 45.1
68.6 ~ 74.5
92.1 ~ 96.0
Actual value N
27.0～34.3
44.1～48.0
66.6～71.5
- 16-
