Lan Setup - ITS Telecom EKSELANS IPC-S2 User Manual

•
MTU: Packet size.
•
DHCP Option Enable: Enables an optional DHCP.
•
DHCP Option60: By default 600831STB.
•
Blind Port: Assignment of a port with the WAN service. The default WAN connection for all
ports is in Router mode. If a new WAN connection is chosen in Bridge mode, a Router mode
port can be assigned/unassigned. Different WAN connections can be configured to offer
several services to users.
Note: all ports are defined by default in Router mode. If a connection is established in Bridge mode, the
chosen port will be disconnected from the WAN. The WAN connection will be shared with all ports
specified in router mode except those defined in Bridge mode.
It is necessary to select a connection type in the WAN connection configuration. And as mentioned
earlier, one of three modes can be selected: static, DHCP and PPPoE depending on the application.

LAN Setup

This menu enables the configuration of the IP services of the LAN network, such as the DHCP.
The IPCs are preconfigured in router mode, to use private IP addresses in the section of the LAN, and
to act as a DHCP server. The default configuration of the LAN router is:
•
IP LAN: 192.168.10.1
•
Subnet Mask: 255.255.255.0
These addresses are part of the range of private addresses for use in private networks and are available
for most applications. If the network on which the IPC will be installed requires a different IP address

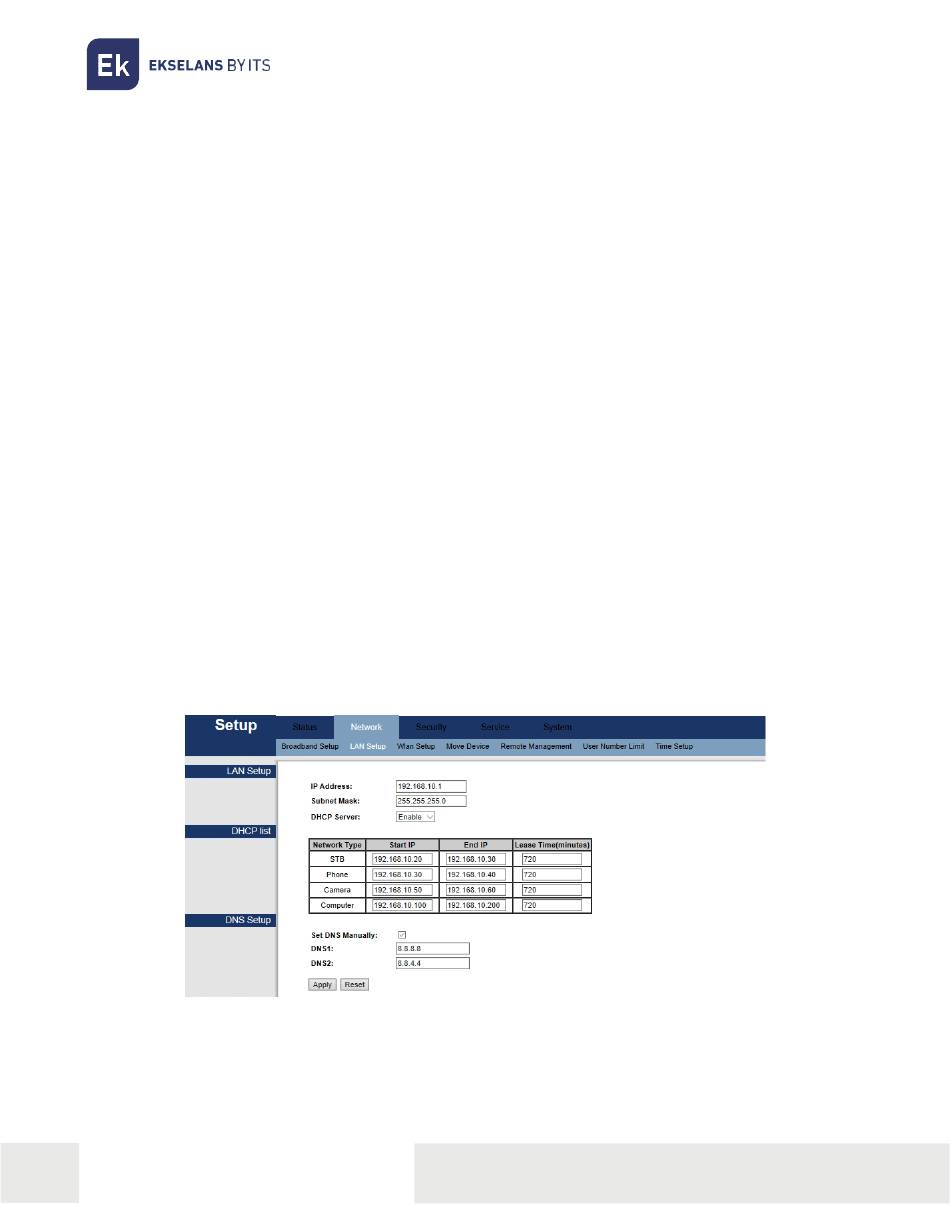

system, it can be changed in the "LAN Settings" menu as shown in the following image.
