VLAN Enable:
o Enable: Enable VLAN.
o Disable: Disable VLAN.
•
VLAN ID: The VLAN assigned.
•
802.1p: A priority to the VLAN, with 1 being the lowest and 7 highest is assigned.
•
Network Name:
o TR069: The connection which is used for TR069.
o INTERNET: The connection is used for INTERNET, and does not withstand TR069.
o TR069_INTERNET: The connection is used for INTERNET and TR069.
o Other: For other options.
•
Service mode:
o Route: When the connection is established in Router mode, the WAN IP can be obtained
in three ways: DHCP, static or PPPoE. It is the default mode.
o Bridge: It does not manage the IP, operates in a transparent manner by acquiring the
DHCP from another router. By acting transparently, everything will remain within the
network of the router which provides the service. If this operating mode is selected, the
PC or any other device will obtain the IP address of a higher layer device after
connection.
•

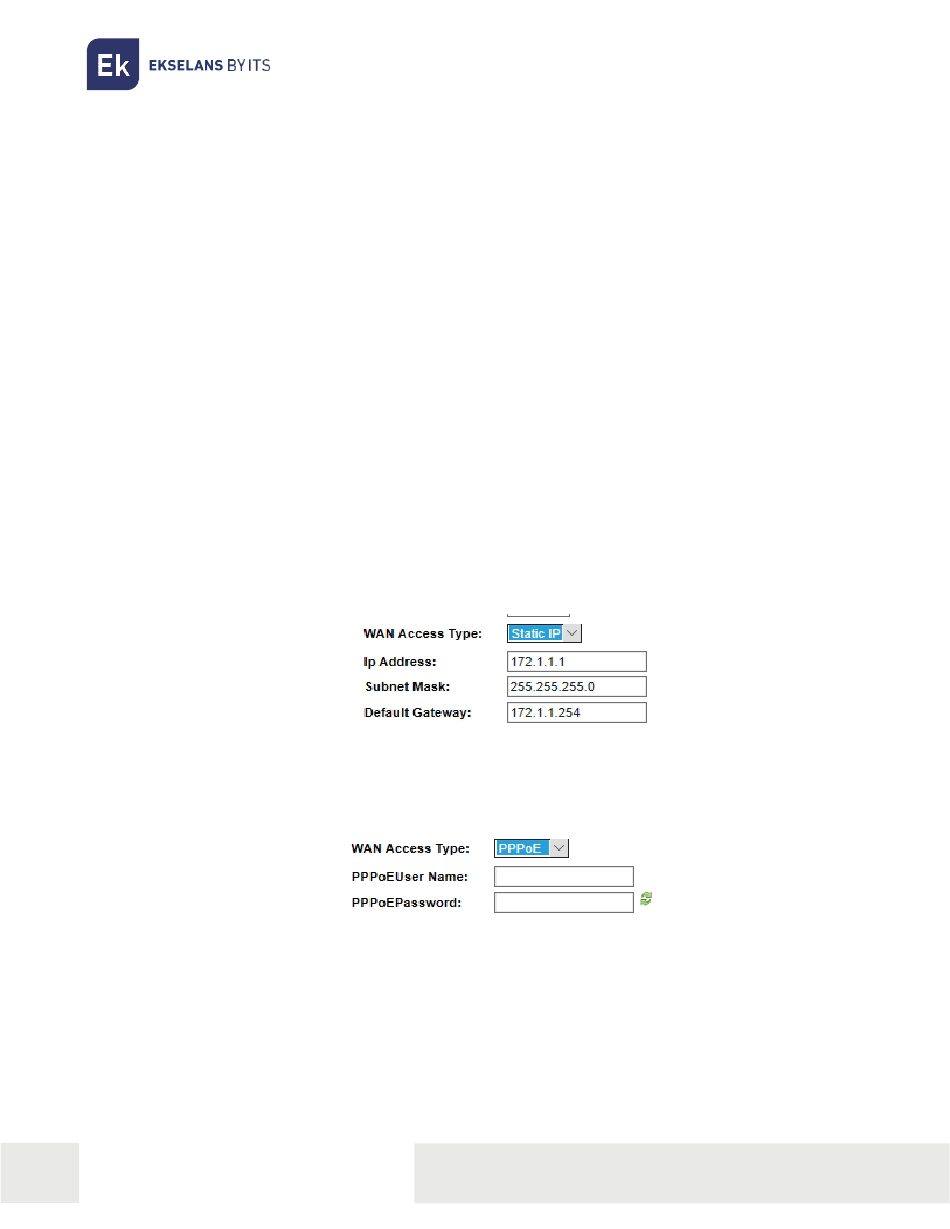

WAN Access Type:
o DHCP: Acquires dynamic IP. And if you choose DHCP, the router will automatically get
the IP address from a higher layer device.
o Static IP: We assigned an IP manually.
o PPPoE: Acquiring an IP via PPP protocol, a username and password will be assigned.
