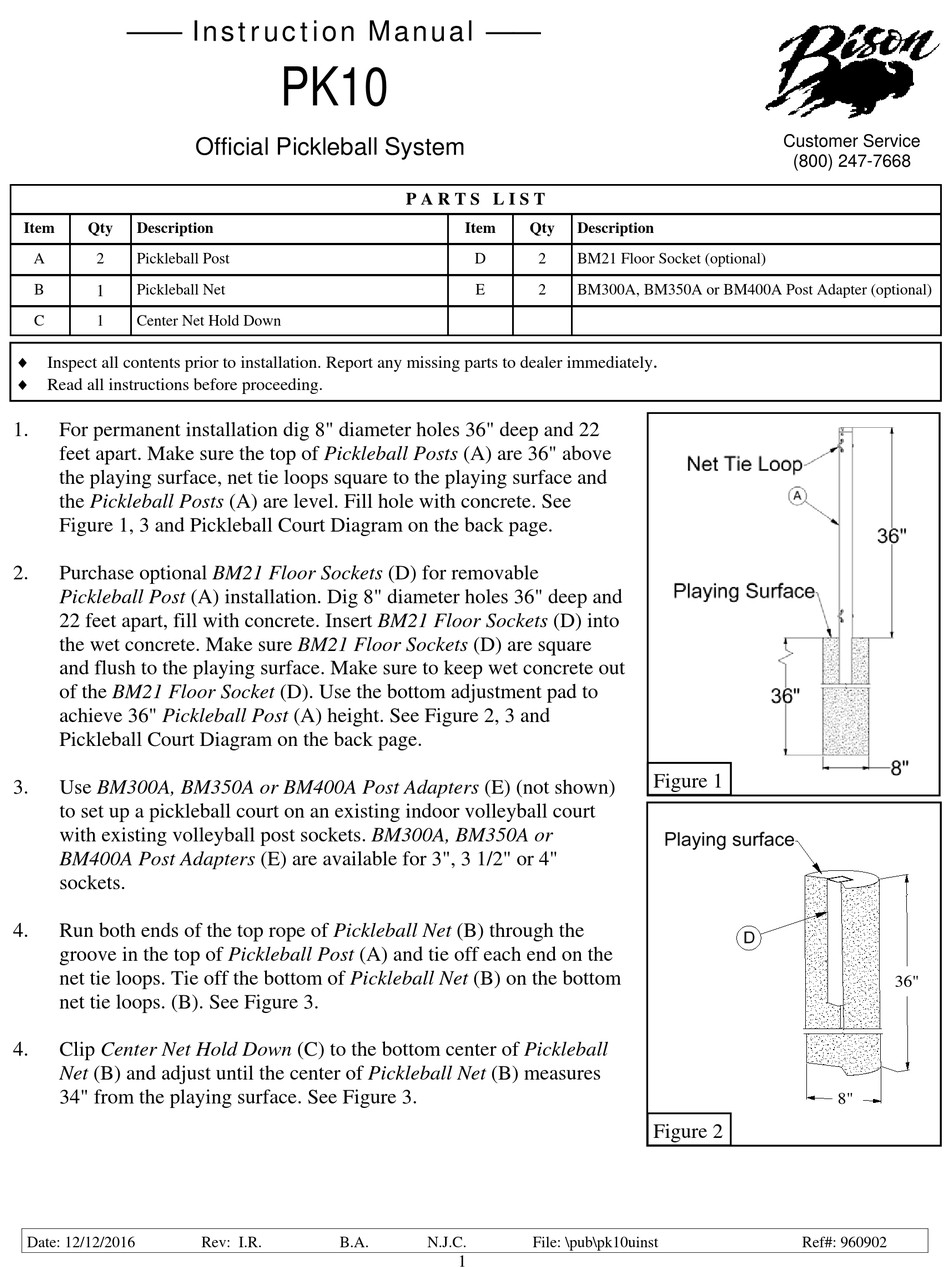

Bison PK10 Instruction Manual

—— Instruction Manual ——
Item Qty Description
A 2 Pickleball Post
B Pickleball Net
1
C 1 Center Net Hold Down
 Inspect all contents prior to installation. Report any missing parts to dealer immediately
 Read all instructions before proceeding.
1. For permanent installation dig 8" diameter holes 36" deep and 22
feet apart. Make sure the top of Pickleball Posts (A) are 36" above
the playing surface, net tie loops square to the playing surface and
the Pickleball Posts (A) are level. Fill hole with concrete. See
Figure 1, 3 and Pickleball Court Diagram on the back page.
2. Purchase optional BM21 Floor Sockets (D) for removable
Pickleball Post (A) installation. Dig 8" diameter holes 36" deep and
22 feet apart, fill with concrete. Insert BM21 Floor Sockets (D) into
the wet concrete. Make sure BM21 Floor Sockets (D) are square
and flush to the playing surface. Make sure to keep wet concrete out
of the BM21 Floor Socket (D). Use the bottom adjustment pad to
achieve 36" Pickleball Post (A) height. See Figure 2, 3 and
Pickleball Court Diagram on the back page.
3. Use BM300A, BM350A or BM400A Post Adapters (E) (not shown)
to set up a pickleball court on an existing indoor volleyball court
with existing volleyball post sockets. BM300A, BM350A or
BM400A Post Adapters (E) are available for 3", 3 1/2" or 4"
sockets.
4. Run both ends of the top rope of Pickleball Net (B) through the
groove in the top of Pickleball Post (A) and tie off each end on the
net tie loops. Tie off the bottom of Pickleball Net (B) on the bottom
net tie loops. (B). See Figure 3.
4. Clip Center Net Hold Down (C) to the bottom center of Pickleball
Net (B) and adjust until the center of Pickleball Net (B) measures
34" from the playing surface. See Figure 3.
Date: 12/12/2016
PK10
Official Pickleball System
Rev: I.R. B.A.
P A R T S L I S T
Item Qty Description
D 2 BM21 Floor Socket (optional)
E 2 BM300A, BM350A or BM400A Post Adapter (optional)
N.J.C. File: \pub\pk10uinst
1
Customer Service
(800) 247-7668
.

Figure 1

Figure 2

Ref#: 960902
