User Instructions
April 2020

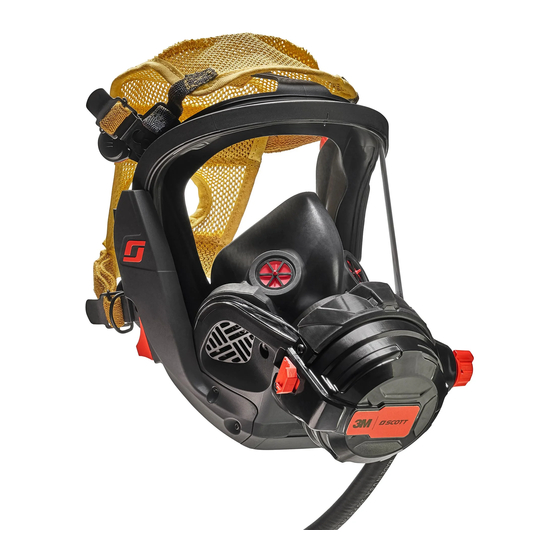

3 M™ Scott™ Vision C5 Full Facepiece Electronics
3 M™ Scott™ Vision C5 Full Facepiece Electronics
UserInstructions for the RadioDirectInterface(RDI) and
BatteryCharger for the 3MScottVisionC5FullFacepiece
IMPORTANT NOTE
i
Before use, the wearer must read and understand these User Instructions. Keep these User
Instructions for reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCOTT Vision C5 and is the answer not in the manual?

Questions and answers

Related Manuals for 3M SCOTT Vision C5

Summary of Contents for 3M SCOTT Vision C5

  • Page 1 User Instructions April 2020 3 M™ Scott™ Vision C5 Full Facepiece Electronics 3 M™ Scott™ Vision C5 Full Facepiece Electronics UserInstructions for the RadioDirectInterface(RDI) and BatteryCharger for the 3MScottVisionC5FullFacepiece IMPORTANT NOTE Before use, the wearer must read and understand these User Instructions. Keep these User Instructions for reference.

  • Page 2: Regulatory And Safety Information

    IMPORTANT NOTE Read all of the regulatory and safety information before use. This facepiece and its components are intended to be used with 3M Scott respirators, which may support human life in hazardous atmospheres. Failure to carefully follow these instructions and warnings and the instructions and warnings provided with your 3M Scott respirator may result in serious injury or death.
  • Page 3 The battery charger is not intrinsically safe but satisfies intrinsic safety requirements for the battery. IMPORTANT NOTE Charge the equipment only when in a non-hazardous area using 3M Scott power supply units supplied with the charger (specifically, part numbers 31004245 or 31003969). The maximum voltage from the charger shall not exceed 32V DC.
  • Page 4 To maintain the Intrinsic Safety Listing, Pour préserver la classification de sécurité regularly inspect this equipment per the intrinsèque, cet équipement doit être inspection procedures provided with the régulièrement inspecté selon les equipment. Do not tamper with or procédures d'inspection opérationnelle substitute components in any provenant du manufacturier.
  • Page 5 Approved battery charger: Chargeur à pile approuvé: 201718-XX 201718-XX Power Supply (Low-power): 31004245 Power Supply (Low-power): 31004245 Power Supply (High-power): 31003969 Power Supply (High-power): 31003969 Battery To maintain the Intrinsic Safety Listing, Pour préserver la classification de sécurité regularly inspect this equipment per the intrinsèque, cet équipement doit être inspection procedures provided with the régulièrement inspecté...

  • Page 6: Battery Storage

    Warning: Modifications to this device shall not be made without the written consent of 3M, Company. Unauthorized modifications may void the authority granted under Federal Communication Rules permitting the operation of this device. Battery Storage When the battery is not in use, charge the battery until it is full, and then store the battery in a cool place.
  • Page 7 If a discrepancy or malfunction cannot be corrected using the procedures contained within this manual, the product must be tagged to indicate that it is unserviceable and referred to a 3M certified technician for evaluation and repair.

  • Page 8: Warnings And Cautions

    Protection Program Manager or Safety Coordinator must assist the user in selecting the correct facepiece size relative to the user’s facial features and dimensions. Prior to use, fit testing must be performed with any approved 3M Scott accessory that will be installed on the facepiece, such as communications devices or thermal imaging systems.
  • Page 9 Do not store batteries haphazardly in a box or drawer where they may short-circuit each other or where other metal objects may short-circuit them. • Do not attempt to charge a non-rechargeable or non-3M-approved battery using the battery charger. WARNING...
  • Page 10 To reduce the risks associated with fire and exposure to contaminants, which, if not avoided, could result in serious injury or death: Do not charge batteries not approved for use with the 3M battery charger unit. WARNING To reduce the risks associated with fire and exposure to battery chemicals, which, if not avoided, could result in serious injury or death: Do not expose the battery, battery charger, or power adapter to water or moisture.
  • Page 11 The Mask Communication Unit (MCU) is the hub for in-mask voice and data communications for the 3M™ Scott™ Vision C5 Full Facepiece. The MCU is powered by a rechargeable lithium- ion battery located within the facepiece's communications module; a battery charger is...
  • Page 12 IVR is available only with BCH. IMPORTANT NOTE This equipment is for use only with an approved 3M Scott self-contained breathing apparatus ( SCBA). Training is required before use. This equipment is not for use under water or for any purpose not specifically authorized by your organized respiratory program.
  • Page 13 3M Scott Vision C5 Full Facepiece with Electronics 3M Scott Vision C5 Full Facepiece...
  • Page 14 Bone Conduction Headset (BCH) Bone Conduction Headset (BCH) Control Module Communications Module Battery Facepiece Power Button and Battery Compartment Power Button Battery Compartment Battery Compartment Latch Inspecting the Facepiece Pairing a Radio Terminating Use Inspecting the Facepiece Mask Communication Unit (MCU)
  • Page 15 See also: Maintenance Carefully read all provided safety instructions before inspecting the equipment. Inspect the equipment before first use, before donning, after each use, and during periodic inspections. Refer to the figures in About This Equipment to identify equipment components. To inspect the facepiece Inspect the facepiece for deformation, wear, cracks, or other damage.
  • Page 16 Audio transmits between the devices only after a successful connection. Required Equipment: • 3M Scott Vision C5 Full Facepiece equipped with RDI • Land mobile radio (LMR) To pair a radio Power on the facepiece electronics by pressing and holding the power button.

  • Page 17: Maintenance

    To complete the pairing process, refer to instructions provided by the manufacturer of your LMR or to reference information provided by 3M for compatible radios. Quick reference guides for pairing the facepiece RDI with specific LMRs are available from When the facepiece RDI and LMR are connected, the power button LED and RDI LED are solid blue, and the IVR system (available only with BCH) states, "Radio paired.

  • Page 18: Charging The Battery

    Do not alter or repair the electronic components of the facepiece beyond the scope of these instructions. Use only 3M Scott approved parts. IMPORTANT NOTE The rubber tube on the MCU microphone is not sold as a service part. If the MCU microphone tube is damaged, replace the MCU (P/N 201625-01).
  • Page 19 Battery Charger Components Battery Charger Mounting Bracket - Single Mounting Bracket - Double Mounting Bracket - Triple Daisy Chain Kit Power Supply, 18 W Power Supply, Hardwired Cable Power Supply, High Detachable Cordset - North America You can power the charger using any of the following power supplies: •...
  • Page 20 50/60 Hz; supports up to 3 battery chargers in a daisy-chain configuration • IMPORTANT NOTE Vehicle DC power bus: 12V or 24 V; ATC/ATO 5 A inline fuse Installing the Battery Charger for information about the required cables and power supply for your charging configuration.

  • Page 21: Installing The Battery Charger

    All off No battery detected Solid green Charge complete Flashing green (500 ms on, 500 ms off) Charging Flashing red quickly (250 ms on, 250 ms System Fault off) Flashing red slowly (750 ms on, 250 ms off) Battery Fault •...
  • Page 22 IMPORTANT NOTE Plug the power supply into a wall outlet. Ensure that you are using a 3M Scott approved battery and power supply (low-power only). See Conditions of Safe Use. Do not connect a second power supply to the charger.

  • Page 23: Mounting The Battery Charger

    Ensure that you are using a 3M Scott approved battery and power supply (high-power only). Conditions of Safe Use. Do not connect a second power supply to the connected chargers. Mounting the Battery Charger Mount a single battery charger or up to 3 chargers in a daisy-chain configuration on a flat horizontal or vertical surface (such as a desk or well) or in a vehicle.
  • Page 24 • Mounting template (for 1, 2, or 3 chargers) • 4-40 x 3/4 in Phillips pan screws to secure the charger to the mounting bracket (2 per charger) • Screw plugs (2 per charger) • External charging cord (positive terminal to be fused with ATC/ATO 5 A inline fuse) •...

  • Page 25: Troubleshooting The Battery Charger

    • Replace the battery with a known "good" battery. • Ensure that you are using a 3M Scott approved battery and power supply. • Ensure that you have no more than 3 battery chargers connected in a daisy chain configuration.
  • Page 26 Repairs are limited to replacing the listed parts. IMPORTANT NOTE Do not alter or repair this assembly, its components, or its accessories beyond the scope of these instructions. Use only 3M Scott approved parts. Part Description Part Number Battery Charger...

  • Page 28: Limited Warranty

    LIMITED WARRANTY 3M Scott Fire & Safety (3M SCOTT) warrants Vision C5 Facepiece products (THE PRODUCTS) to be free from defects in workmanship and materials for as long as THE PRODUCTS are owned by the original end-user purchaser. This warranty applies to all components of THE...
  • Page 29 PRODUCTS or components shown to be defective in either workmanship or materials. Only personnel of 3M SCOTT or, when directed by 3M SCOTT, authorized 3M SCOTT agents are authorized to perform warranty obligations. This warranty does not apply to defects or damage...
  • Page 30 Personal Safety Division SCBA & Fire Solutions 4320 Goldmine Road, Monroe NC 28110 Telephone: (704) 291-8300 Technical Support: (800) 247-7257, ScottTechSupport@mmm.com Web: www.3MScott.com © 3M 2019. 3M and Scott are trademarks of 3M.
