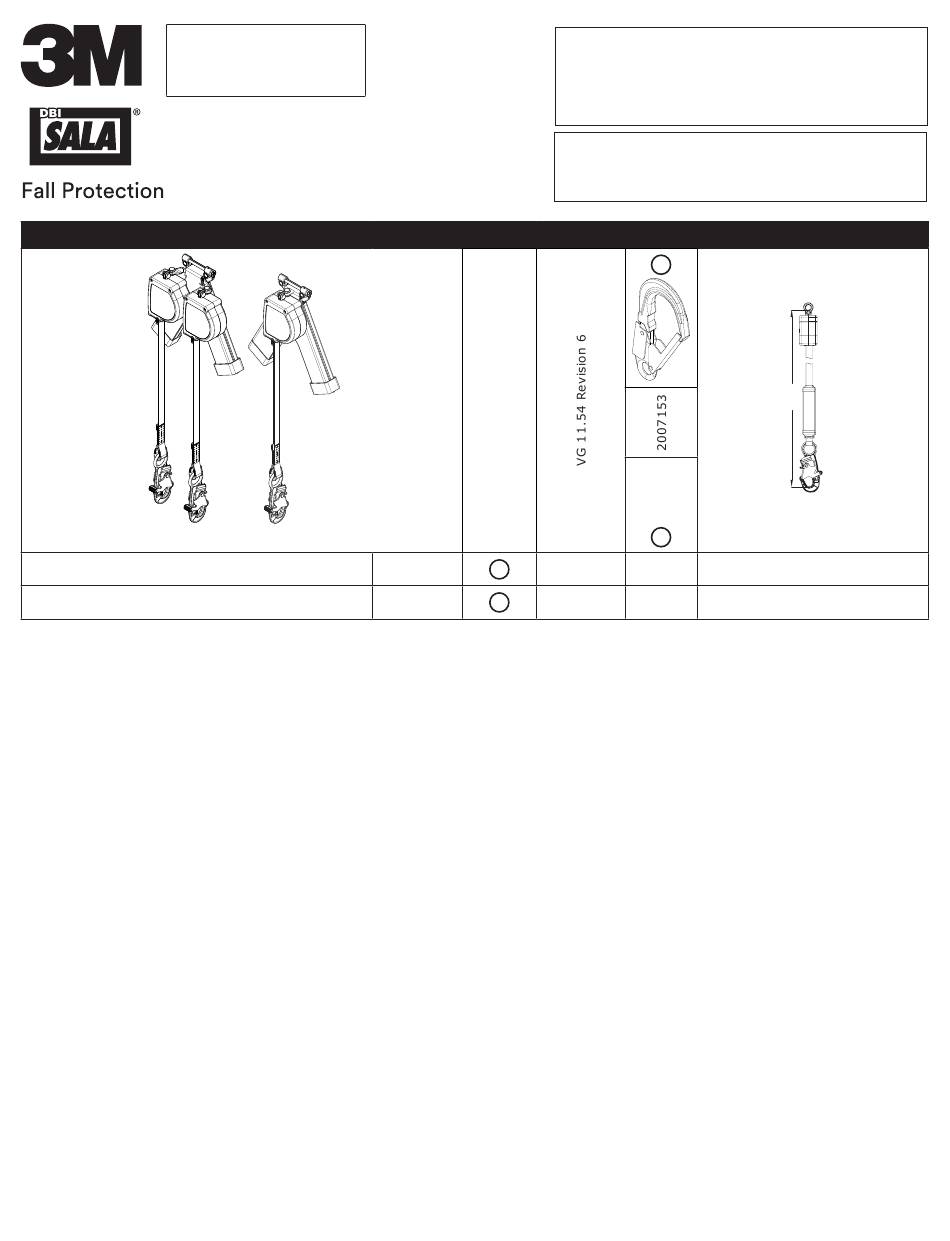

- Page 1 EN360: 2002 3M™ DBI-SALA® VG 11.54 Revision 6 Nano-Lok edge ТР ТС 019/2011 SELf-REtRActING DEVIcE INSTRUCTION MANUAL 5908390 R Nano-Lok Edge 2.4 m 3500266 √ √ (8 ft) 2.4 m 3500267 √ √ (8 ft) © 3M 2020...
- Page 2 FC = FF+DD+SF...
- Page 4 ≥90° <90° ý NO þ OK 0 ft 1 ft 2 ft 3 ft 4 ft 5 ft (0.00m) (0.3m) (0.6m) (0.9m) (1.2m) (1.5m) 0 ft 18.4 ft 18.7 ft 19.4 ft 20.0 ft 20.4 ft 22.0 ft (0.0m) (5.6m) (5.7m)
- Page 8 3 3 3 Nano-Lok ™ edge Nano-Lok ™ edge...
-
Page 10: Safety Information
Ensure there is adequate fall clearance when working at height. Never modify or alter your fall protection equipment. Only 3M or parties authorized in writing by 3M may make repairs to the equipment. Prior to use of fall protection equipment, ensure a rescue plan is in place which allows for prompt rescue if a fall incident occurs. -
Page 11: Component Specifications
Before using this equipment, record the product identification information from the ID label in the ‘Inspection and Maintenance Log’ at the back of this manual. Always ensure you are using the latest revision of your 3M instruction manual. Visit the 3M website or contact 3M Technical Services for updated manuals. - Page 12 Do not allow the lifeline to pass under arms or between legs. Never clamp, knot, or prevent the lifeline from retracting or being taut. Avoid slack line. Do not lengthen SRDs by connecting a lanyard or similar component without consulting 3M. •...
-
Page 13: System Use
Do not use equipment that is not compatible. Ensure all connectors are fully closed and locked. 3M connectors (snap hooks and carabiners) are designed to be used only as specified in each product’s user’s instructions. See Figure 6 for examples of inappropriate connections. - Page 14 SELF-RETRACTING DEVICES WITH LEADING EDGE (SRD-LE): The SRDs covered by this instruction manual include Self-Retracting Devices with Leading Edge capabilities (SRD-LEs). See Figure 1 for specific SRD-LE models. SRD-LEs were tested for horizontal use and falls over a steel edge without burrs. SRD-LEs may be used in situations where a fall may occur over steel edges, such as found on steel shapes or metal sheeting.
-
Page 15: Installation
3.0 Installation PLANNING: Plan your fall protection system before starting your work. Account for all factors that may affect your safety before, during, and after a fall. Consider all requirements and limitations defined in Section 2. ANCHORAGE: Figures 11 illustrates typical SRD anchorage connections. Select an anchorage location with minimal free fall and swing fall hazards (see Section 1). - Page 16 PRODUCT LIFE: The functional life of 3M Self-Retracting Devices is determined by work conditions and maintenance. As long as the product passes inspection criteria, it may remain in service within maximum product life. The maximum...
- Page 17 7.0 RFID Tag LOCATION: 3M product covered in these user instructions is equipped with a Radio Frequency Identification (RFID) Tag. RFID Tags may be used in coordination with an RFID Tag Scanner for recording product inspection results. See Figure 13 for where your RFID Tag is located.
- Page 18 8.0 LABELS Figure 19 illustrates labels on the Self-Retracting Devices and their locations. All labels must be present on the SRD. Labels must be replaced if they are not fully legible. Read instructions. Information about methods of maintenance and methods of recycling. Maximum user weight: 1 user, user weight (including clothing, tools, etc.) should not exceed 140 kg.
- Page 19 Table 3 – Inspection and Maintenance Log Serial Number(s): Date Purchased: Model Number: Date of First Use: Inspection Date: Inspected By: Component: Inspection: Pass Fail (See Section 2 for Inspection Frequency) Inspect for loose fasteners and bent or damaged parts. (Figure 14) Inspect the Housing (A) for distortion, cracks, or other damage.
- Page 20 Technical Regulation of Customs Union ТР ТС 019/2011 “Safety of personal protective equipment”. • Name and legal address of manufacturer: «3М Fall Protection», 3833 Sala Way, Red Wing, Minnesota 55066, USA («3M Фол Протекшен», 3833 Сала Уэй, Рэд Уинг, Миннесота 55066, Соединенные Штаты) • Manufacturing country: USA (Соединенные Штаты) •...
- Page 21 LIMITED REMEDY: Upon written notice to 3M, 3M will repair or replace any product determined by 3M to have a factory defect in workmanship or materials. 3M reserves the right to require product be returned to its facility for evaluation of warranty claims. This warranty does not cover product damage due to wear, abuse, misuse, damage in transit, failure to maintain the product or other damage beyond 3M’s control.
-
