injen technology SP1126 Manual

Part Number SP1126
2011 BMW E82 135i E90 335i
(N55) L6 3.0L (turbo)

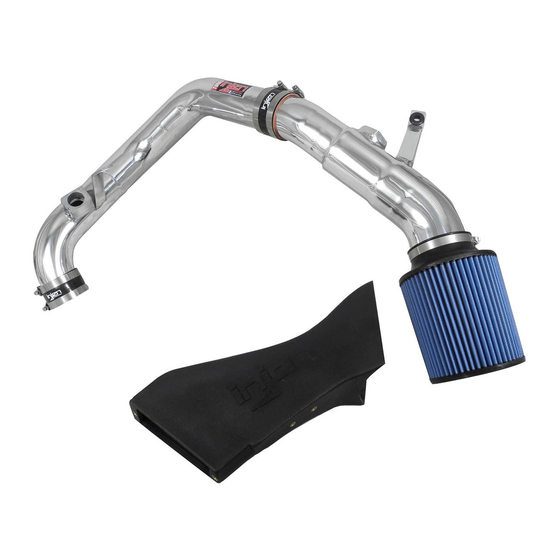

1- 2 piece TUNED air intake system
1- 3-1/2" web dry Nanofiber filter
1- 3/16" ID x 1/2" long aluminum spacer (#10016)
2- 3" straight hose
4- #048 clamps
1- Power steering cup w/ bracket
4- M4 button head screws
3- M6 flange nuts
(3 used on 135i)
(2 used on 335i)
1- M6 x 35mm stainless button head
1- Fender washer
1- Grommet
1- Front mount air scoop
4- M6 x 10mm stainless button head
(4 used on 135i for scoops)
(4 used on 335i, 2 scoop & 2 Air scoop bracket)
1- Air scoop support bracket (335i only) (#20096)
1- Instruction (10 Pages)
Note: The C.A.R.B. Exempt sticker must be
attached under the hood in a manner that is
easily viewed by an emissions inspector
Note: The installation of this air intake does require mechanical skills. Removal of the front bumper requires
loosening and removing several plastic plugs and screws that may be difficult. In addition to removing the
bumper, you may also have to remove the air resonator box, battery and tray when beginning this installation.
Injen strongly recommends that this system be installed by a professional mechanic.
MR
Note: The C.A.R.B Exempt sticker must be attached under the hood in a manner such that it is easily viewed by an emissions inspector.
Figure 1
This kit is equipped with the
Injen Ea nanofiber dry
filters, Ea nanofiber filters
do not require oil.
(#1021)
(#3044)
(#4004)
Congratulations! You have just purchased the best engineered,
(#20088)
dyno-proven air intake system available.
(#6072)
(#6002)
Report any defective or missing parts to the Authorized Injen
Technology dealer you purchased this product from.
(#6007)
Before installing any parts of this system, please read the instructions
(#6010)
thoroughly. If you have any questions regarding installation please
(#8026)
contact the dealer you purchased this product from.
(#6082)
Installation DOES require some mechanical skills. A qualified
(#6083)
mechanic is always recommended.
*Do not attempt to install the intake system while the engine is hot.
The installation may require removal of radiator fluid line that may
be hot.
Injen Technology offers a limited lifetime warranty to the original
purchaser against defects in materials and workmanship. Warranty
claims must be handled through the dealer from which the item was
. purchased.
Technology, "The World's First Tuned air Intake System!"
Factory safe air/fuel ratio's for Optimum performance
Please check the contents of this box immediately.
Figure 2
Patent# 7,359,795
335i only
