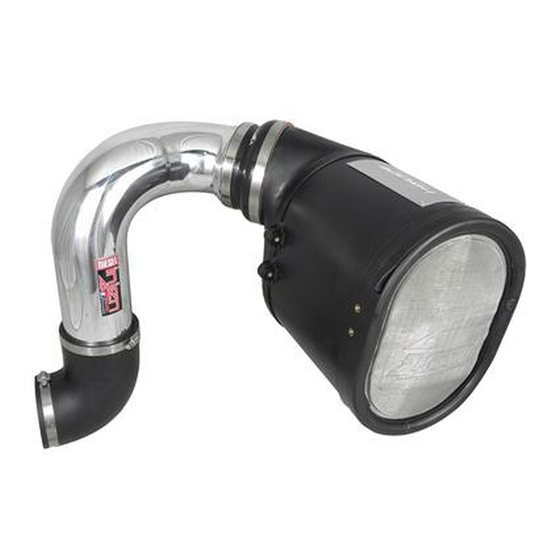

injen technology PF8075 Instructions Manual

Part number PF8075
2003-07 Dodge Ram
5.9L Cummins I6 (TD)
1- 4"
aluminum intake
1-
Webbed nano-fiber dry filter
1- Power Box-
contents:
1
- Aluminum skin plate
1
- Main body
1- Side air plenum
1
- Front pre-filter screen
socket
9- M4 x 12mm
head screw
4
- m6 x 12mm socket head
1
- velocity stack /no ViT
4-
m8 x12mm low head socket
1
- Air box mounting bracket
2-
m4 x 16mm
button head screw
1-
5 1/2" x 4 1/2" step hose
1- 4" 90 degree elbow
1- X-Large clamps #088
1- Large clamps #072
2- Large Clamps#064
1- 6 page instruction
Warning: Do not attempt to disassemble part# W-
PBDVC. Product warranty will be voided if it is deter-
mined that the W-PBDVS has been tampered with.
Contact Injen customer service for service or repair.
Note: The C.A.R.B. Exempt sticker must be attached
under the hood in a manner such that it is easily viewed
by an emissions inspector.
Note: In off-road, frequently dusty or other severe duty applications, clean and change the Injen/AMSOIL
air filter more often as determined by operating conditions or as indicated by the air restriction gauge.
Figure 1
(#1029)
W-PBDD-1
(#11040)
(#15007)
(#15006)
Congratulations! You have just purchased the best engineered and
(#15011)
most advanced air intake system, equipped with Ea nanofiber air fil-
(#6074)
ter.
(#6056)
Please check the contents of this box immediately.
W-PBDVS)
(
Report any defective or missing parts to the authorized Injen or AMSOIL deal-
(#6076)
er you purchased this product from.
(#20083)
Before installing any parts of this system, please read the instructions thor-
(#6072)
oughly. If you have any questions regarding installation, please contact your
(#3184)
dealer, Injen Technology or AMSOIL.
(#3174)
Installation DOES require some mechanical skills. A qualified
(#4020)
mechanic is always recommended.
(#4014) *Do not attempt to install the intake system while the engine is hot.
The installation may require removal of radiator fluid line that may be hot.
(#4006)
Injen Technology offers a limited lifetime warranty to the original
against defects in materials and workmanship. Warranty claims must be han-
dled through the dealer from which the item was purchased.
Injen Technology 244 Pioneer Place Pomona, CA 91768 USA
Note: This intake system was tested with an Injen/AMSOIL air filter
made from synthetic Nanofiber media which has a 100,000 mile
service life or four year warranty, whichever comes first.
Nanofibers
Cellulose
Power-Box contents:
Figure 2
Nanofiber technology:
Is an oil free filtration
media that has been
used exclusively in
heavy duty applica-
tions, including the
US Army's Abrams
M1 tanks.
wet gauze
Injen/AMSOIL is now
making it available to
diesel applications
and vary soon will be
available for the gas
auto/light truck market
purchaser
