injen technology SP1567 Installation Instructions
For honda civic ex 2001; honda civic ex 2002; honda civic ex 2003; honda civic ex 2004; honda civic ex 2005; honda civic lx 2001; honda civic lx 2002; honda civic lx 2003; honda civic lx 2004; honda civic lx 2005; honda civic dx 2001; honda civic dx 2002;
Advertisement

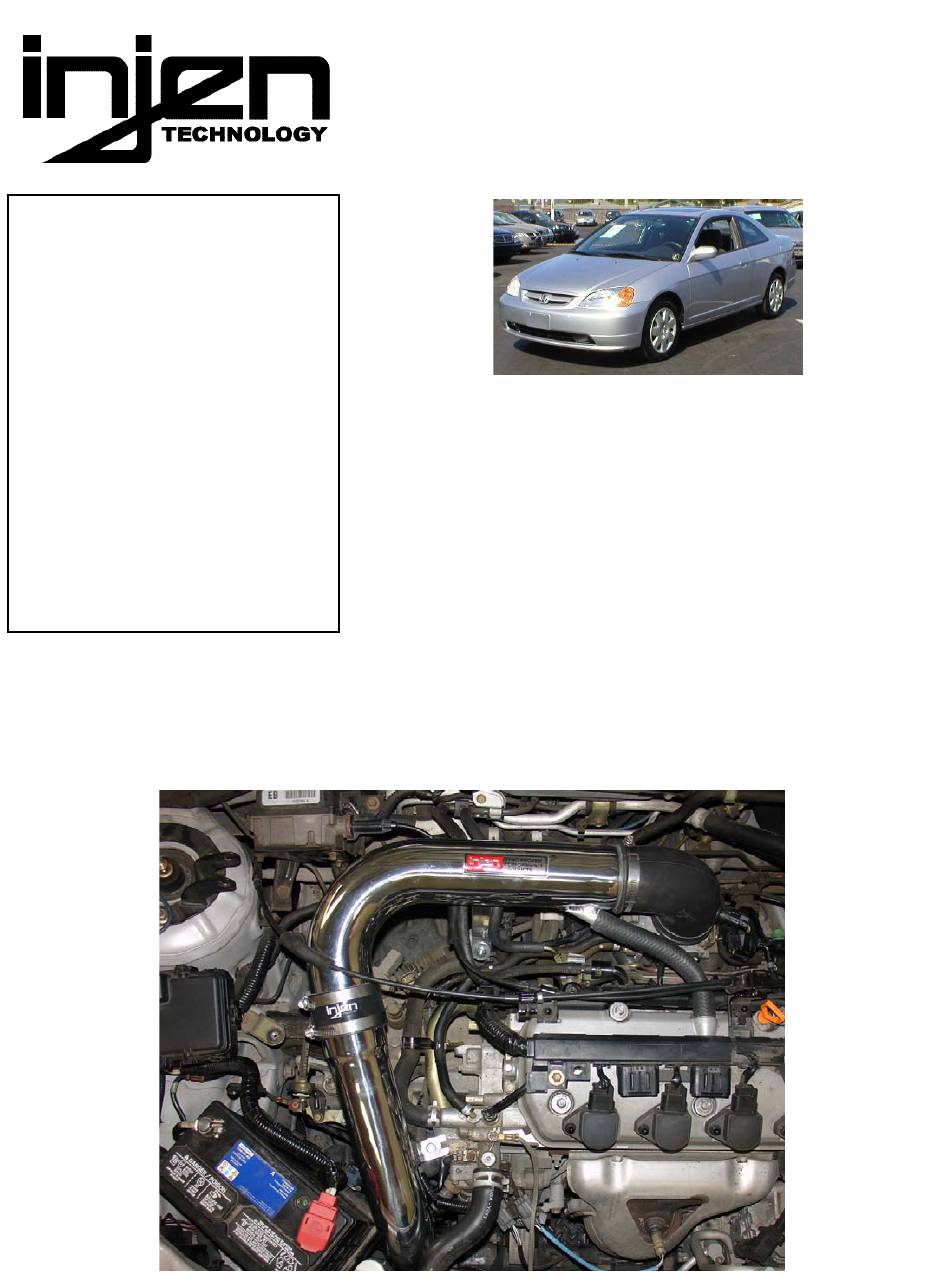

Part number SP1567
2001-05 Honda Civic
Ex, Lx, Dx
1.6L, 4 cyl.
1- Two piece cold air intake
1- 3" Small Injen filter
1- 3" straight hose
1- 8" 15mm vacuum hose
1- 2 1/2" X 2 3/4 " 90 degree
elbow with 1525 grommet
2- Power-Bands (.040)(.312)
2- Power-Bands (.048)(.362)
2- M6 flange nuts
2- fender washers
2- M6 Vibra-mounts
1- 4 Page instructions
(CA)
(#1020)
(#3044)
(#3079)
(#3097)
(#6014)
(#4003)
(#4004)
(#6002)
(#6010)
(#6020)
Advertisement
Table of Contents
Related Manuals for injen technology SP1567
Summary of Contents for injen technology SP1567
- Page 1 Part number SP1567 2001-05 Honda Civic Ex, Lx, Dx 1.6L, 4 cyl. 1- Two piece cold air intake (CA) 1- 3” Small Injen filter (#1020) 1- 3” straight hose (#3044) 1- 8” 15mm vacuum hose (#3079) 1- 2 1/2” X 2 3/4 ” 90 degree...
- Page 2 Disconnect any vacuum lines connected to the stock air box and remove the Remove the stock air intake duct connected from the box to the throttle body. stock air intake box from its stock location For this installation remove the negative and positive Now you are ready to remove the Once the battery has been removed continue to battery terminals, then proceed to remove the battery.
- Page 3 While the intake is pressed into the silicone elbow the The primary intake is now installed and in place. Take the primary intake and press the straight end into bracket is lined up the the first vibra-mount stud. as the 90 degree elbow as shown in this picture. shown above.
- Page 4 Once the entire intake has been installed continue to align the intake for best Once the bracket has been aligned to the vibra-mount stud press the upper end possible fit. After proper clearance has been made through out the length of the of the intake into the 3”...
