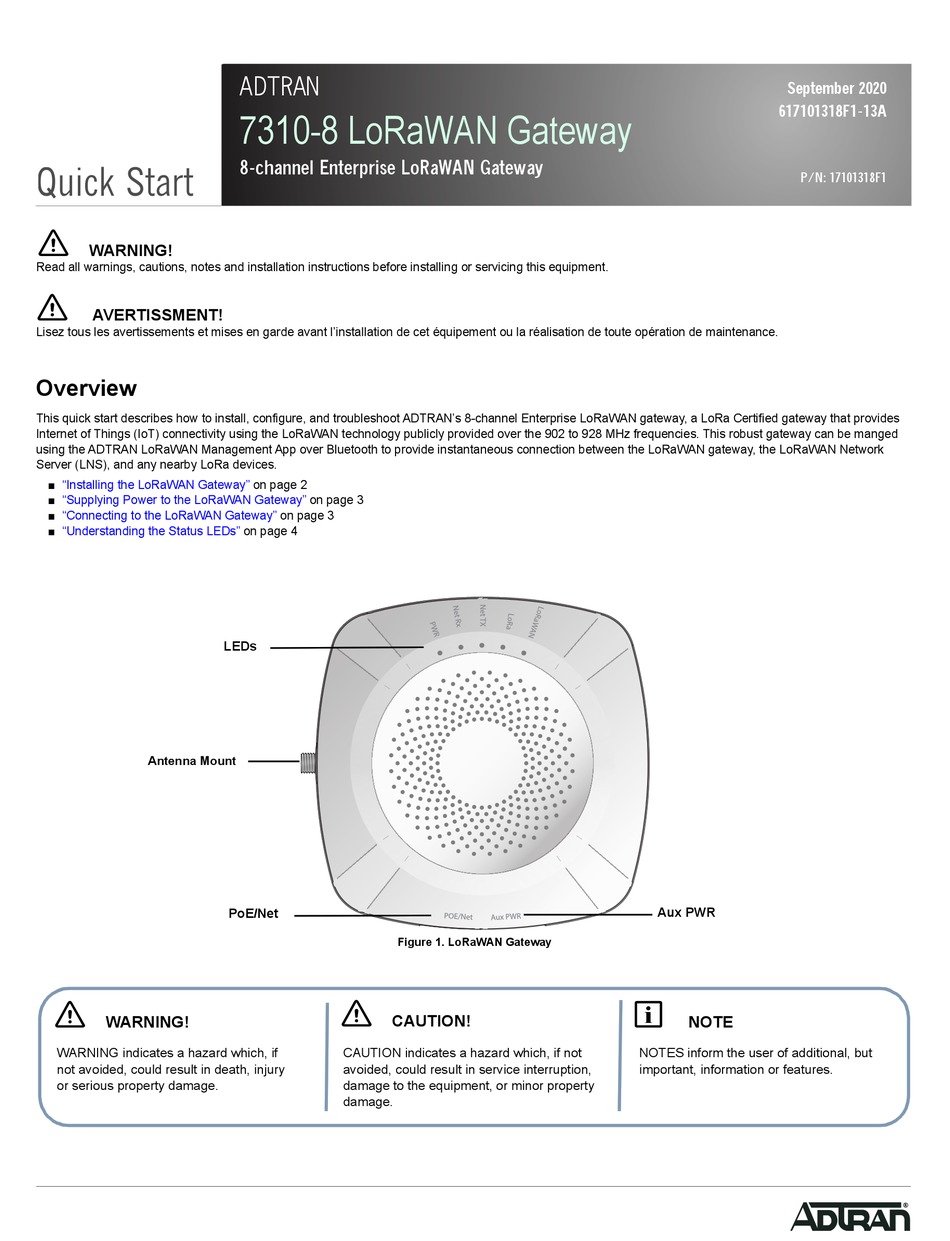

Quick Start
f
WARNING!
Read all warnings, cautions, notes and installation instructions before installing or servicing this equipment.
f
AVERTISSMENT!
Lisez tous les avertissements et mises en garde avant l'installation de cet équipement ou la réalisation de toute opération de maintenance.
Overview
This quick start describes how to install, configure, and troubleshoot ADTRAN's 8-channel Enterprise LoRaWAN gateway, a LoRa Certified gateway that provides
Internet of Things (IoT) connectivity using the LoRaWAN technology publicly provided over the 902 to 928 MHz frequencies. This robust gateway can be manged
using the ADTRAN LoRaWAN Management App over Bluetooth to provide instantaneous connection between the LoRaWAN gateway, the LoRaWAN Network
Server (LNS), and any nearby LoRa devices.
■
"Installing the LoRaWAN Gateway"
■
"Supplying Power to the LoRaWAN Gateway"
■
"Connecting to the LoRaWAN Gateway"
■
"Understanding the Status LEDs"
Antenna Mount
f
WARNING!
WARNING indicates a hazard which, if
not avoided, could result in death, injury
or serious property damage.
ADTRAN
7310-8 LoRaWAN Gateway
8-channel Enterprise LoRaWAN Gateway
on page 2
on page 3
on page 3
on page 4
LEDs
PoE/Net

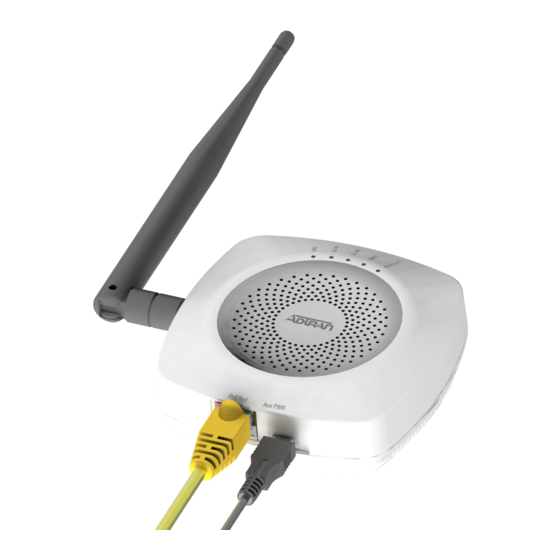

Figure 1. LoRaWAN Gateway
f
CAUTION!
CAUTION indicates a hazard which, if not
avoided, could result in service interruption,
damage to the equipment, or minor property
damage.
September 2020
617101318F1-13A
P/N: 17101318F1
Aux PWR
g
NOTE
NOTES inform the user of additional, but
important, information or features.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ADTRAN 7310-8
Summary of Contents for ADTRAN 7310-8
- Page 1 Overview This quick start describes how to install, configure, and troubleshoot ADTRAN’s 8-channel Enterprise LoRaWAN gateway, a LoRa Certified gateway that provides Internet of Things (IoT) connectivity using the LoRaWAN technology publicly provided over the 902 to 928 MHz frequencies. This robust gateway can be manged using the ADTRAN LoRaWAN Management App over Bluetooth to provide instantaneous connection between the LoRaWAN gateway, the LoRaWAN Network Server (LNS), and any nearby LoRa devices.
- Page 2 CAUTION! The ADTRAN Enterprise LoRaWAN gateway is intended for indoor use only. Ethernet, PoE cables, and attached equipment are intended for use within the same building with equipotential bonding, and not intended to be placed in separate buildings or structures. Failure to deploy as described could result in permanent damage from lightning or other electrical events and voids the warranty.
- Page 3 Aux PWR Port Figure 4. LoRaWAN Cable Connections NOTE ADTRAN’s LoRaWAN gateway also provides a universal serial bus (USB) connection that can be used instead of the RJ-45 Ethernet cable for providing power to the gateway (as shown in Figure...
- Page 4 2. Ensure that the Bluetooth feature of your Apple device is on. 3. Open the LoRaWAN Management App on your Apple device and select SCAN from the menu. The application will scan for any ADTRAN LoRaWAN gateways within the Bluetooth connection range, and provide you the option to connect to any discovered devices.
- Page 5 If sufficient ventilation is not provided, the unit could overheat. Do not mount the unit on a heated surface or close to a heat source. CAUTION! Do not locate the product in direct sunlight or next to any thermal obstructions or source of moisture. NOTE Changes or modifications not expressly approved by ADTRAN will void the warranty. 617101318F1-13A...
- Page 6 Compliance ■ Changes or modifications not expressly approved by ADTRAN could void the user's authority to operate this equipment. ■ This product is NRTL Listed to the applicable UL/CSA Standards. ■ IEEE 802.3at PoE+ ■ This product is LoRaWAN ®...
