5/22
IRMA MATRIX R2 Option Door Contact | Mounting Manual
released
All considerations on the installation position and orientation of the sensors are based
on the assumption that the viewer is inside the vehicle.
2
Option: IRMA MATRIX sensor with door contact
Optionally a door contact magnet (electromagnet) is available which can be fitted for
signalization of the door status. The door contact magnet requires a 24 V DC connection
(for technical data see section 2.5, page 15).
2.1
Mounting of the surface mount version with door
contact magnet
Exterior
Interior

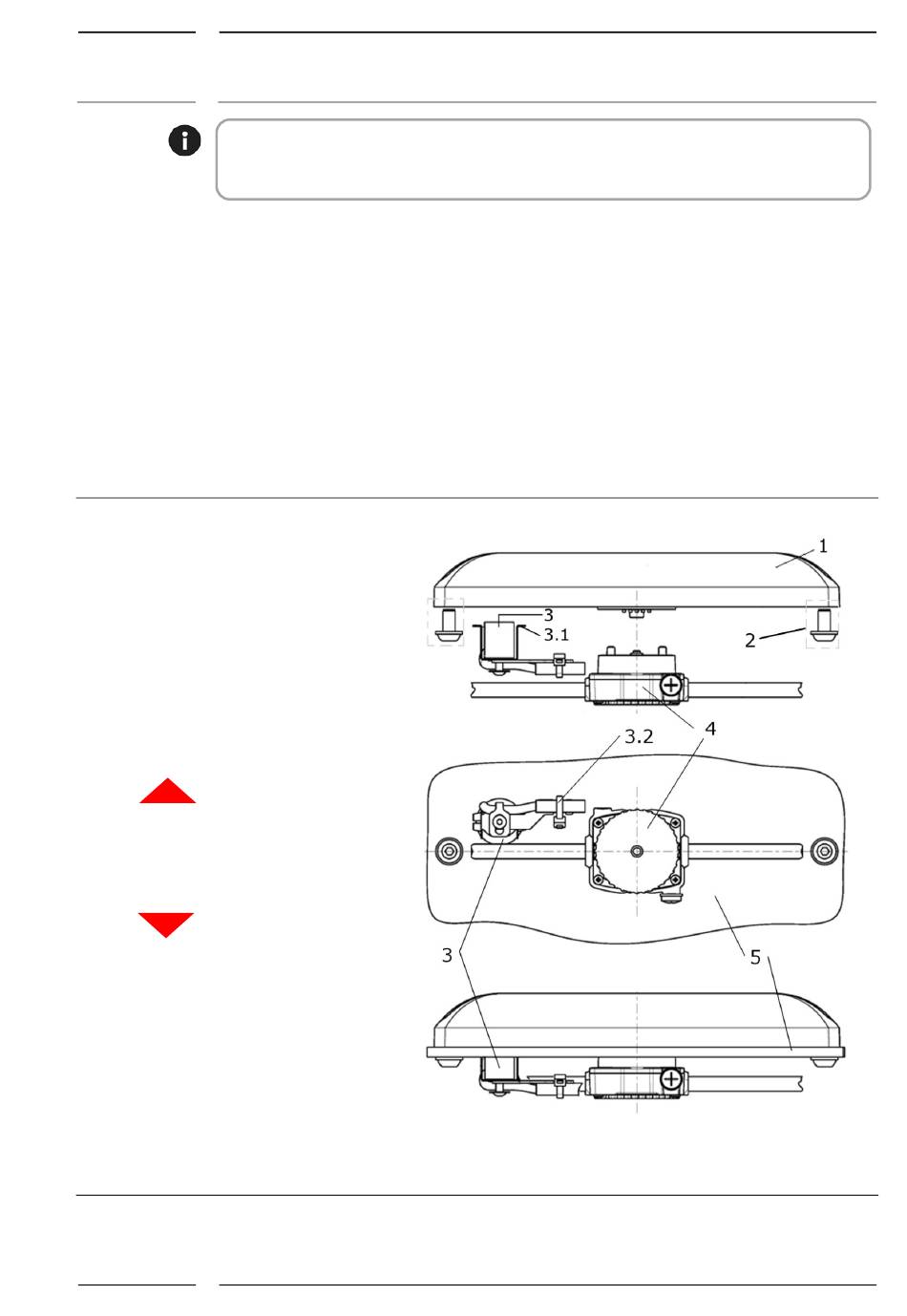

Fig. 1:
Surface mount version: with door contact magnet
Rev. 1.5
2018-02
