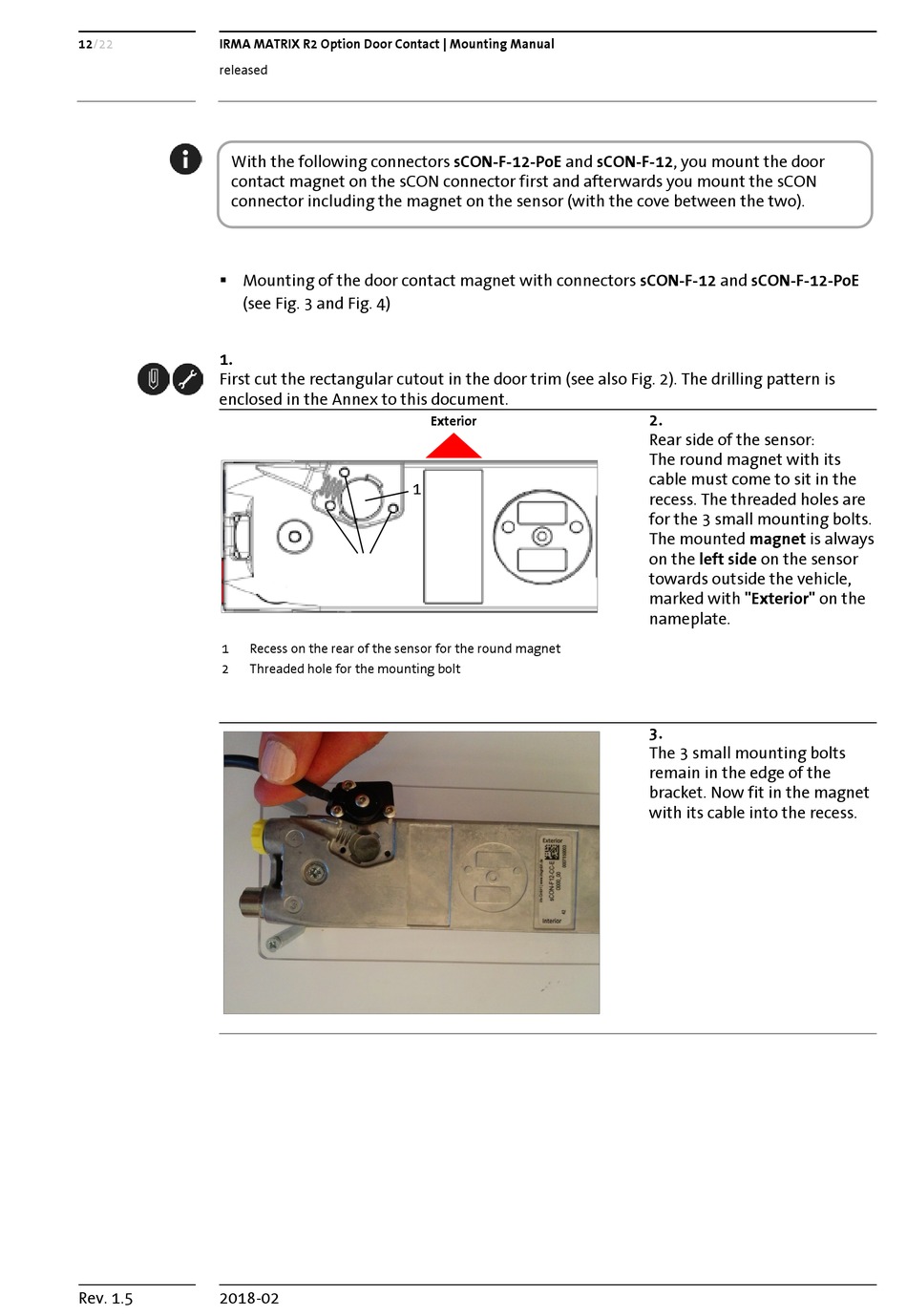

IRIS IRMA MATRIX R2 Mounting Manual page 12

12/22 IRMA MATRIX R2 Option Door Contact | Mounting Manual
released
With the following connectors sCON-F-12-PoE and sCON-F-12, you mount the door
contact magnet on the sCON connector first and afterwards you mount the sCON
connector including the magnet on the sensor (with the cove between the two).
 Mounting of the door contact magnet with connectors sCON-F-12 and sCON-F-12-PoE
(see Fig. 3 and Fig. 4)
1.
First cut the rectangular cutout in the door trim (see also Fig. 2). The drilling pattern is
enclosed in the Annex to this document.
1 Recess on the rear of the sensor for the round magnet
2 Threaded hole for the mounting bolt
Rev. 1.5 2018-02
Exterior
1
2.
Rear side of the sensor:
The round magnet with its
cable must come to sit in the
recess. The threaded holes are
for the 3 small mounting bolts.
The mounted magnet is always
on the left side on the sensor
towards outside the vehicle,
marked with "Exterior" on the
nameplate.
3.
The 3 small mounting bolts
remain in the edge of the
bracket. Now fit in the magnet
with its cable into the recess.
