Tern Atlas Quick Start Manual

Atlas Kickstand
™
Safety
Do not exceed load limit of 80 kg (176 lb).
Never leave children on a parked bike unattended.

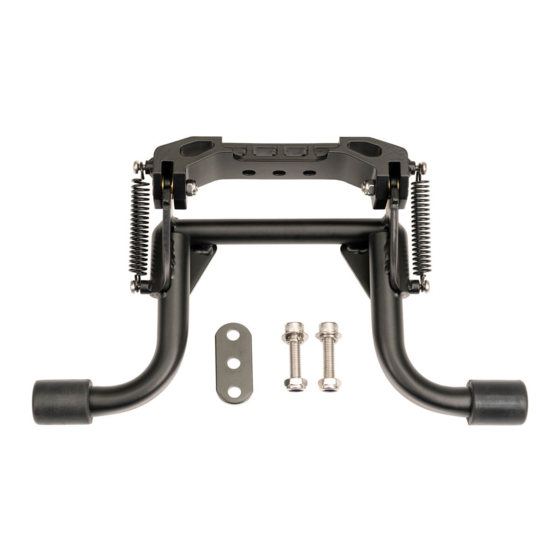

What's Included
1. Atlas Kickstand
2. Oval Plate
3. Bolt Set x 2
Installation
Tools Required (not included)
1. 17 mm Wrench
2. 8 mm Allen Key
3. Zip Tie
4. Chain Link Open Plier*
5. Chain Link Close Plier*
* GSD S00 requires the use of the chain link pliers.
1. Remove your existing kickstand.
Please check the support site on ternbicycles.com
for more information or visit your dealer if you are
unfamiliar with how to remove your kickstand.
2. If you have a GSD S10 (equipped with a
derailleur), shift to the smallest cog.
3. Position Master Link on the chain between
Chain Guide Pulley and Motor.
Attach a zip tie in front of Master Link to
prevent chain from falling off the chainring.
1
2
3
Parts Required (not included)
Chain Guide Pulley Set
GSD S00 owners can obtain the
Chain Guide Pulley Set from their Tern
dealer. Please check the support site
on ternbicycles.com or work with your
dealer to install the Chain Guide.
1 2 3 4 5
