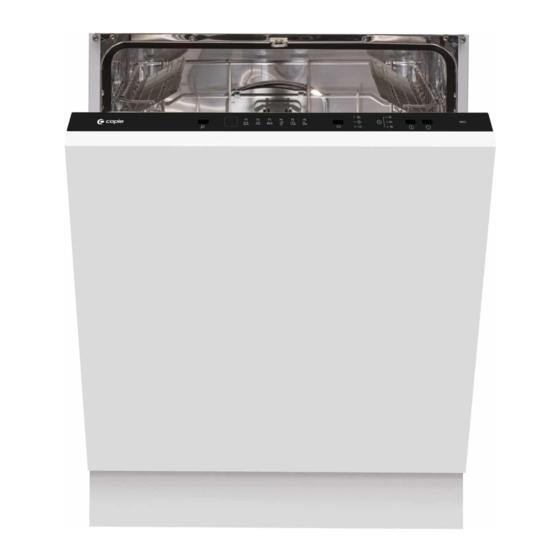

- Page 1 D i s h w a s h e r I n s t r u c t i o n M a n u a l DI6 32 Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
-
Page 2: Table Of Contents
Loading The Salt Into The Water Softener Rinse Aid Dispenser Detergent Dispenser Loading the Dishwasher Baskets Wash Cycle Table Programming the Dishwasher Auto Open Cleaning and Maintenance Installation Instructions Troubleshooting Technical Information Caple Contact Details Instruction manual DI632 Please keep this instruction manual for future reference... -
Page 3: Safety Instructions
- This appliance is for indoor household use only. - To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid. Instruction manual DI632 Please keep this instruction manual for future reference... - Page 4 - Improper connection of the equipment-earthing conductor can result in the risk of an electric shock. - Check with a qualified electrician or Caple service representative if you are in doubt whether the appliance is properly grounded.
- Page 5 - The door should not be left open, since this could increase the risk of tripping. - The appliance may only be used with correctly adjusted door springs. Instruction manual DI632 Please keep this instruction manual for future reference...
- Page 6 - If the supply cord is damaged, it must be replaced by Caple, its service agent or a similarly qualified person in order to avoid a hazard. - During installation, the power supply must not be excessively or dangerously bent or flattened.
- Page 7 - DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. Instruction manual DI632 Please keep this instruction manual for future reference...
-
Page 8: Environmental Protection
(placed on the inside of the appliance storage drawer). Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. -
Page 9: Quick Operation Guide
4. Fill the dispenser. 5. Select a programme and run the dishwasher. Instruction manual DI632 Please keep this instruction manual for future reference... -
Page 10: Control Panel
4 - P R O G R A M M E programme. The corresponding indicator will be lit. this button to toggle through and select the appropriate washing programme. The corresponding indicator will be lit. Instruction manual DI632 Please keep this instruction manual for future reference... - Page 11 To show the delay time (3h/6h/9h). D E L A Y T I M E 8 - D E L AY T I M E To show the delay time (3h/6h/9h). Instruction manual DI632 Please keep this instruction manual for future reference...
-
Page 12: Product Overview
Before using your dishwasher for the first time: › Set the water softener. › Add 1.5Kg dishwasher salt and then fill the salt container with water. › Fill the Rinse Aid dispenser. › Fill in detergent. Instruction manual DI632 Please keep this instruction manual for future reference... -
Page 13: Water Softener
(GRAM/CYCLE) 0~0.94 6-11 10-20 7-14 1.0-2.0 12-17 21-30 15-21 2.1-3.0 18-22 31-40 22-28 3.1-4.0 23-34 41-60 29-42 4.1-6.0 35-55 61-98 43-69 6.1-9.8 °dH=1.25 °Clarke=1 1.78°fH=0.178mmol/l The manufactory setting: H3 Instruction manual DI632 Please keep this instruction manual for future reference... -
Page 14: Loading The Salt Into The Water Softener
› Only fill with salt just before running a cycle. This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion. Instruction manual DI632 Please keep this instruction manual for future reference... - Page 15 Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled. › If salt has spilled, run a soak or rapid programme to remove it. Instruction manual DI632 Please keep this instruction manual for future reference...
-
Page 16: Rinse Aid Dispenser
Close the cap. Pour the rinse aid into the dispenser, Pour the rinse aid into the dispenser, being careful not to overfill. being careful not to overfill. Instruction manual DI632 Please keep this instruction manual for future reference Close the cap. - Page 17 4. If there is no operation for 5 seconds, the setting will be successful. N OT E : Press the power button to cancel the setting. Instruction manual DI632 Please keep this instruction manual for future reference...
-
Page 18: Detergent Dispenser
Therefore please use long programmes when using detergent tablets, to ensure the complete removal of detergent residuals. Instruction manual DI632 Please keep this instruction manual for future reference... - Page 19 N OT E : › Be aware that depending on the soiling of water, setting may be different. › Please observe the manufacturer’s recommendations on the detergent packaging. Instruction manual DI632 Please keep this instruction manual for future reference...
-
Page 20: Loading The Dishwasher Baskets
› Some types of glasses can become dull after a large number of washes. › Silver and aluminium parts have a tendency to discolour during washing. › Glazed patterns may fade if machine washed frequently. Instruction manual DI632 Please keep this instruction manual for future reference... - Page 21 › Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy. N OT E : Very small items should not be washed in the dishwasher as they could easily fall out of the basket. Instruction manual DI632 Please keep this instruction manual for future reference...
- Page 22 The maximum diameter advised for plates in front of the detergent dispenser is of 19cm, this is to not hamper the opening of it. Instruction manual DI632 Please keep this instruction manual for future reference...
- Page 23 Dinner plates Melamine dessert plates Dinner plates Dinner plates NOTE: Baskets loaded according to EN60436. NOTE: N OT E : Baskets loaded according to EN60436. Baskets loaded according to EN60436. Instruction manual DI632 Please keep this instruction manual for future reference...
- Page 24 You can also remove it when it is not required for use. lean the tall glasses against it. You can also remove it when it is not required for use. Instruction manual DI632 Please keep this instruction manual for future reference...
- Page 25 Do not let any item extend through the bottom. Always load sharp utensils with the sharp point down. Instruction manual DI632 Please keep this instruction manual for future reference...
-
Page 26: Wash Cycle Table
EN 50242, as follows: › Rinse aid setting: MAX Capacity: 9 setting Positio n Upper basket: upper wheels on rails Instruction manual DI632 Please keep this instruction manual for future reference Rinse aid setting: 6 Pl:0.49w; Po:0.45w. -
Page 27: Programming The Dishwasher
1. Open the door a little. 2. After the spray arms stop working, you can open the door completely 3. Add forgotten dishes 4. Close the door 5. The dishwasher will start running again Instruction manual DI632 Please keep this instruction manual for future reference... -
Page 28: Auto Open
It is normal that the dishwasher is wet inside. Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one. Instruction manual DI632 Please keep this instruction manual for future reference... -
Page 29: Cleaning And Maintenance
Improper replacement of the filter may reduce the performance level of the The entire filter assembly should be cleaned once a week. and damage dishes and utensils. Step 1 Turn the filter in anti-clockwise directi ： Instruction manual DI632 Please keep this instruction manual for future reference... - Page 30 › The dishwasher must never be used without the filters. › Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage. Instruction manual DI632 Please keep this instruction manual for future reference...
- Page 31 5. Remove the filter at the bottom of the dishwasher and use a sponge to soak up water in the sump. N OT E : If your dishwasher cannot work because of the ice build up, please contact a qualified plumber or serviceman. Instruction manual DI632 Please keep this instruction manual for future reference...
- Page 32 This will help the door seals to last longer and prevent odours from forming within the appliance. Instruction manual DI632 Please keep this instruction manual for future reference...
- Page 33 One of the factors that causes odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring. Instruction manual DI632 Please keep this instruction manual for future reference...
-
Page 34: Installation Instructions
One side of the cabinet sink should be chosen to facilitate the connection of drain hoses of the dishwasher. N OT E : Please check the accompanying installation accessories (fixing for aesthetic door panel). Instruction manual DI632 Please keep this instruction manual for future reference... - Page 35 H O W TO D I S C O N N E C T T H E S A F E T Y S U P P LY H O S E 1. Turn off the water. 2. Unscrew the safety supply hose from the faucet. Instruction manual DI632 Please keep this instruction manual for future reference...
- Page 36 Space between cabinet bottom and floor 600mm F I G U R E 2 Minimum space when the door is opened. Dishwasher Cabinet Door of dishwasher Minimum space of 50mm Instruction manual DI632 Please keep this instruction manual for future reference...
- Page 37 450 0.2 be processed in 2 - Ø2( 8) accordance with the illustrated dimensions. 20 (MAX) 8 - Ø2( 8) 4 - Ø2( 8) (Unit: mm) Instruction manual DI632 Please keep this instruction manual for future reference...
- Page 38 1. Remove the short screws insert the four long four short . Remove the four screws short screws screws insert the four long screws 2. Insert the four long screws Instruction manual DI632 Please keep this instruction manual for future reference...
- Page 39 Drain pipe NOTE NOTE The top of the hose The top of the hose must be less than must be less than 1000mm. 1000mm. 40mm Instruction manual DI632 Please keep this instruction manual for future reference Drain pipe Drain pipe...
- Page 40 flat screw driver and turn the front feet until the dishwasher is level. 9. The dishwasher must be secured in place. Fix the side with screws. Instruction manual DI632 Please keep this instruction manual for future reference...
- Page 41 Feet extensions are supplied. These can be fitted by inserting into the base of the existing feet, and tightening the locking nut at the top of the feet extensions to secure them into position. Instruction manual DI632 Please keep this instruction manual for future reference...
- Page 42 Have a proper outlet installed by a qualified electrician. WA R N I N G : After installation, please make sure to keep this manual. The content of this manual is very helpful to the users. Instruction manual DI632 Please keep this instruction manual for future reference...
- Page 43 6. The inlet and drain hoses are not knotted. 3. There is no leakage at the 7. All packing materials and printings should be connection points. taken out from the dishwasher. 4. The wires are tightly connected. Instruction manual DI632 Please keep this instruction manual for future reference...
-
Page 44: Troubleshooting
Traces of salt have cutlery adding dishwasher salt. gotten into the wash cycle. The lid of the softer Check the lip. Ensure the fix is fine. is loose Instruction manual DI632 Please keep this instruction manual for future reference... - Page 45 Aluminium utensils have rubbed Use a mild abrasive cleaner to eliminate those marks. on dishes against dishes. Detergent left in Dishes block detergent cups. Re-loading the dishes properly. dispenser cups Instruction manual DI632 Please keep this instruction manual for future reference...
- Page 46 The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model. For more info and to order spares, please contact Caple service or visit our website www.caple.co.uk Instruction manual DI632...
-
Page 47: Technical Information
550mm (with the door closed) D E P T H ( D 2 ) : 1150mm (width the door opened 90°) Depth (D2) 1150mm (with the door opened 90°) Instruction manual DI632 Please keep this instruction manual for future reference... -
Page 48: Caple Contact Details
Caple Service T: 0117 938 1900 Fourth Way E: service@caple.co.uk Avonmouth www.caple.co.uk Bristol BS11 8DW...
