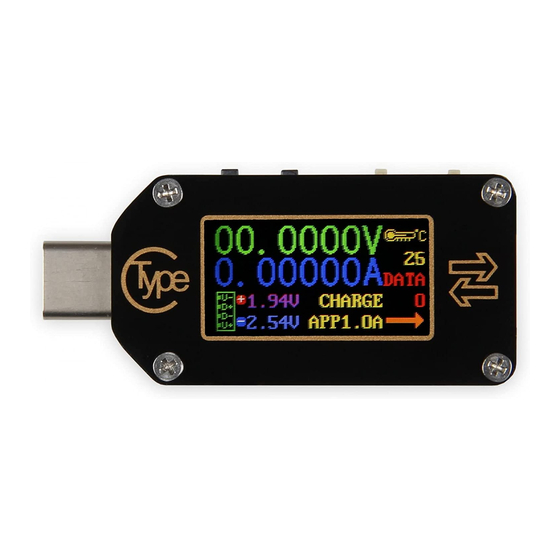

- Page 1 JT-TC66C Low Cost USB 3.0 Volt- and Amperemeter 1. GENERAL INFORMATION Dear customer, Thank you for choosing our product. In the following, we will show you what you need to consider during setup and use. Should you unexpectedly encounter problems during use, please feel free...
- Page 2 2. SETTING UP & NAVIGATION Simply plug in the TC66C measuring device into an USB-C interface of your device. The TC66C is immediately ready for use. This measuring device has following keys and functions: 1 (K1): Switches between the values or opens the menu. 2 (K2): Press long to open or leave the menu.
- Page 3 3. USAGE OF THE DEVICE When the measuring instrument is switched on, the last active menu is automatically called up. A total of eight different menus are available, through which you can na- vigate using the K1 and K2 keys. Press and hold the K2 button to open the submenu in the respective menu.
- Page 4 3.2 RECORD MENU 1. Recording status icon 2. Reset recorded data 3. Interval of data recording 4. Recording time 5. Percentage of used storage To make settings in the recording menu, press and hold K2. A small triangle points to the function you can set, you can then switch between the functi- ons with K2 and select the functions with K1.
- Page 5 3.5 PROTOCOL TRIGGER This menu allows you to initiate a quick charge protocol even if your load does not have this quick charge function. ATTENTION! This function increases the output voltage of the USB-C port. Make sure that your connected load is compatible or remove it. Keep K2 pressed to enter the menu.
- Page 6 3.7 SYSTEM INFORMATION In this menu you can display the system information. 1. Serial number of the device 2. Number of starts 3. Time since the device has been switched on 4. Firmware version 3.8 SIMPLIFIED MEASUREMENT OVERVIEW This simplified measurement overview only shows the current voltage(1), displays the actual current(2), the actual power(3) and the actual current flow direction(4).
- Page 7 We will send you a parcel stamp with which you can return the device to us free of charge. For this purpose please contact us by e-mail at Service@joy-it.net or by phone to us. Information on packaging: If you do not have suitable packaging material or do not want to use your own, please contact us and we will send you suitable packaging.
