Joy-it JT-AT34 Quick Start Manual

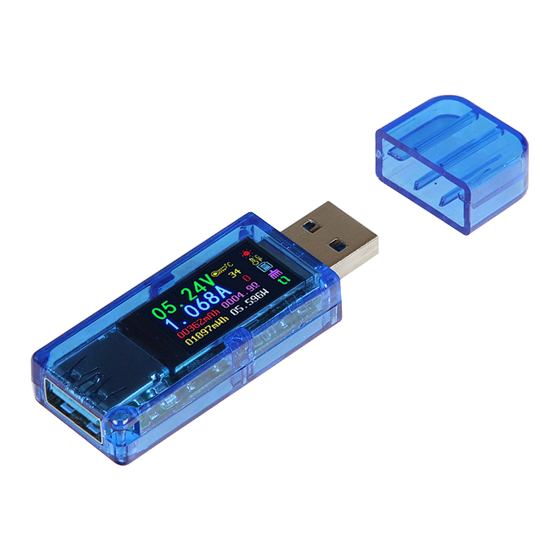

Low cost usb 3.0 volt / ampere measuring instrument

JT-AT34

Low Cost USB 3.0 Volt / Ampere measuring instrument

1. GENERAL INFORMATION

Dear customer,

thank you for choosing our product. In the following, we will show you how

to use your product.

Should you encounter any unexpected problems during use, please do not

hesitate to contact us.

Table of Contents

Need help?

Do you have a question about the JT-AT34 and is the answer not in the manual?

Page 1 JT-AT34 Low Cost USB 3.0 Volt / Ampere measuring instrument 1. GENERAL INFORMATION Dear customer, thank you for choosing our product. In the following, we will show you how to use your product. Should you encounter any unexpected problems during use, please do not...
Page 2 2. LAUNCH & NAVIGATION Plug the AT34 measuring instrument in a free USB port of your device. The instrument is immediately ready for use. The meter has two different surfaces: Main measuring surface QuickCharge detection surface By briefly pressing the button on the back of the unit, you can switch between the two surfaces.
Page 3 3. FUNCTIONS The main measuring surface offers an overview of the following data: 1: Voltage reading 2: Current reading 3: Accumulated capacity 4: Accumulated energy 5: Temperature reading 6: Number of the current data group 7: Load equivalent impedance 8: Power reading The QuickCharge recognition interface also provides an overview of the following data: 1: D+ (DP): positive signal level...
Page 4 We send you a parcel stamp with which you can send us your old appliance free of charge. For this possibility, you must contact us via e-mail at service@joy-it.net or via telephone. Information about package: Please package your old appliance safe during transport. Should you not have a suitable packaging material or you do not want to use your own material, you can contact us and we will send you an appropriate package.
