Summary of Contents for Joy-it JT-LDM01

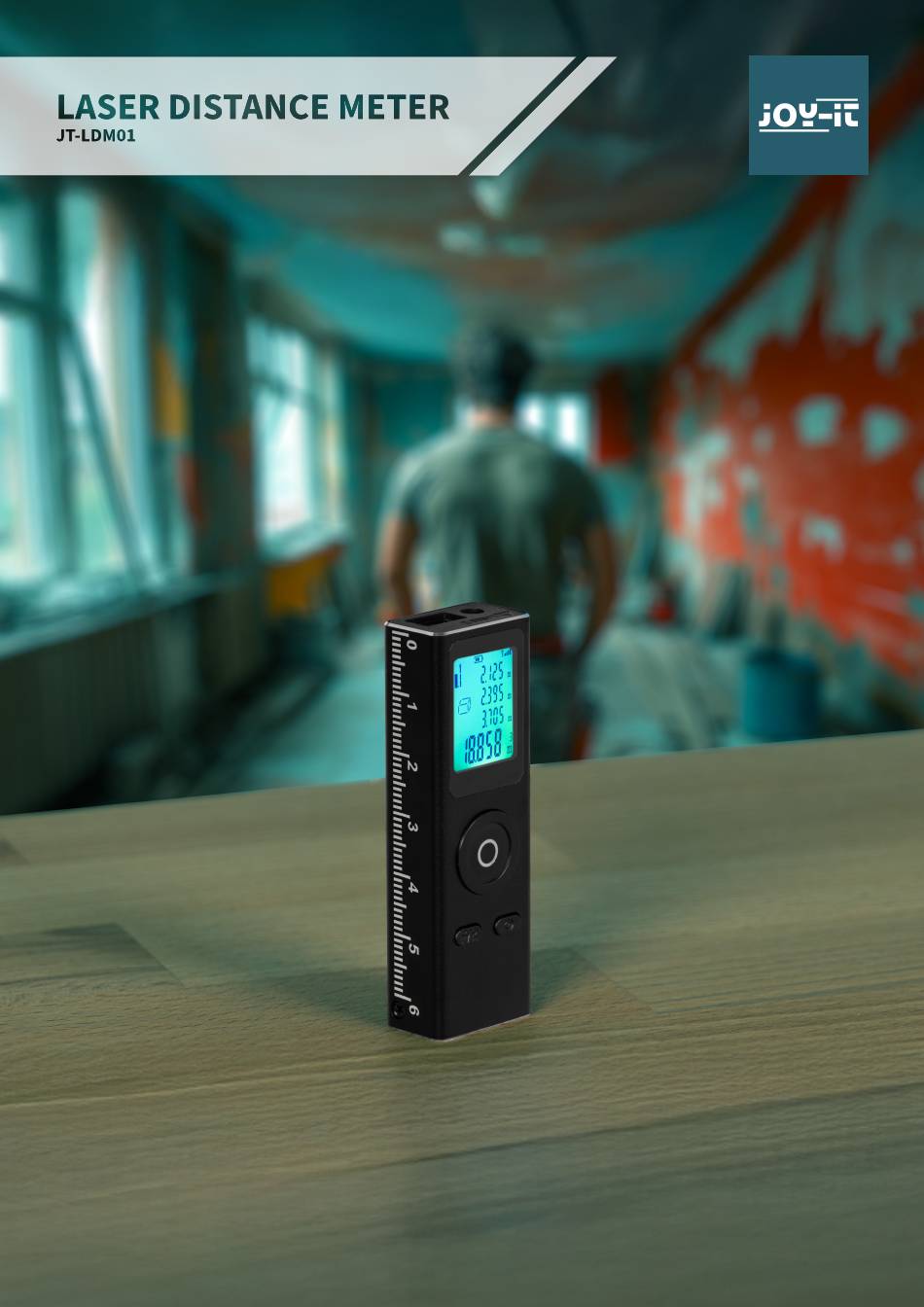

- Page 1 MANUAL...
- Page 2 1. General information............................ 2. Safety instructions............................3. Device................................4. Operation..............................4.1 General operation.......................... 4.2 Single measurement........................4.3 Continuous measurement......................4.4 Area & volume measurement....................... 4.5 Pythagoras measurement......................5. Other information............................6. Support................................
- Page 3 Pythagoras function, giving you maximum flexibility. In addition, the JT-LDM01 allows you to quickly and easily determine areas and volumes so that you always have a solid planning basis for your work. In difficult lighting conditions or in larger rooms, the continuous measurement helps you to achieve accurate results and maintain an overview.
- Page 4 3. DEVICE Laser opening LCD display Operating button Power button Function button Lanyard opening Charging interface Battery status Laser strength indicator Measuring position Maximum value Laser indicator Minimum value Measured value...
- Page 5 4. OPERATION 4.1 GENERAL OPERATION Briefly press the control button to switch the device on. Press and hold the power button for 2 seconds to switch the device off. You can also set the measuring position from which the measurement should start (measurement with front edge or rear edge of the measuring tool).
- Page 6 The measuring unit of the device can be set to meters (m), feet (ft) or inches (in). To make the setting, first switch the device off. Now press and hold the operating button. After about 2 seconds, the device automatically changes the measuring unit. To switch the backlight on or off, press and hold the power button for about one second.
- Page 7 4.5 PYTHAGORAS MEASUREMENT After you have switched on the device, press the function button until the following symbol appears: Note: The side to be measured next is shown flashing on the display. In this mode, a missing length (a) is automatically calculated from two measured lengths (b & c) using the Pythagorean theorem (a²...
- Page 8 POSSIBILITY TO RETURN NEAR YOU: We will send you a parcel stamp with which you can return the device to us free of charge. To do so, please contact us by e-mail at service@joy-it.net or by telephone. PACKAGING INFORMATION: Please pack your old appliance securely for transportation. If you do not have suitable packaging material...
- Page 9 We are also there for you after your purchase. If any questions remain unanswered or problems arise , we are also available to assist you by e-mail, telephone and ticket support system. E-MAIL: service@joy-it.net PHONE: +49 (0)2845 9360 - 50 You can find our current opening hours at: WWW.JOY-IT.NET/SERVICE...
