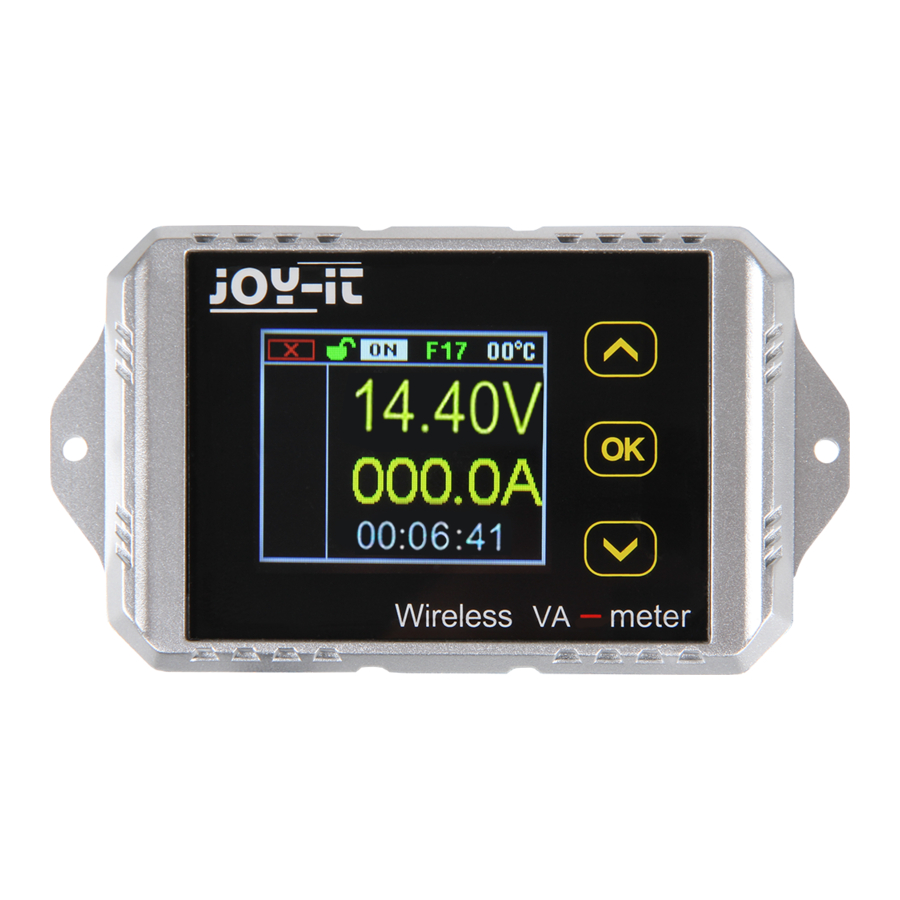

VAX-1030 & VAX-1100
Multifunction meter for the measurement of direct current circuits
1. GENERAL INFORMATION
Dear customer,
thank you for choosing our product. In the following, we will show you how
to use your product.
Should you encounter any unexpected problems during use, please do not
hesitate to contact us.
The measuring instruments of the VAX series are multimeter which
transmit the measurement results to the display via a wireless 2.4 GHz
technology. A TFT-LCD shows the measured values clearly and enables a
comfortable operation.
The measuring instruments are safeguarded against overvoltage,
undervoltage and overcurrent. In operation with batteries, these devices
can detect automatically the direction of the current flow and displays the
battery capacity in real time.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Joy-it VAX-1030
Summary of Contents for Joy-it VAX-1030

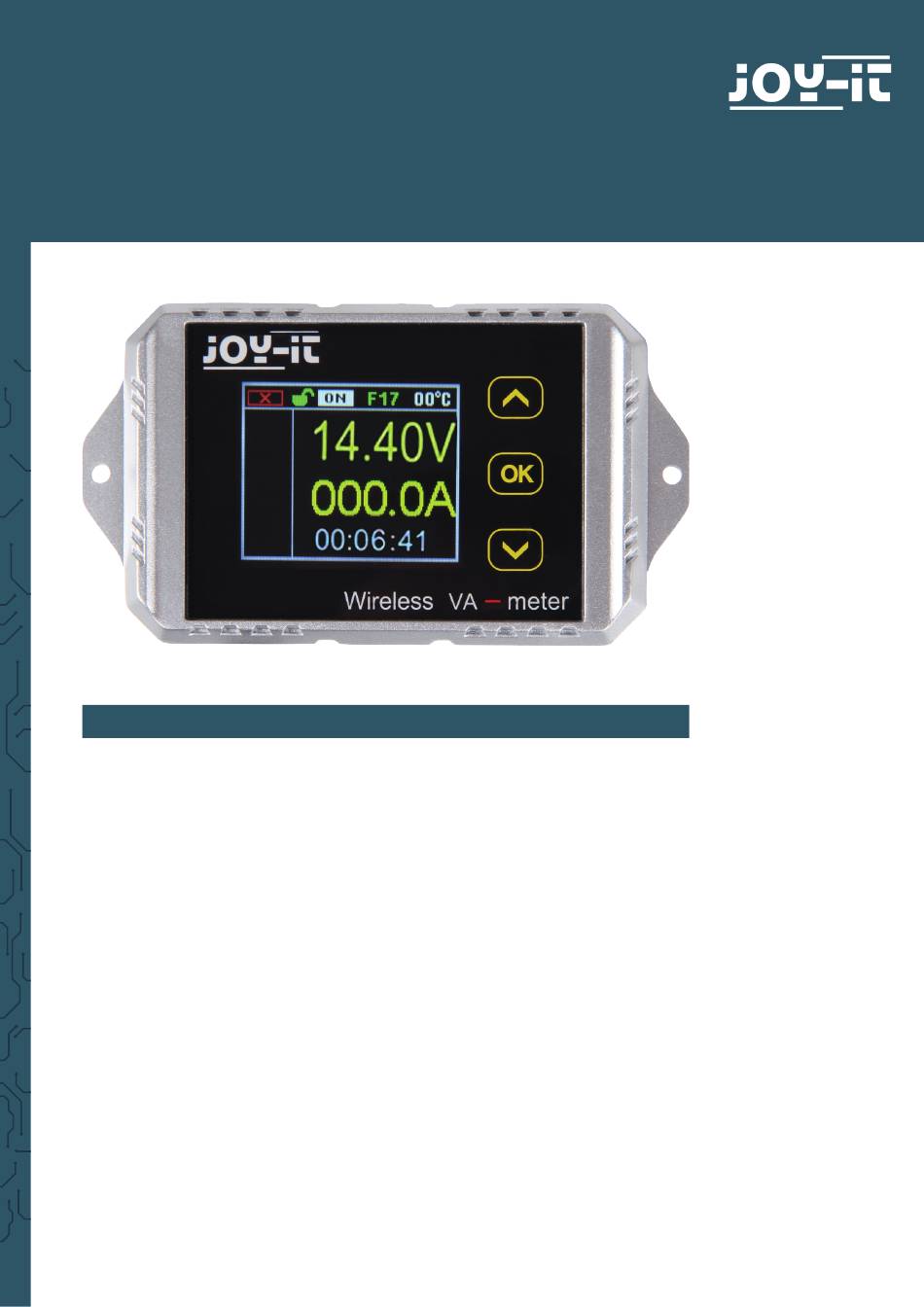

- Page 1 VAX-1030 & VAX-1100 Multifunction meter for the measurement of direct current circuits 1. GENERAL INFORMATION Dear customer, thank you for choosing our product. In the following, we will show you how to use your product. Should you encounter any unexpected problems during use, please do not hesitate to contact us.
- Page 2 2. TECHNICAL SPECIFICATIONS Model VAX-1030 VAX-1100 Measuring range voltage 0 - 100 V 0 - 100 V Resolution voltage 0,01 V 0,01 V Measuring range current 0 - 30 A 0 - 100 A Resolution current 0,01 A 0,1 A...
- Page 3 3. DIMENSIONS IN MM 4. DISPLAY The measuring instrument can be connected with the display via a cable or wireless. If the connection is wireless, there are two opportunities to power the display. You can use the mUSB port (5 V) or the JST port (8 - 16 V). mUSB port JST port...
- Page 4 5. CONNECTION VAX-1030 power load battery charger source If the instrument is integrated in the circuit like in the left illustration, it is possible to measure DC current circuits and the discharge of batteries.
- Page 5 VAX-1100 For a measuring range from 10 to 100 V, the instrument must be connected like that: power load battery charger source These illustrations display display how the VAX1100 must be connected for a measuring range from 10 to 100 V. Please note that the jumper must be pinned on position 2W .
- Page 6 Connection between a relay and the VAX1100 power load battery charger source You must note among the usage with a relay that the relay must be designed for the expected voltage and current in that specific construction. 6. OPERATION There are displayed 3 possible symbols which are designed for the verification of the connection.
- Page 7 Hereby, the undervoltage protection can be activated. With “OK“ you can change the value, if the “LVP“ value is “0“, the function is deactivated. This function shifts the relay to interrupt the circuit. Hereby, the overvoltage protection can be activated. With “OK“...
- Page 8 If any questions remain open or problems arise after your purchase, we are available by e-mail, telephone and with a ticket support system to answer these. E-Mail: service@joy-it.net Ticket-System: http://support.joy-it.net Telephone: +49 (0)2845 98469 – 66 (10 - 17 o‘clock) For further information visit our website: www.joy-it.net...
