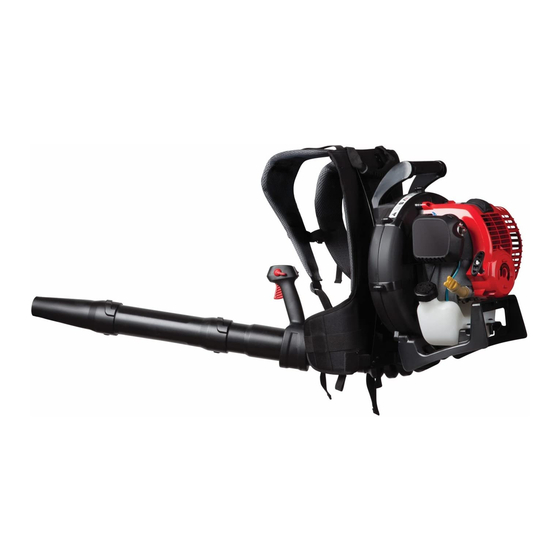

Troy-Bilt TB4BP EC Fast Assembly Manual

Installing the Upper
Installing the Flex Tube
Blower Tube
1. Place a hose clamp
1. Place a hose clamp over
over the end of the Flex
the other end of the Flex
Tube (A).
Tube (C).
2. Slide the end of the
2. Slide the
Flex Tube with the clamp
with the clamp on it over the
on it over the elbow tube
top end of the upper blower
(B).
tube (D).
3. Align the bump on the
3. Align the bump on the
Flex Tube with the bump
Flex Tube with the bump on
on the elbow tube.
the upper blower tube.
4. Tighten the screw on
4. Tighten the screw on
the hose clamp to secure
the hose clamp to
the Flex Tube to the
secure the Flex
elbow tube.
Tube to the
B
upper blower
tube.
A
IMPORTANT: READ THE OPERATOR'S MANUAL THOROUGHLY AND FOLLOW
THE SAFE OPERATION PRACTICES WHILE OPERATING THE UNIT
Read and understand all instruction, warning and danger labels on the unit.
ASSEMBLY TOOLS REQUIRED:
• T-20 Torx® Screwdriver
• Flat-head Screwdriver
Installing the Blower Tubes
and Nozzle
1. Align the bump slot on the
top end of each tube with the
bump on the bottom end of
1
the blower tube above it (A).
2. Insert each bump into each
bump slot (B).
3. Twist the tubes as shown until
the bumps lock into
place (C).
en
d of the hose d of the hose
A
D
A
C
2
3
Tilt the unit backwards 30°. Remove
the oil plug from the back of the
engine and pour the entire bottle
of 4-cycle oil into the fill hole.
NOTE: Do not mix gas and oil.
B
C
4
Remove the fuel cap. Place the gas
B
container's spout into the fill hole in
the fuel tank. Do not overfill.
C
778-12449 P00
Lea la traducción en Español en el manual.
30°
FLIP OVER FOR
Fast Start Guide
