- Page 1 CoreStation INSTALLATION GUIDE Version 1.05 English EN 101.00.CS-40 V1.05A...
-
Page 2: Table Of Contents
CONTENTS Safety information Product Specifications Instructional icons Dimensions Introduction FCC compliance information Document Number Components Appendices Accessory Disclaimers Name and function of each part Copyright Notice Open Source License GNU General Public License Installation TERMS AND CONDITIONS GNU Lesser General Public License Battery OpenSSL License Original SSLeay License... -
Page 3: Safety Information
Safety information Please read this safety instructions before you use the product to prevent injury to yourself and others and to prevent property damage. The term 'product' in this manual refers to the product and any items provided with the product. Instructional icons Warning: This symbol indicates situations that could result in death or severe injury. - Page 4 Safety information Caution Installation Do not install the product under direct sunlight or UV light. • This may result in product damage, malfunction, discoloration, or deformation. Do not install the power supply cable in a location where people pass by. •...
-
Page 5: Introduction
Title / Description EN 101.00.CS40 V1.04A CoreStation Installation Guide EN 102.00.CS40 V1.00A CoreStation Setup Manager User Guide 201.00.CS40 V1.00A CoreStation Intelligent Biometric Controller: Quick Guide EN 102.00.BS2 V1.8.5A BioStar 2.8.5 Administrator Guide EN 101.00.BS2 V1.8.5A BioStar 2.8.5 Installation Guide EN 201.00.BS2 V1.01A... -
Page 6: Accessory
• Fixing screws for the enclosure, CoreStation, and the power supply cable are included in the ENCR-10 package. Use each screw correctly by following the details below. - Fixing screws for the enclosure (diameter: 4 mm, length: 25 mm) x 4... -

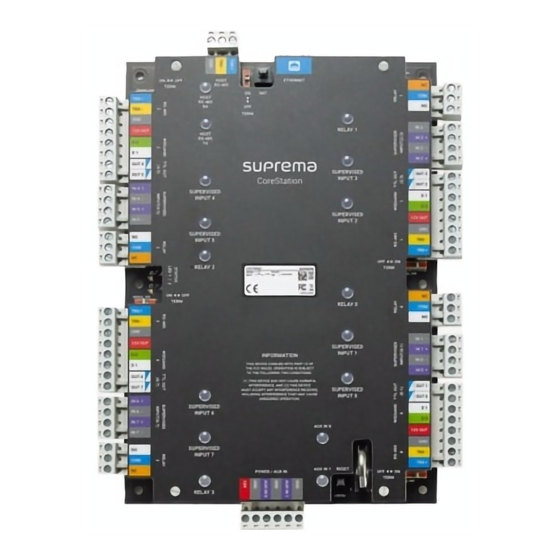

Page 7: Name And Function Of Each Part
Introduction Name and function of each part... - Page 8 Introduction Name Name HOST RS-485 connection RESET button HOST RS-485 terminating resistance switch AUX IN (0, 1) connection INIT button CS-40 power connection (DC 12V IN) Ethernet connection Relay 3 connection Relay 1 connection TTL input (6, 7) or supervised input (6, 7) connection TTL input (2, 3) or supervised input (2, 3) TTL output (6, 7) connection connection...
- Page 9 Introduction Communication status LED Status HOST RS-485 TX Orange flashing: Transmitting RS-485 data HOST RS-485 RX Green flashing: Receiving RS-485 data RELAY (0 ~ 3) Red lighting: Relay operation TTL input • Green lighting: Normal Close • Off: Normal Open SUPERVISED INPUT (0 ~ 7) Supervised Input •...
- Page 10 Introduction CS-40 status LED The status of CS-40 can be confirmed through STATUS LED 1 / 2 located on the left side from the front unit of the product. These status LEDs show the status of Ethernet, RS-485 0, RS-485 1, RS-485 2, RS-485 3, RS-485 HOST, and system in order for 1 second each.
- Page 11 DM-20 BioStar 2 Mobile Card Card Card Card Card Fingerprint Reader Reader Reader Reader Reader Reader Internet Web Browser CoreStation (BioStar 2 Client) Card Card Remote Access Fingerprint Reader Reader Reader Card / Fingerprint Elevator Panel OM-120 Reader Elevator Control...
- Page 12 Introduction Overall Connection Diagram The enclosure contains an LED control board, power distribution board, power supply, battery, and tamper. • Do not connect to A receptacle controlled by A switch.
-
Page 13: Installation
Installation Fix a spacer on the position to mount CS-40 using a fixing screw. Fix the product on top of the fixed spacer firmly using a fixing screw. Battery Insert the battery velcro strap into the enclosure and secure the battery. -
Page 14: Power Connection
Installation Power Connection DC Power Power failure signal (AUX) • Make sure to use separate power for the access control device and CS-40. • Use the correct power specifications (12V, 3A). • It is recommended to connect and use an Uninterruptible Power Supply (UPS) to prevent power failure. Power (Enclosure) •... -
Page 15: Network Connection
Installation Network connection TCP/IP LAN connection (connecting to a hub) You can connect the product to a hub using a general type CAT-5e cable. LAN connection (connecting to a PC directly) CS-40 has automatic MDI/MDI-X function, so it can be connected to a PC directly using a normal type CAT-5e cable. -
Page 16: Rs-485 Connection
Installation RS-485 Connection CS-40 supports 5 RS-485 ports, and up to 31 devices can be connected to each RS-485 port. • The number of RS-485 devices connected to CS-40 cannot exceed 64. • Use an AWG24 twisted pair with a maximum length of 1.2 km for the RS-485 cable. •... -
Page 17: Relay
Installation Relay Fail Safe Lock In order to use the Fail Safe Lock, connect the NC relay as shown in the figure below. There is normally a current flowing through the relay for the Fail Safe Lock. When the relay is activated, blocking the current flow, the door will open. If the power supply to the product is cut off due to a power failure or an external factor, the door will open. -
Page 18: Wiegand In
Installation Wiegand IN Other manufacturer's device Door sensor and Exit button SUPERVISED INPUT terminals No. 0 ~ No. 7 can be set to be used for normal TTL input or supervised input. Door sensor Exit button Door... -
Page 19: Aux In
• For more information on CS-40 Setup Manager, refer to the user guide. To download the user guide, visit the Suprema website (https://www.supremainc.com). • You can verify the current version of BioStar2 software When CS-40 is reprogrammable when connected to a... -
Page 20: Product Specifications
Supervised Input 8 ch (TTL input selectable) TTL Output 8 ch AUX Input 2 ch (AC POWER FAIL, Tamper) CoreStation - Voltage: 12 VDC, Current: Max. 3 A Power Power Supply (SMPS) AC INPUT - 110-240 VAC, 50/60 Hz Power Output Voltage: 12 VDC / Current: Max. -
Page 21: Dimensions
Product Specifications Dimensions (Unit: mm) * The tolerance is ±0.3 mm. -
Page 22: Fcc Compliance Information
• Modifications: Any modifications made to this device that are not approved by Suprema Inc. may void the authority granted to the user by the FCC to operate this equipment. -
Page 23: Appendices
• Do not use a Suprema product in situations related to medical, rescue of human lives, or maintenance of life, as a person may be injured or killed due to product malfunction. If an accident occurs while a consumer is using the... -
Page 24: Gnu General Public License
Appendices GNU General Public License Version 3, 29 June 2007 Copyright © 2007 Free Software Foundation, Inc. <http://fsf.org/> Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble The GNU General Public License is a free, copyleft license for software and other kinds of works. The licenses for most software and other practical works are designed to take away your freedom to share and change the works. - Page 25 Appendices To “propagate” a work means to do anything with it that, without permission, would make you directly or secondarily liable for infringement under applicable copyright law, except executing it on a computer or modifying a private copy. Propagation includes copying, distribution (with or without modification), making available to the public, and in some countries other activities as well.
- Page 26 Appendices 3. Protecting Users' Legal Rights From Anti-Circumvention Law. No covered work shall be deemed part of an effective technological measure under any applicable law fulfilling obligations under article 11 of the WIPO copyright treaty adopted on 20 December 1996, or similar laws prohibiting or restricting circumvention of such measures.
- Page 27 Appendices d) Convey the object code by offering access from a designated place (gratis or for a charge), and offer equivalent access to the Corresponding Source in the same way through the same place at no further charge. You need not require recipients to copy the Corresponding Source along with the object code.
- Page 28 Appendices d) Limiting the use for publicity purposes of names of licensors or authors of the material; or e) Declining to grant rights under trademark law for use of some trade names, trademarks, or service marks; or f) Requiring indemnification of licensors and authors of that material by anyone who conveys the material (or modified versions of it) with contractual assumptions of liability to the recipient, for any liability that these contractual assumptions directly impose on those licensors and authors.
- Page 29 Appendices 11. Patents. A “contributor” is a copyright holder who authorizes use under this License of the Program or a work on which the Program is based. The work thus licensed is called the contributor's “contributor version”. A contributor's “essential patent claims” are all patent claims owned or controlled by the contributor, whether already acquired or hereafter acquired, that would be infringed by some manner, permitted by this License, of making, using, or selling its contributor version, but do not include claims that would be infringed only as a consequence of further modification of the contributor version.
- Page 30 Appendices 14. Revised Versions of this License. The Free Software Foundation may publish revised and/or new versions of the GNU General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.
-
Page 31: Gnu Lesser General Public License
Appendices GNU Lesser General Public License Version 3, 29 June 2007 Copyright © 2007 Free Software Foundation, Inc. <http://fsf.org/> Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. This version of the GNU Lesser General Public License incorporates the terms and conditions of version 3 of the GNU General Public License, supplemented by the additional permissions listed below. -
Page 32: Openssl License
Appendices b) Accompany the Combined Work with a copy of the GNU GPL and this license document. c) For a Combined Work that displays copyright notices during execution, include the copyright notice for the Library among these notices, as well as a reference directing the user to the copies of the GNU GPL and this license document. - Page 33 Appendices Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
-
Page 34: Original Ssleay License
Appendices Original SSLeay License Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com) All rights reserved. This package is an SSL implementation written by Eric Young (eay@cryptsoft.com). The implementation was written so as to conform with Netscapes SSL. This library is free for commercial and non-commercial use as long as the following conditions are adhered to. The following conditions apply to all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code;... - Page 35 QR code. http://www.supremainc.com/en/about/contact-us.asp © 2021 Suprema Inc. Suprema and identifying product names and numbers herein are registered trade marks of Suprema, Inc. All non-Suprema brands and product names are trademarks or registered trademarks of their respective companies.
