- Page 1 Enclosure INSTALLATION GUIDE Version 1.00 English EN 101.00.ENCR-10 V1.00A...
-
Page 2: Table Of Contents
CONTENTS Safety information Product Specifications Instructional icons Dimensions Introduction Appendices Components Disclaimers Name of each part Copyright Notice Installation Installing CoreStation Installing Output Module (OM-120) -
Page 3: Safety Information
Safety information Please read this safety instructions before you use the product to prevent injury to yourself and others and to prevent property damage. The term 'product' in this manual refers to the product and any items provided with the product. Instructional icons Warning: This symbol indicates situations that could result in death or severe injury. - Page 4 Safety information Caution Installation Do not install the product under direct sunlight or UV light. • This may result in product damage, malfunction, discoloration, or deformation. Do not install the power supply cable in a location where people pass by. •...
-
Page 5: Introduction
Introduction Components Enclosure (ENCR-10) Fixing screws for Fixing screws for PVC Anchor x4 Cable Tie x6 the enclosure x4 the device x6 Fixing screws for Core Terminal the power supply Earth Cable cable • Components may vary according to the installation environment. •... -
Page 6: Name Of Each Part

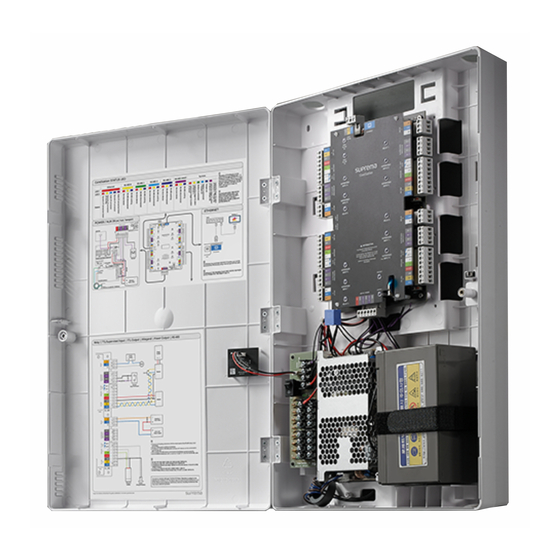

Power supply LED board Power distribution board • LED Status indicator & wiring guide labels are provided for CoreStation. For more information regarding Output Module, visit the Suprema website(https://www.supremainc.com) and refer to the installation guide for the product. -
Page 7: Installation
Installation This document describes how to install ENCR-10 and connect ENCR-10's components and devices (CoreStation & Output Module). For details on other wiring for each device, visit the Suprema website (https://www.supremainc.com) and refer to the installation guide for the device. - Page 8 Installation • The battery is sold separately. • If the dimension of the backup battery is larger than the recommended specification, it may not be able to be mounted in the enclosure or the enclosure may not close after it is mounted. Also, if the shape and dimension of the terminals are different, the battery cannot be connected using the cable provided.
- Page 9 Installation After positioning CoreStation in the enclosure, fix it with the fixing screws. POWER / AUX IN Connection You can connect an Uninterruptible Power Supply (UPS) to prevent power failure. And a power failure detector or a dry contact output can be connected to the AUX IN terminal.
- Page 10 Use a backup battery with 12 VDC and 7 Ah or higher. This product was tested with 'ES7-12' battery of 'ROCKET'. It is recommended to use a battery corresponding to 'ES7-12'. • For details on other wiring such as Ethernet, RS-485, Relay, and Wiegand, visit the Suprema website (https:// www.supremainc.com) and refer to CoreStation installation guide.
-
Page 11: Installing Output Module (Om-120)
Installation Installing Output Module (OM-120) Securing the battery Insert the battery velcro strap into the enclosure and secure the battery. • Use a backup battery with 12 VDC and 7 Ah or higher. This product was tested with 'ES7-12' battery of 'ROCKET'. - Page 12 Installation Securing Output Module Check the position to install the Output Module in the enclosure. You can install two Output Modules in one enclosure. After positioning the Output Module in the enclosure, fix it with the fixing screws. POWER RS-485 RELAY 0 RELAY 1 RELAY 2...
- Page 13 Installation POWER / AUX IN Connection You can connect an Uninterruptible Power Supply (UPS) to prevent power failure. And a power failure detector or a dry contact output can be connected to the AUX IN terminal. AUX IN 1 TRX+ TRX- AUX IN 0 TERM...
- Page 14 RELAY 3 RELAY 4 RELAY 5 • For details on other wiring such as RS-485 or Relay, visit the Suprema website (https://www.supremainc.com) and refer to Output Module installation guide. • For more information, contact the Suprema technical support team (https://support.supremainc.com).
-
Page 15: Product Specifications
Product Specifications Category Feature Specifications Model Name ENCR-10 Supported products CoreStation (CS-40), Output Module (OM-120) • Battery status LED • AC status LED Material ABS Plastic General Operating temperature 0 °C ~ 50 °C Storage temperature -40 °C ~ 70 °C Operating humidity 0 % ~ 80 %, non-condensing Storage humidity... -
Page 16: Dimensions
Product Specifications Dimensions (Unit: mm) * The tolerance is ±0.3 mm. -
Page 17: Appendices
Information in this document is provided in connection with Suprema products. • The right to use is acknowledged only for Suprema products included in the terms and conditions of use or sale for such products guaranteed by Suprema. No license, express or implied, by estoppel or otherwise, to any intellectual property is granted by this document. - Page 18 QR code. http://www.supremainc.com/en/about/contact-us.asp © 2021 Suprema Inc. Suprema and identifying product names and numbers herein are registered trade marks of Suprema, Inc. All non-Suprema brands and product names are trademarks or registered trademarks of their respective companies.
