Series LFII Residential
Flush Horizontal Sidewall Sprinklers
4.2 K-Factor
General
Description

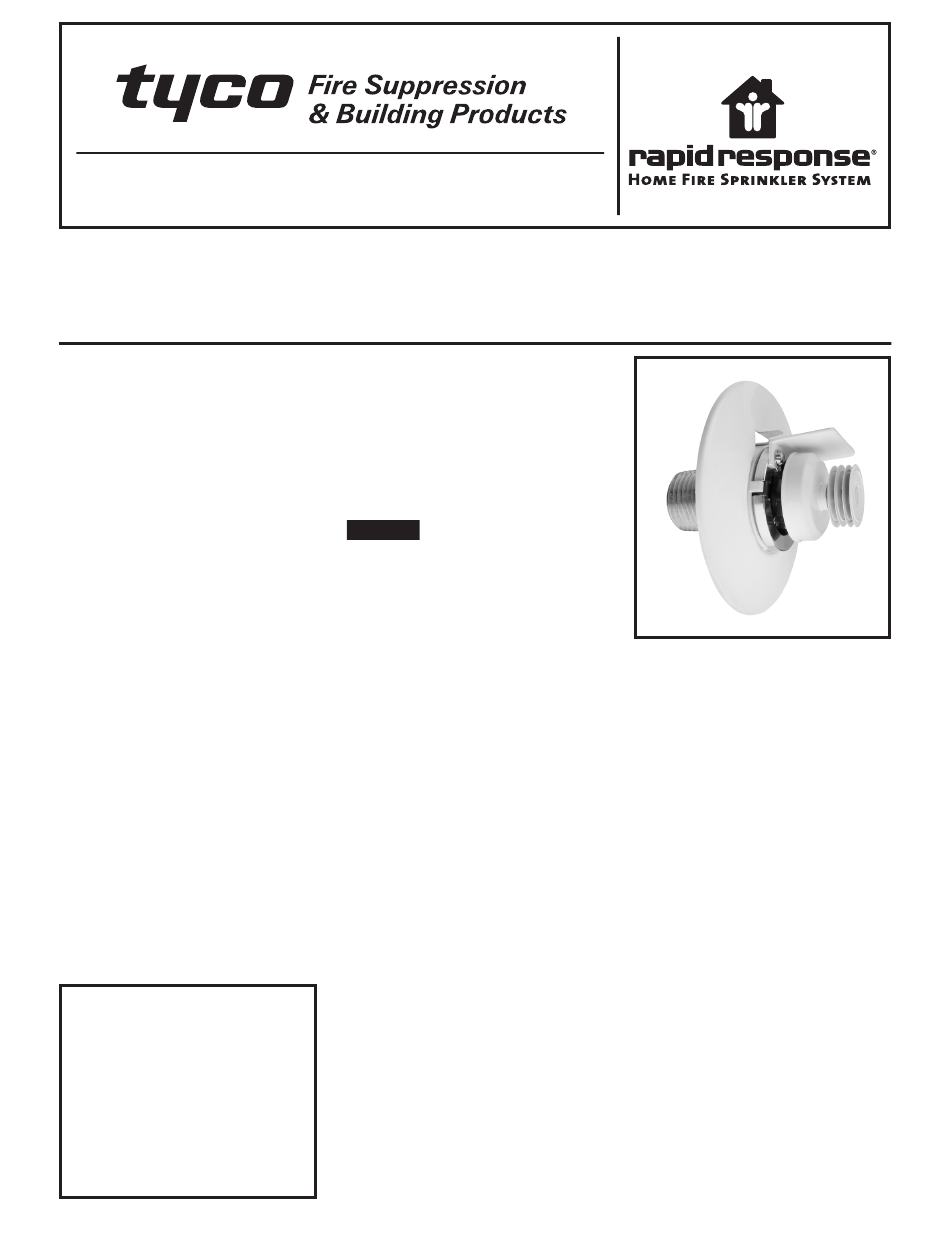

The TYCO RAPID RESPONSE Series
LFII Residential Flush Horizontal Side-
wall Sprinklers (TY2384) are decorative,
fast response, fusible solder sprinklers
designed for use in residential occu-
pancies such as homes, apartments,
dormitories, and hotels. When aesthet-
ics is the major consideration, the Se-
ries LFII Sprinklers (TY2384) should be
the first choice.
The Series LFII Sprinklers (TY2384)
are to be used in wet-pipe residential
sprinkler systems for one- and two
family dwellings and manufactured
homes per NFPA 13D; wet-pipe resi-
dential sprinkler systems for residen-
tial occupancies up to and including
four stories in height per NFPA 13R; or,
wet-pipe sprinkler systems for the resi-
dential portions of any occupancy per
NFPA 13.
The Series LFII Sprinklers (TY2384) has
a 4.2 (60,5) K-factor that provides the
required residential flow rates at re-
duced pressures, enabling smaller pipe
sizes and water supply requirements.
The flush design of the Series LFII
Sprinklers (TY2384) features a sepa-
rable escutcheon providing 3/16 inch
(4,8 mm) horizontal adjustment. This
adjustment reduces the accuracy to
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
Installation can permanently damage
a sprinkler system or its components
and cause the sprinkler to fail to
operate in a fire situation or cause it
to operate prematurely.
Page 1 of 6
www.tyco-fire.com
which the pipe drops to the sprinklers
must be cut to help assure a perfect fit
installation.
The Series LFII Sprinklers (TY2384) has
been designed with heat sensitivity and
water distribution characteristics prov-
en to help in the control of residential
fires and to improve the chance for oc-
cupants to escape or be evacuated.
NOTICE
The Series LFII Residential Flush Hori-
zontal Sidewall Sprinklers (TY2384)
described herein must be installed
and maintained in compliance with
this document and with the applica-
ble standards of the National Fire Pro-
tection Association, in addition to the
standards of any authorities having ju-
risdiction. Failure to do so may impair
the performance of these devices.
Owners are responsible for maintaining
their fire protection system and devices
in proper operating condition. The in-
stalling contractor or sprinkler manu-
facturer should be contacted with any
questions.
Model/Sprinkler
Identification
Number (SIN)
TY2384
Technical
Data
Approvals
UL and C-UL Listed
Maximum Working Pressure
175 psi (12,1 bar)
Discharge Coefficient
K= 4.2 GPM/psi
Temperature Rating
162°F/72°C
JULY 2010
Horizontal Adjustment
3/16
Finishes
Sprinkler and Escutcheon:
White, Chrome, or Black
Physical Characteristics
Body . . . . . . . . . . . . . . . .Copper Alloy
Deflector. . . . . . . . . . . . . . . . . Copper
Valve Cap . . . . . . . . . . . .Copper Alloy
Orifice Seal. . . . . . . . . . . . . . . . . PTFE
Heat Collectors . . . . . . . . . . . Copper

Operation

The sprinkler assembly contains a
small fusible solder element. When
exposed to sufficient heat from a fire,
the solder melts and enables the inter-
nal components of the sprinkler to fall
away. At this point the sprinkler acti-
vates with the deflector dropping into
its operated position (Figure 1C), per-
mitting water to flow.
1/2 (60,5 LPM/bar 1/2 )
inch (4,8 mm)
TFP425
