Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500

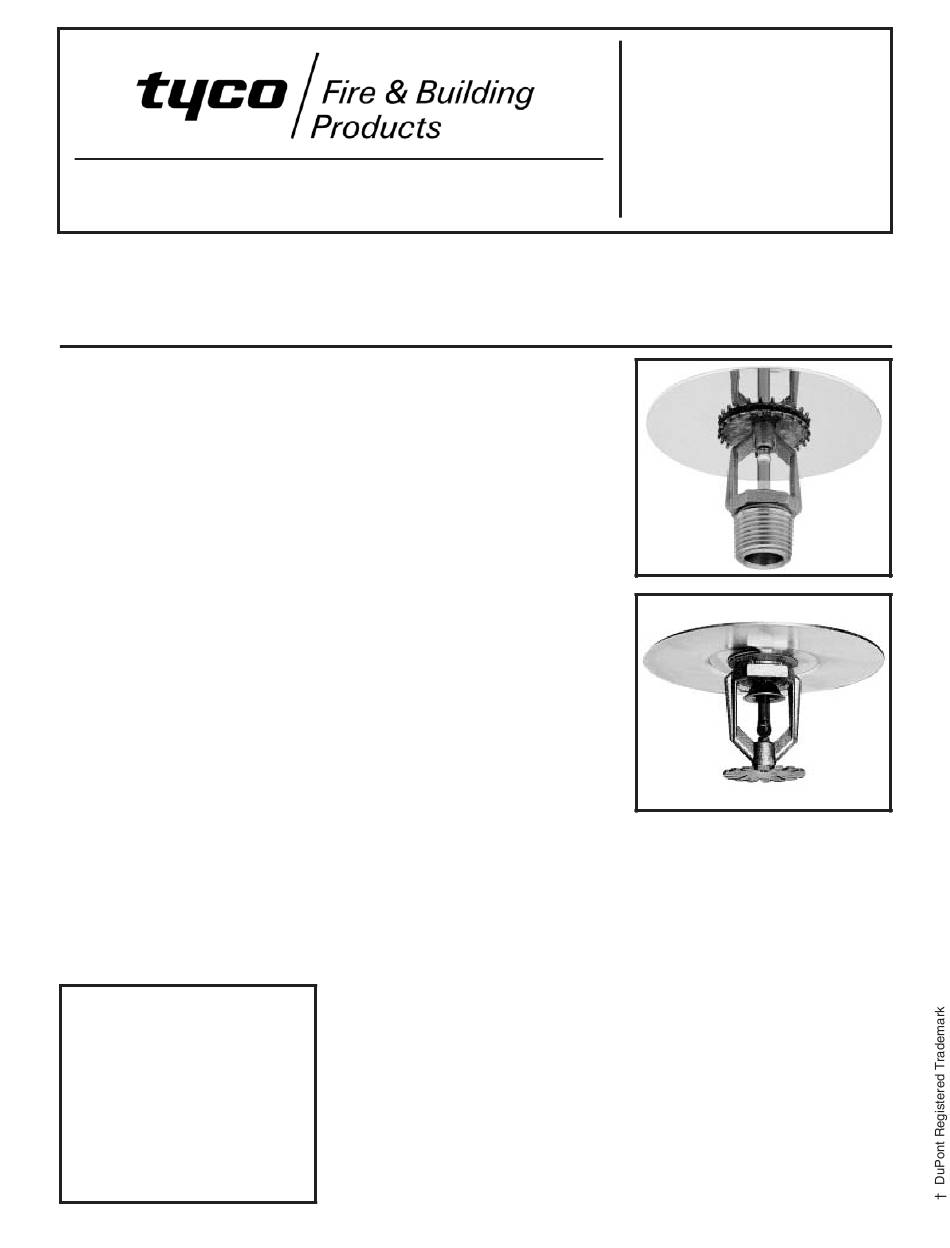

Series TY-B — 5.6 and 8.0 K-factor
Upright and Pendent Intermediate Level Sprinklers
Standard Response
General
Description
The Series TY-B, 5.6 and 8.0 K-factor
Upright and Pendent Intermediate
Level Sprinklers described in this data
sheet are automatic sprinklers of the
"standard response" 5 mm frangible
bulb type. They are "standard spray"
sprinklers intended for use in fire sprin-
kler systems designed in accordance
with the standard installation rules rec-
ognized by the applicable Listing or
Approval agency (e.g., UL Listing is
based on NFPA requirements). Both
the Pendent and Upright Sprinklers
produce a hemispherical water distri-
bution pattern below the deflector.
Intermediate Level Sprinklers are pri-
marily designed for use in rack storage
sprinkler systems where their ther-
mally sensitive elements must be
shielded from the water spray of higher
elevation sprinklers that could operate
earlier during a fire. Intermediate Level
Sprinklers are also used in other appli-
cations such as beneath open gridded
catwalks.
Corrosion resistant coatings, where
applicable, are utilized to extend the
life of copper alloy sprinklers beyond
that which would otherwise be ob-
tained when exposed to corrosive at-
mospheres. Although corrosion resis-
tant coated sprinklers have passed the
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and in-
stallation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 6
standard corrosion tests of the appli-
cable approval agencies, the testing is
not representative of all possible cor-
rosive atmospheres. Consequently, it
is recommended that the end user be
consulted with respect to the suitability
of these coatings for any given corro-
sive environment. The effects of ambi-
ent temperature, concentration of
chemicals, and gas/chemical velocity,
should be considered, as a minimum,
along with the corrosive nature of the
chemical to which the sprinklers will be
exposed.
WARNINGS
The Series TY-B Sprinklers described
herein must be installed and main-
tained in compliance with this docu-
ment, as well as with the applicable
standards of the National Fire Protec-
tion Association, in addition to the
standards of any other authorities hav-
ing jurisdiction. Failure to do so may
impair the performance of these de-
vices.
The owner is responsible for maintain-
ing their fire protection system and de-
vices in proper operating condition.
The installing contractor or sprinkler
manufacturer should be contacted
with any questions.
Model/Sprinkler
Identification
Numbers
TY3153 -
Upright 5.6K, 1/2"NPT
TY3251 -
Pendent 5.6K, 1/2"NPT
TY4153 -
Upright 8.0K, 3/4"NPT
TY4251 -
Pendent 8.0K, 3/4"NPT
JANUARY, 2005
Technical
Data
Approvals
UL and C-UL Listed.
FM and NYC Approved.
(Refer to Table A for complete approval
information including corrosion resis-
tant status.)
Maximum Working Pressure
175 psi (12,1 bar)
Discharge Coefficient
1/2
K = 5.6 GPM/psi
(80,6 LPM/bar
1/2
K = 8.0 GPM/psi
(115,2 LPM/bar
Temperature Ratings
Refer to Table A
Finishes
Sprinkler: Refer to Table A
1/2
)
1/2
)
TFP351

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TY-B Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Tyco TY-B Series

  • Page 1 Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500 Series TY-B — 5.6 and 8.0 K-factor Upright and Pendent Intermediate Level Sprinklers Standard Response standard corrosion tests of the appli- General cable approval agencies, the testing is not representative of all possible cor- Description rosive atmospheres.
  • Page 2 Page 2 of 6 TFP351 7/16" (11,1 mm) 1/2" 3-1/2" (88,9 mm) DIA, NOMINAL MAKE-IN SHIELD O-RING SCREW 7/16" UPRIGHT 2-3/16" (11,1 mm) SHIELD 2-3/8" (55,6 mm) MODEL S2 WRENCHING NOMINAL (60,3 mm) SHIELD FLATS MAKE-IN WRENCHING FLATS 1/2" 3-1/2" (88,9 mm) DIA, PENDENT UPRIGHT (FIELD ASSEMBLED - SEE INSTALLATION SECTION)
  • Page 3 TFP351 Page 3 of 6 SPRINKLER FINISH (See Note 5) TYPE TEMP. BULB NATURAL LEAD WAX OVER LIQUID BRASS*** COATED COATED LEAD COATED 135°F/57°C Orange UPRIGHT 155°F/68°C (TY3153) 1, 2, 3, 4 1, 2, 3, 4 1, 2, 3, 4 1, 2, 3, 4 175°F/79°C Yellow...
  • Page 4: Operation

    Page 4 of 6 TFP351 Physical Characteristics — Upright Sprinklers — Frame ... . . Bronze The Series TY-B Intermediate Level Button ..Brass/Copper Upright Sprinklers must be installed in Sealing Assembly .
  • Page 5: Care And Maintenance

    Authorities Having Jurisdiction. Mate- Care must be exercised to avoid dam- Specify: S2 Pendent Shield & O-Ring rials found by Tyco Fire Products to be for use with (specify 1/2" NPT or 3/4" age to the sprinklers - before, during,...
  • Page 6 NATURAL BRASS 155°F/68°C 8.0K PENDENT (3/4"NPT) TY4251 175°F/79°C 200°F/93°C 286°F/141°C 360°F/182°C TABLE C PART NUMBER SELECTION SERIES TY-B PENDENT SPRINKLERS (MODEL S2 PENDENT SHIELD & O-RING MUST BE SEPARATELY ORDERED) TYCO FIRE PRODUCTS, 451 North Cannon Avenue, Lansdale, Pennsylvania 19446...
