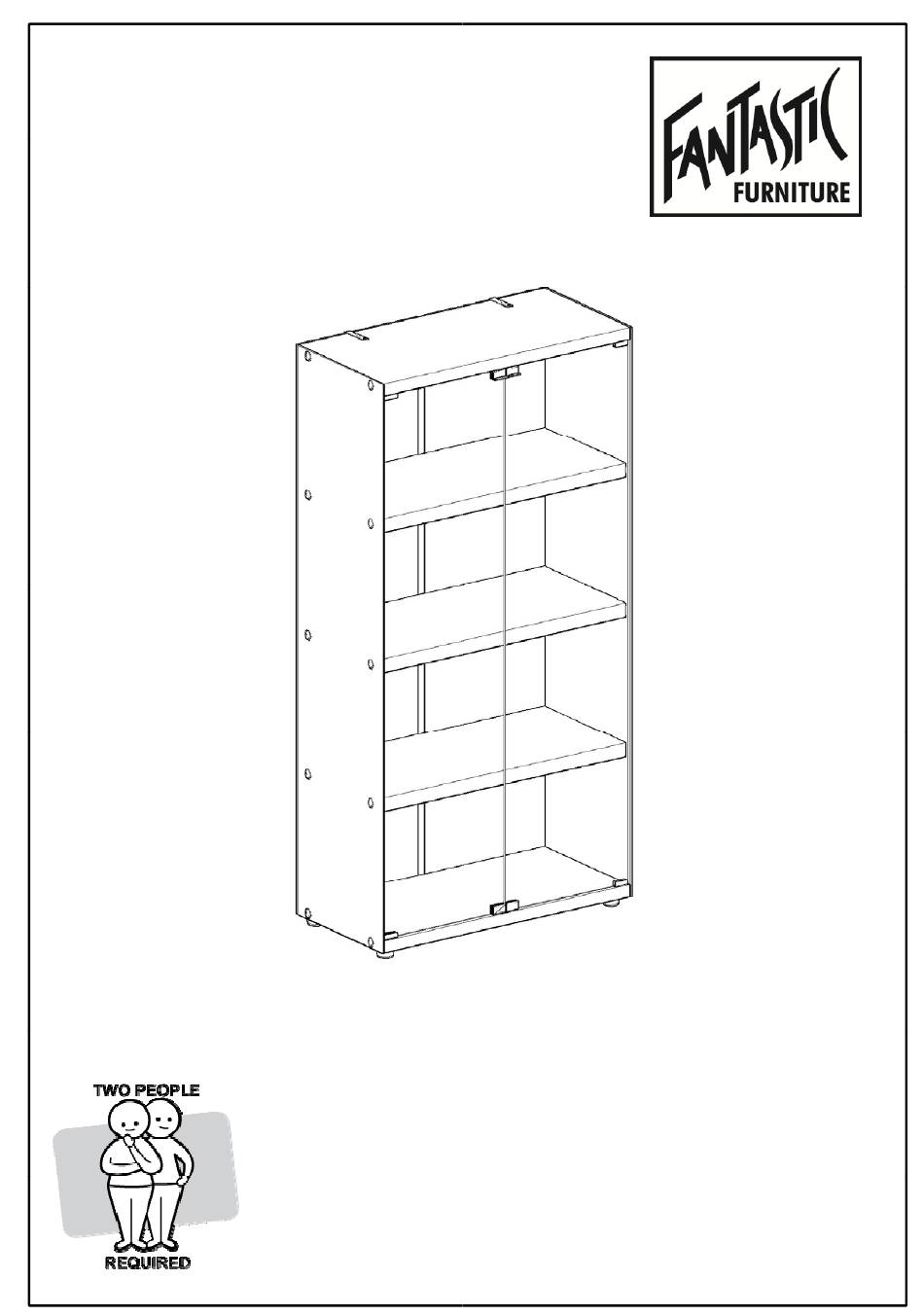

  • Page 1 Ver:1.1 GALLERY GALLERY Display Cabinet 4 SHELF www.fantasticfurniture.com.au...
  • Page 2 TEMPERED GLASS should be handled wit th care. Scratches, chips, sudden changes in temperature and hairline fractures may cause th he glass to break. This glass is designed to break into small, relatively harmless pieces and not sha arp fragments. Good to know - Never place extremely hot or cold objects direc ctly onto the glass surface.

  • Page 3: Useful Information

    Assembly checklis Make sure you have all the required tools. Read through the instructions carefully Never use power tools unless instructed. before you begin Identify and lay out all of the components Unless instructed, do not fully tighten screws before you begin assembly until the item is fully assembled Useful Information Useful Information...

  • Page 4: What You Need

    What You Need To assemble the product Left Back Right (P6) (P6) Back (P7) Left Panel (P4) Panel (P3) Other tools you need Phillips Head Screwdriver Shelf (P2) Shelf (P2) Right Panel Right Left (P5) Door Door Parts list (P9) (P8) Box 1: Base (P1);...
  • Page 5 Step 1 You will need 4x M4 x 22 mm 4 x Feet Screws (H3) (H2) Base Phillips Head (P1) Screwdriver Attach Feet (H2) to Base (P1) using 4 x Screws (H3 3) and tighten using Phillips Head Screwdriver. Step 2 You will need You will need (P3)
  • Page 6 Step 3 You will need (P3) (P2) 10 x Knob Bolt (P2) (H1) (P2) (P5) (P1) Attach Right Panel (P5) to Base (P1), 3 x shelf (P2 ) and Top Panel (P3) with 10 x Knob Bolts (H1). Step 4 You will need (P7) 14 x Knob Bolt...
  • Page 7 Step 5 Step c Step b You will need Step a 2x Door Hinges/ Phillips Head Hinge plates (H4) Screwdriver Attach hinges onto doors. Step a. Peel off backing of Hinge Plate (H4). Step b. Paste Hinge Plate (H4) onto two corners alo ng the short edge of the Door (P9).
  • Page 8 Step 7 You will need 4 x Magnetic Catch 4x Plastic Sleeve (H5) (H8) Phillips Head Screwdriver Fasten magnetic catch (H5) to the Top Panel(P3) a and Base (P1) Insert 1x Plastic Sleeve (H8) each into the Top (P3) ) and Base (P1). Place the Door (P11) with its hinge into the Plastic S Sleeve (H8) in Base (P1) Loosen the Door Hinge (H4) on the top of Door (P9...

  • Page 9: Job Co Mplete

    Step 9 You will need 2x M4 x 14 mm  2x Washers Screws (H9) (H10) Phillips head Screwdriver Reposition the cabinet. Attach the cabinet at its top to the Wall Straps (H11) using 2 x Screws (H9) and 2 x Washers (H10). Step 10 Job co mplete! In the interest of our environment Plea ase dispose of all packaging thoughtfully.
