fantastic furniture Garde Manual

Robe sliding door frame small
Hide thumbs Also See for Garde:

Advertisement

Table of Contents

Version 1.0

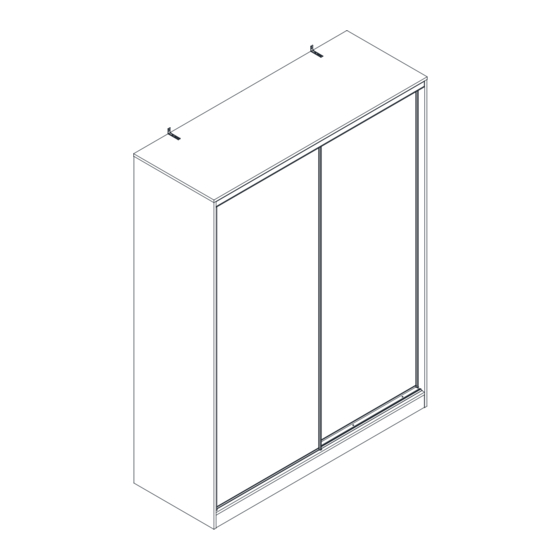

Garde
Two People
Robe Sliding Door Frame Small
fantasticfurniture.com.au
Required

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Garde and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for fantastic furniture Garde

Summary of Contents for fantastic furniture Garde

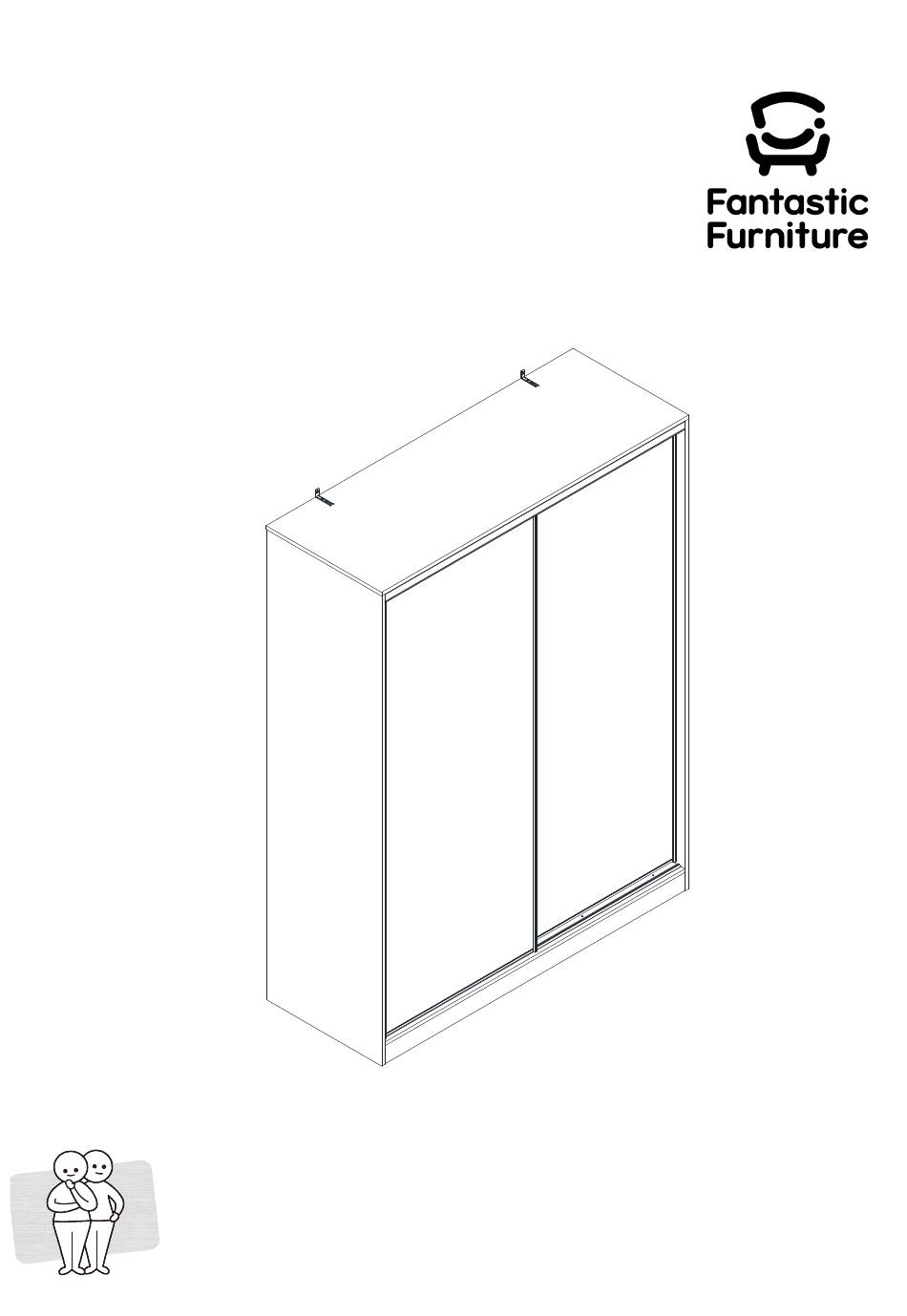

  • Page 1 Version 1.0 Garde Two People Robe Sliding Door Frame Small fantasticfurniture.com.au Required...
  • Page 2 Secure it! Reduce the risk of furniture tip-over accidents WARNING: ENSURE THE WALL BRACKET IS ATTACHED TO AVOID SERIOUS INJURY OR DEATH. To avoid any serious or fatal injury, a wall bracket has been provided with this product to prevent toppling. We strongly recommend that this product is permanently fixed to the wall or other suitable surface.
  • Page 3 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au Page 3...

  • Page 4: Assembly Checklist

    Assembly Checklist Read through the instructions carefully Make sure you have all the required tools. before you begin. Never use power tools unless instructed. Unless instructed, do not fully tighten Identify and lay out all of the screws until the item is fully assembled. components before you begin assembly.

  • Page 5: What You Need

    What you need to assemble the product Other tools you need Phillips Head Screwdriver Top Panel (P1) Top Track (P12) Side Rail (P8) Middle Rail (P9) Side Rail (P8) Side Rail (P8) Side Rail (P8) Left Side Right Fixed Shelf (P7) Left Fixed Shelf (P6) Right Side Panel (P3)
  • Page 6 Hardware Pack 36 x Dowels 20 x Screws 4 x Screws 38mm 46 x Cam Bolts 46 x Cam (H3) 12mm (H5) (H4) (H1) Nuts (H2) 16 x Screws 4 x Clothes Rail 2 x Wall Brackets 28 x Dome Screws 16 x Back Panel 16mm (H8) Brackets (H10)
  • Page 7 Step 1 You will need 10 x Cam Bolts 4 x Dowels (H1) (H3) Phillips Head Screwdriver (P2) (P2) Insert 4 x dowels (H3) into bottom panel (P2) as shown. Attach 10 x cam bolts (H1) to bottom panel (P2) as shown by tightening with the Phillips Head Screwdriver.
  • Page 8 Step 2 You will need 12 x Corner 10 x Dowels Brackets (H12) (H3) Phillips Head 12 x Dome Screws 12mm (H7) Screwdriver (P11) (P14) Insert 8 x dowels (H3) into kickboards (P11x2). Secure 8 x corner brackets (H12) with 8 x screws (H7) to kickboards (P11x2) as shown by tightening with the phillips head screwdriver.
  • Page 9 Step 3 (P14) (P11) (P2) (P11) (P2) (P11) (P11) (P14) Position kickboards (P11x2) and bottom rail (P14) onto bottom panel (P2) as shown. fantasticfurniture.com.au Page 9...
  • Page 10 Step 4 This is how a cam nut works..You will need The head of the cam bolt goes into the open mouth of the cam nut. You then turn the cam nut so it tightens over the bolt. 2 x Cam Nuts 12 x Dome Screws 12mm (H7) (H2)
  • Page 11 Step 5 You will need 4 x Cam Bolts 6 x Dowels (H1) (H3) Phillips Head Screwdriver (P5) (P5) Attach 2 x cam bolts (H1) to divider panel (P5) as shown by tightening with the phillips head screwdriver. Carefully turn the divider panel (P5) over and attach the remaining 2 x cam bolts (H1) by tightening with the phillips head screwdriver.
  • Page 12 Step 6 Two People You will need Required Phillips Head 4 x Screws Screwdriver 38mm (H4) (P5) (P9) Attach middle rail (P9) to divider panel (P5) with 4 x screws (H4) as shown by tightening the screws with the phillips head screwdriver. fantasticfurniture.com.au Page 12...
  • Page 13 Step 7 Two People You will need Required Phillips Head 4 x Cam Nuts Screwdriver (H2) (P2) (P9) (P5) Make sure cam bolts are in the right position Packaging materials Insert 4 x cam nuts (H2) into divider panel (P5) and middle rail (P9) as shown. Attach divider panel (P5) and middle rail (P9) to bottom panel (P2) as shown by tightening the cam nuts with the phillips head screwdriver.
  • Page 14 Step 8 You will need 8 x Dowels (H3) Insert 8 x dowels (H3) into left & right fixed shelves (P6&P7) as shown. Ensure the raw edges of the shelves Step 9 are facing up You will need 4 x Cam Nuts Phillips Head (H2) Screwdriver...
  • Page 15 Step 10 You will need 4 x Dowels (H3) Insert 4 x dowels (H3) into side rails (P8x2) as shown. Step 11 You will need Phillips Head 20 x Cam Screwdriver Bolts (H1) 4 x Dowels (H3) Insert 4 x dowels (H3) into left & right side panels (P3&P4) as shown. Attach 20 x cam bolts (H1) to left &...
  • Page 16 Step 12 You will need (P8) 4 x Cam Phillips Head Nuts (H2) Screwdriver (P8) Insert 4 x cam nuts (H2) into side rails (P8x2) as shown. Rotate the cam nuts so the arrows point (P2) towards the incoming cam bolts. Attach side rails (P8x2) to bottom panel (P2) by tightening the cam nuts with the Phillips Head Screwdriver.
  • Page 17 Step 14 (P8) You will need (P3) (P6) 10 x Cam Phillips Head Nuts (H2) Screwdriver Two People Required (P2) (P11) Insert 10 x cam nuts (H2) into kickboards (P11x2), bottom panel (P2), left fixed shelf (P6) & side rail (P8) as shown. Rotate the cam nuts so the arrows point towards the incoming cam bolts.
  • Page 18 Step 16 You will need 12 x Cam 2 x Wall Bolts (H1) Brackets (H6) Phillips Head 4 x Dome Screws 12mm (H7) Screwdriver (P1) (P1) Attach 12 x cam bolts (H1) to top panel (P1) as shown by tightening with the Phillips Head Screwdriver. Carefully turn the top panel (P1) over and attach 2 x wall brackets (H6) to top panel with 4 x dome screws (H7) by tightening with the phillips head screwdriver.
  • Page 19 Step 17 Two People (P8) (P3) (P1) Required (P9) (P8) (P4) Attach top panel (P1) to side rails (P8x2), middle rail (P9), left & right side panels (P3&P4) as shown. With assistance, carefully stand the unit upright. (P1) (P10) (P10) (P2) If required, you my need to slightly push 2 x back panels (P10) to ensure the end of the back panels are located in the grooves of top panel (P1) and bottom panel (P2).
  • Page 20 Step 18 You will need 12 x Cam Phillips Head Nuts (H2) Screwdriver (P9) (P8) (P8) (P5) (P4) (P3) Insert 6 x cam nuts (H2) into side rails (P8x2) & middle rail (P9), tightening with the phillips head screwdriver. Insert 6 x cam nuts (H2) into left &...
  • Page 21 Step 19 Two People You will need 16 x Screws 16 x Back Panel 16mm (H8) Connectors (H9) Required Phillips Head Screwdriver XX=YY If required, you may need to push the side panel a little to ensure the unit is square. Insert 16 x back panel connectors into place as shown and secure with 16 x screws (H8), tightening with the phillips head screwdriver.
  • Page 22 Step 20 Separate the 4 x clothes rail brackets (H10-1) and clothes rail bracket rings (H10-2) You will need from clothes rail brackets (H10). H10-2 H10-1 8 x Screws 4 x Clothes Rail 12mm (H5) Brackets (H10) Phillips Head Screwdriver H10-1 H10-1 H10-1...
  • Page 23 Step 21 (P15) (P15) You will need H10-2 H10-2 4 x Clothes rail Bracket rings (H10-2) H10-2 H10-2 H10-1 H10-1 (P15) (P15) Put 4 x clothes rail bracket rings (H10-2) onto clothes rails (P15x2) as shown. Position clothes rails (P15x2) into 4 x clothes rail brackets (P10-1) as shown. Push 4 x clothes rail rings (H10-2) to cover 4 x clothes rail brackets (P10-1) as shown.
  • Page 24 Step 22 Two People You will need 4 x Wedges Required (H11) With assistance, move the wardrobe to its final position. If needed, level out the wardrobe using 4 x wedges (H11) as shown. fantasticfurniture.com.au Page 24...
  • Page 25 Step 23 Two People Seek advice from a qualified trades person on how to attach this wall bracket to your specific wall. Required Screw and wall plug are not included. Please use appropriate fixtures for your wall. Attach the wall bracket to the wall with the appropriate fixtures. Make sure they are firmly attached and secure.
  • Page 26 Step 24 You will need (P1) 12 x Screws Phillips Head 12mm (H5) Screwdriver (P12) (P1) (P12) (P12) (P2) (P13) (P13) Attach top track (P12) to top panel (P1) with 8 x screws (H5) as shown by tightening with the phillips head screwdriver. Attach bottom track (P13) to bottom panel (P2) with 4 x screws (H5) as shown by tightening with the phillips head screwdriver.

  • Page 27: Door Assembly

    What you need Door Assembly to assemble the product Parts list 2 x Sliding Doors (P16) Page 27 fantasticfurniture.com.au...
  • Page 28 Step 25 Two People Required Top Track Front Push The wheels on the bottom of the door must go into this slot. Front Bottom Track Bottom Track Front Bottom panel To lift the first door into the unit, hold the assembled door by the sides, line it up and put it into the back groove of the top track, then insert the door into the bottom track.
  • Page 29 Step 26 Two People Required Top Track Front Push The wheels on the bottom of the door must go into this slot. Bottom Track Front Bottom panel Front Bottom Track To lift the second door into the unit, hold the assembled door by the sides, line it up and put it into the front groove of the top track, then insert the door into the bottom track.
  • Page 30 Step 27 Doors adjustment: You will need Bu er band Push Adjustable 1 x Allen Key (H13) screw Push If the gap too big at top between the door and side panel, adjust it as per below to minimize the gap. clockwise anti-clockwise If the gap too big at bottom...

  • Page 31: Job Complete

    Step 28 Job complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 31...
