please contact Atlantic Furniture at customerservice@atlanticfurniture.com or 1-800-955-3726
Phillips screwdriver
Customer supplied
HARDWARE
Wood dowel - 8 pcs
A
Spare - 1 pc
D
Wood screw 1" - 24 pcs
Spare - 2 pcs
G
Metal pull screw 40mm - 4 pcs
Spare - 1 pc

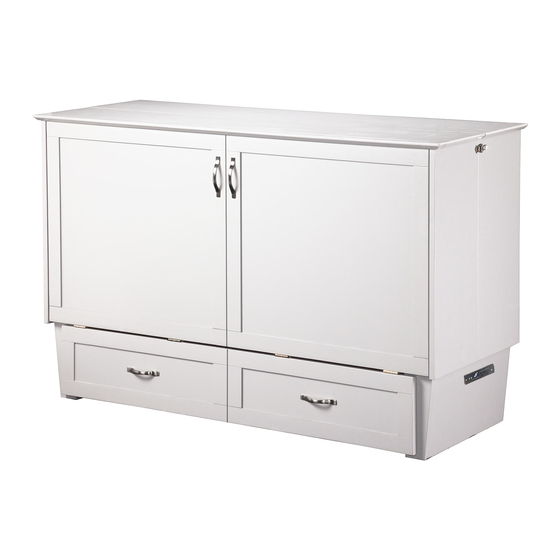

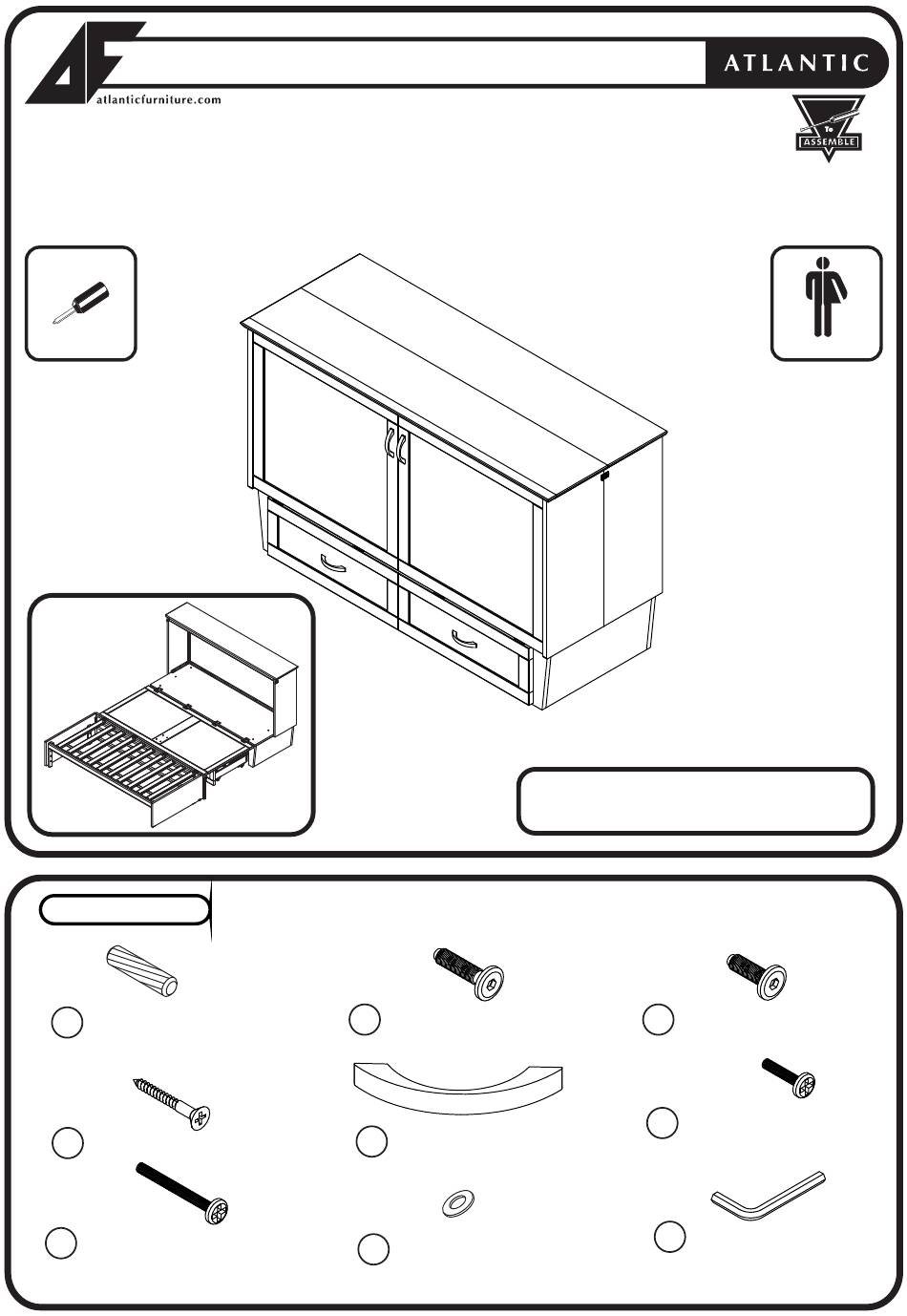

MADISON MURPHY BED
ASSEMBLY INSTRUCTIONS
Before assembling your Murphy bed, please read through these
instructions carefully and familiarize yourself with the different parts.
ATTENTION! If you receive a damaged or defective item,
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
B
E
H
Adjust quantity as needed.
QUEEN
PO :
JCB M6 X 25mm - 8 pcs
Spare - 1 pc
Metal pull - 4 pcs
Washer - 16 pcs
Spare - 1 pc
READY
Adult assembly
C
JCB M6 X 15mm - 8 pcs
Spare - 1 pc
F
Metal pull screw 25mm - 4 pcs
Spare - 1 pc
I
Allen wrench - 1 pc
Spare - 1 pc
