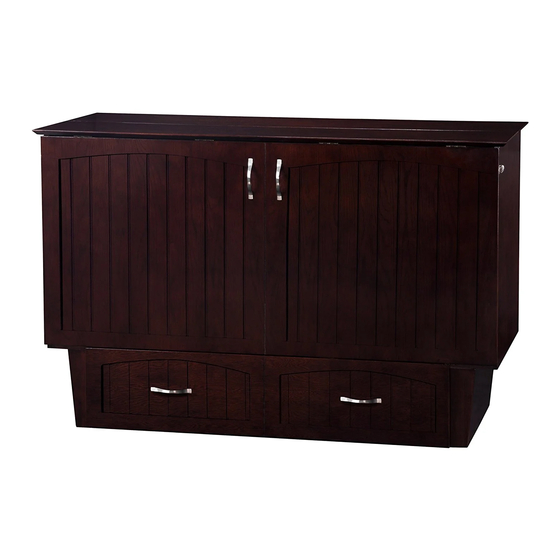

Atlantic Furniture NANTUCKET MURPHY BED Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Atlantic Furniture Manuals
  4. Indoor Furnishing
  5. NANTUCKET MURPHY BED
  6. Assembly instructions manual

Atlantic Furniture NANTUCKET MURPHY BED Assembly Instructions Manual

With charging station
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual
please contact Atlantic Furniture at customerservice@atlanticfurniture.com or 1-800-955-3726
Phillips screwdriver
Customer supplied
HARDWARE
Wooden dowel - 10 pcs
A
Spare - 1 pc
D
Wood screw 1" - 14 pcs
Spare - 1 pc
G
Metal pull screw 40mm - 4 pcs
NANTUCKET MURPHY BED
WITH CHARGING STATION

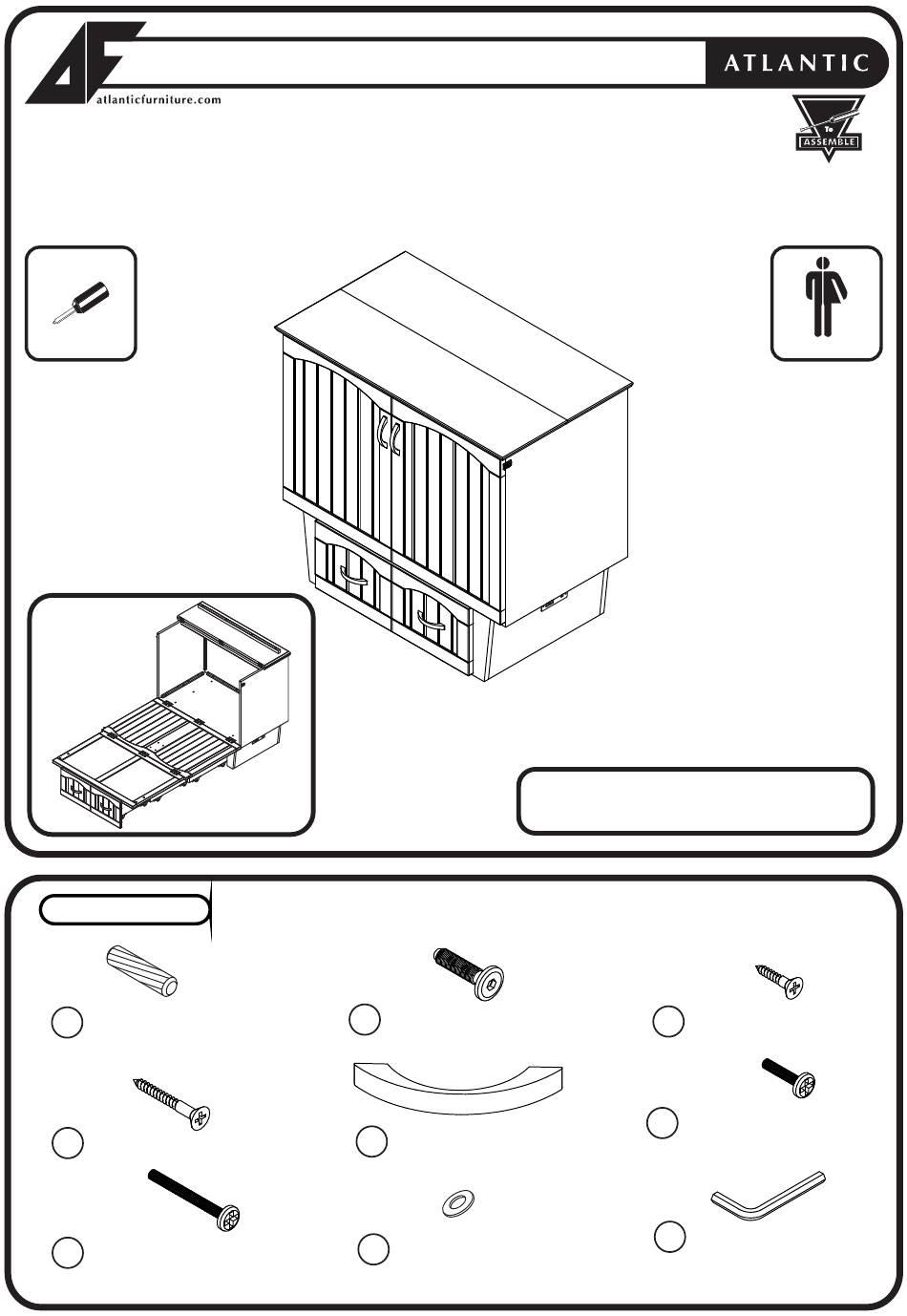

ASSEMBLY INSTRUCTIONS
Before assembling your Murphy bed, please read through these
instructions carefully and familiarize yourself with the different parts.
ATTENTION! If you receive a damaged or defective item,
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
B
E
H
Spare - 1 pc
TWIN
PO :
JCB M6 X 25mm - 10 pcs
Spare - 1 pc
Metal pull - 6 pcs
Washer - 24pcs
Spare - 1 pc
Adjust quantity as needed.
READY
Adult assembly
C
Wood screw 5/8" - 9 pcs
Spare - 1 pc
F
Metal pull screw 25mm - 8 pcs
Spare - 1 pc
I
Allen wrench - 1 pc
Spare - 1 pc
Page 1 of 7
