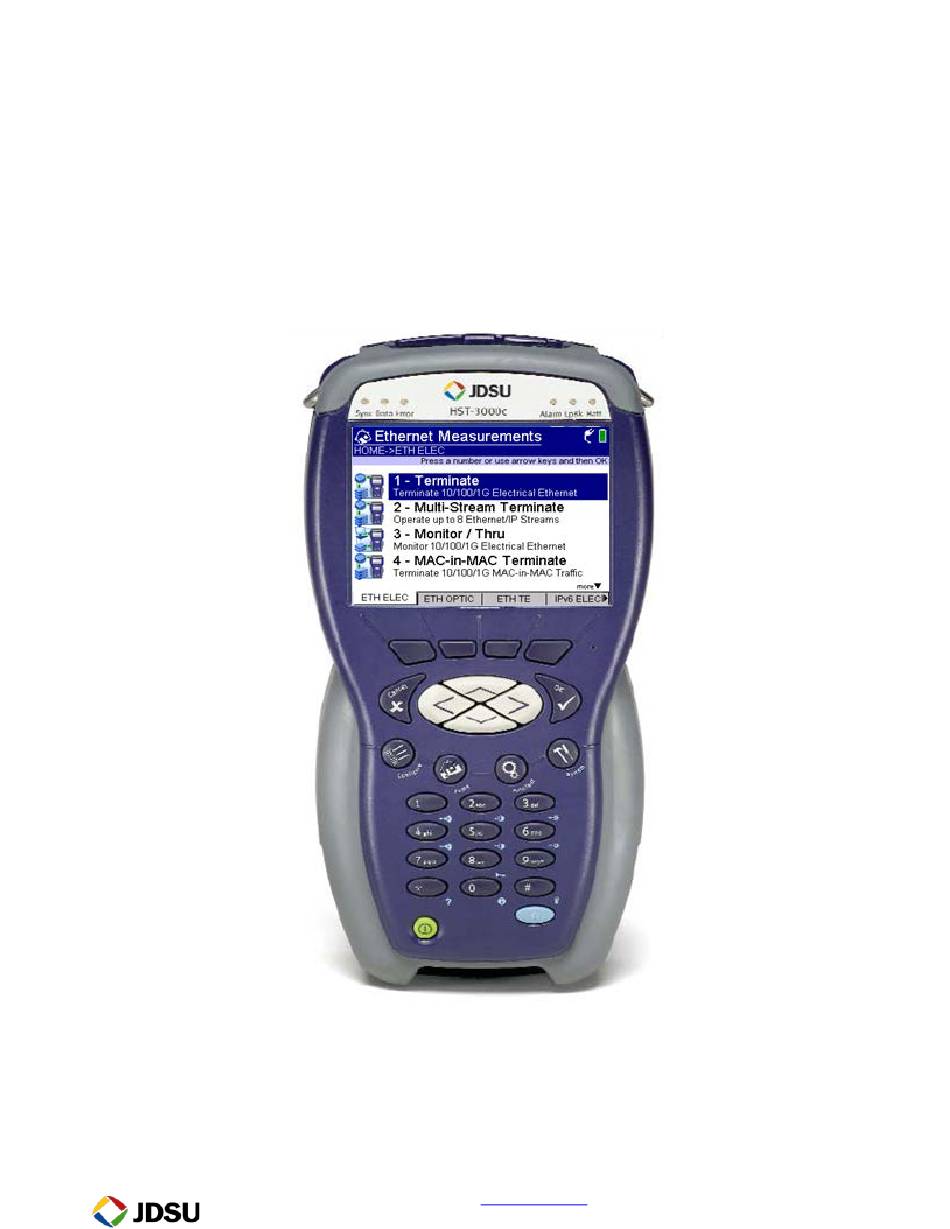

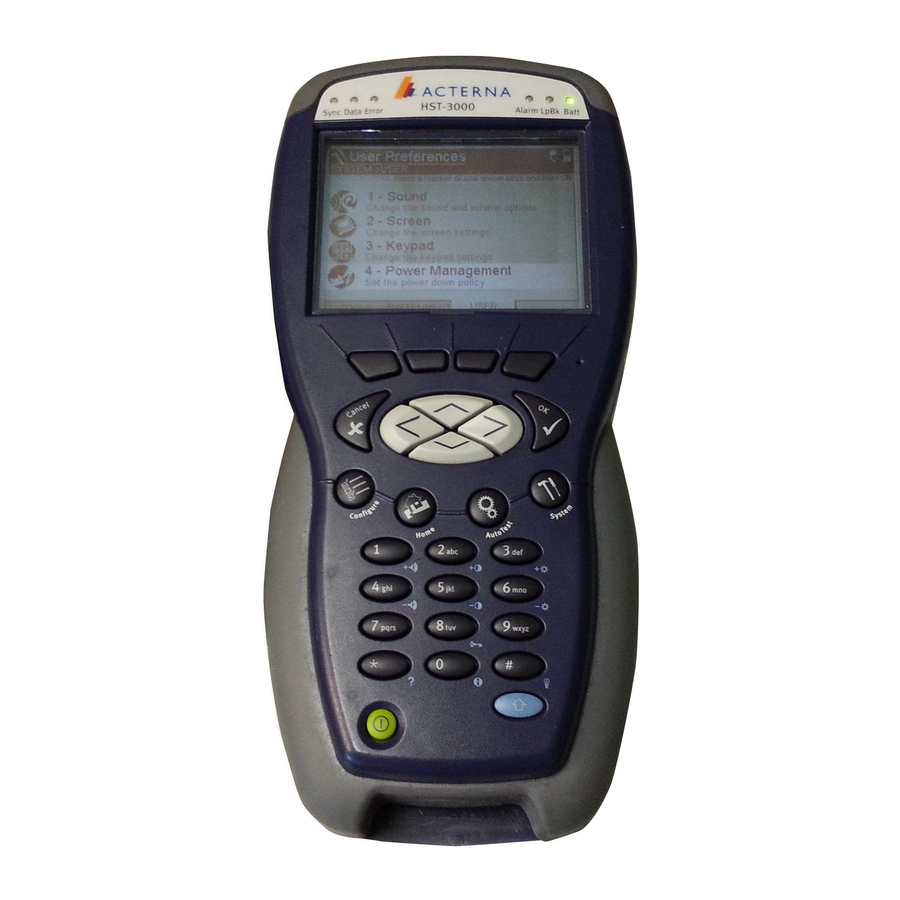

JDSU HST-3000
RFC-2544 Ethernet
Testing Guide
Version 1.2
May 15, 2013
Technical Support
tac@jdsu.com
855-275-5378

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HST-3000 and is the answer not in the manual?

Questions and answers

Related Manuals for JDS Uniphase HST-3000

Summary of Contents for JDS Uniphase HST-3000

  • Page 1 Page 1 of 24 JDSU HST-3000 RFC-2544 Ethernet Testing Guide Version 1.2 May 15, 2013 Technical Support tac@jdsu.com 855-275-5378...

  • Page 2: Table Of Contents

    • Layer 2 and Layer 3 IPv4 RFC-2544 tests between two HST-3000s • Layer 2 and Layer 3 IPv4 RFC-2544 tests between the HST-3000 and T-BERD 5800 • Layer 2 and Layer 3 IPv4 RFC-2544 tests between the HST-3000 and T-BERD 6000A •...

  • Page 3: Overview

    Ethernet links. Menu selections are made from the HST-3000 front panel by using the keypad to select the option number or by using the arrow keys to scroll to the desired selection and pressing the OK key.

  • Page 4: Rfc-2544 Test Procedures

    SLA metrics. Technicians should follow procedure in one of the following sections, depending on his location (A-side or Z-side) and whether he is using a T-BERD 5800, T-BERD 6000A, SmartClass Ethernet, or HST-3000 test equipment. The RFC-2544 test is run from the A-Side. The Z-side is placed in loopback.

  • Page 5: Hst-3000 Rfc-2544 Test

    Page 5 of 24 HST-3000 RFC-2544 Test Use this procedure to set up an HST-3000 to test a 10Mbps, 100Mbps, or 1000Mbps link. Step Action Details Install SIM Install Ethernet Module on the HST-3000. Power On Press the green Power Key to turn on the HST-3000. Wait approximately 1 minute for the Base Unit software to load.
  • Page 6 Page 6 of 24 Launch Test App Launch test application as follows: • For Layer 2 Electrical (Copper/RJ-45) Testing, press the ETH ELEC Soft key, select Terminate, and press the OK key. Select Layer 2 Traffic at the Test prompt •...
  • Page 7 Page 7 of 24 Configure Test Press the Configure Navigation key to configure test setting. If you have previously saved configuration files, press the Save soft key, then Load Config and Load RFC 2544 Config. Follow prompts to load desired files. Using the Right Arrow key or Settings soft key, scroll through Settings menus and configure/update your test as follows.
  • Page 8 Page 8 of 24 Comment Menu Option Value 64 if no VLAN; Frame 1 68 if VLAN Frame 2 Disable Frame 3 Disable Frame 4 Disable Frame 5 Disable Frame Frame 6 Disable Length 1518 if no VLAN; Frame 7 1522 if VLAN If the Maximum Transmission Unit (MTU)
  • Page 9 If you are running a Layer 3 IPv4 Test, verify that the final message in the Message bar is “ARP Done” If “ARP Done” is not displayed, verify that the HST-3000’s IP menu is configured correctly, as outlined above. Run Test Press the Action soft key and select Start RFC 2544.
  • Page 10 Page 10 of 24 The filename, including a time and date stamp, will be displayed in the RFC 2544 log. The report is saved to the /results/rfc2544 folder. It can be viewed or copied to USB from the File Manager in the System menu. View Summary Press the Right Arrow key and Next Frame soft key view status of all tests.

  • Page 11: Hst-3000 Loopback

    Page 11 of 24 HST-3000 Loopback Use this procedure to set up an HST-3000 as a far-end Z-side loopback device. Step Action Details Install SIM Install Ethernet Module on the HST-3000. Power On Press the green Power Key to turn on the HST-3000. Wait approximately 1 minute for the Base Unit software to load.
  • Page 12 Page 12 of 24 Launch Test App Launch test application as follows: • For Layer 2 Electrical (Copper/RJ-45) Testing, press the ETH ELEC Soft key, select Terminate, and press the OK key. Select Layer 2 Traffic at the Test prompt •...
  • Page 13 Page 13 of 24 Configure Test Press the Configure Navigation key to configure test setting. Using the Right Arrow key or Settings soft key, scroll through Settings menus and configure your test as follows. Leave all other values at default, unless specified in the Work Order.
  • Page 14 Page 14 of 24 Check LED Results Press the Right Arrow key until LED Results are displayed. A Green Signal Present LED indicates that the HST-3000 is receiving an optical signal from the near end Ethernet Switch. Green Sync Acquired and Link Active LEDs indicate that the HST-3000 has successfully connected to the near end Ethernet switch and the Ethernet link is active.

  • Page 15: T-Berd 5800 Loopback

    Page 15 of 24 T-BERD 5800 Loopback Use this procedure to set up a T-BERD 5800 as a far-end (Z-side) loopback device. Step Action Details Power On Press the ON/OFF button to turn on the T-BERD 5800. Wait approximately 2 minutes for the Base Unit software to load. Insert SFP For optical testing, insert desired SFP (1000BASE-SX, 1000BASE-LX, or 1000BASE-ZX) in the desired T-BERD 5800’s SFP port.
  • Page 16 Page 16 of 24 Select Test In the Test menu, select one of the following: • For Layer 2 Electrical (Copper/RF-45) Testing: Ethernet>10/100/1000>Layer 2 Traffic> Terminate. • For Layer 2 Optical Testing: Ethernet>1GigE Optical>Layer 2 Traffic> Terminate. • For Layer 3 IPv4 Electrical Testing: Ethernet>10/100/1000>Layer 3 Traffic>...
  • Page 17 Page 17 of 24 Check LEDs Press the Restart soft key on the Right side of the display to reset test results. A Green Signal Present LED indicates that the T-BERD is receiving an optical signal from the near end Ethernet Switch. Green Sync Acquired and Link Active LEDs indicate that the T-BERD has successfully connected to the near end Ethernet switch and the Ethernet...
  • Page 18 Page 18 of 24 Technical Support tac@jdsu.com 855-275-5378...

  • Page 19: T-Berd 6000A Loopback

    Page 19 of 24 T-BERD 6000A Loopback Use this procedure to set up a T-BERD 6000A as a far-end (Z-side) loopback device. Step Action Details Install PIM Install the SFP or SFP+ Physical Interface Module (PIM) in the T-BERD 6000A. Insert SFP Insert desired SFP (1000BASE-T, 1000BASE-SX, 1000BASE-LX, or 1000BASE-ZX) in PIM.
  • Page 20 Page 20 of 24 Connect Connect the SFP on the T-BERD 6000A to the Ethernet switch port. • Use Orange Multimode jumper cables for 850 nm 1000BASE-SX. • Use Yellow Single Mode Fiber jumper cables for 1310 nm 1000BASE-LX and 1550 nm1000BASE-ZX. •...
  • Page 21 Page 21 of 24 10. Setup Press the SETUP soft key on the top right side of screen. Select the indicated folders and configure your test as follows. Leave all other values at default, unless specified in the Work Order. Folder Option Value(s)
  • Page 22 Page 22 of 24 Check ARP Status If you are running a Layer 3 IPv4 Test, verify that the final message in the Message bar is “ARP Successful. Destination MAC obtained.” If the message bar displays: “Messages logged,” tap the down arrow next to “Messages logged”...

  • Page 23: Smartclass Ethernet

    Page 23 of 24 SmartClass Ethernet Use this procedure to set up a SmartClass Ethernet as a far-end Z-side loopback device. Step Action Details Power On Press the green Power Key to turn on the SmartClass Ethernet. Wait approximately 25 seconds for the Base Unit software to load. Clean &...
  • Page 24 Auto Sensing Electrical option Laser Enable Optical option ARP Mode Disable IP Address of A side Dest Adress See Work Order HST-3000 Source Type Static IP Settings Source Addr See Work Order Subnet Mask See Work Order Default Gateway See Work Order View Results Press the Cancel Key twice, then select Results.
