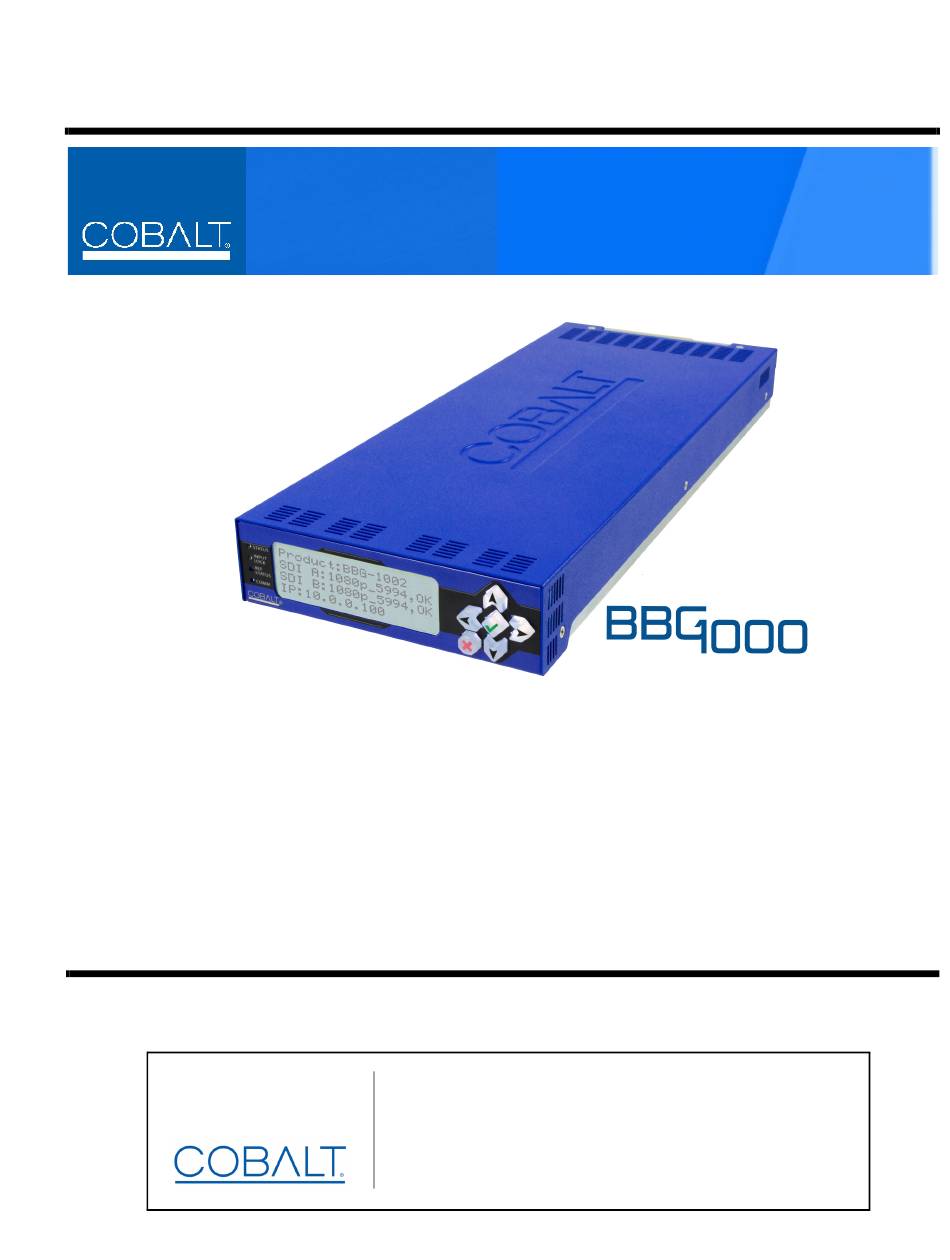

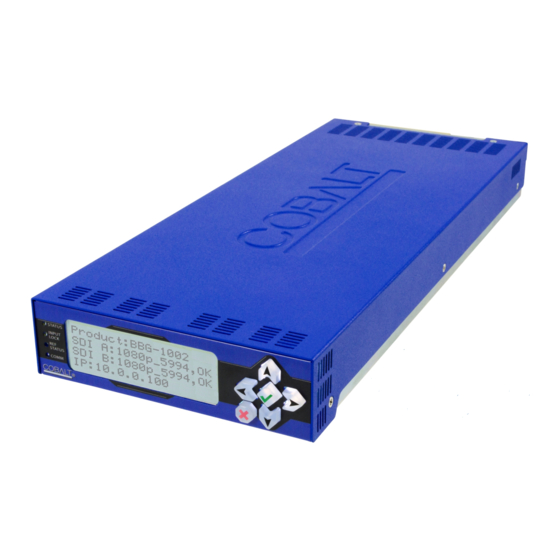

BBG-1002-2UDX-DI
BBG-1002-2UDX-DI
3G/HD/SD-SDI Standalone Dual-Channel De-interlacing
Up-Down-Cross Converter / Frame Sync
Product Manual
Cobalt Digital Inc.
2506 Galen Drive
Champaign, IL 61821
Voice 217.344.1243 • Fax 217.344.1245
www.cobaltdigital.com
BBG-1002-2UDXDI-OM (V1.0)
