Cobalt Digital Inc.
BBG-1090-TRX-MPEG
Multi-Standard Modular Broadcast Transcoder
Product Manual
Version 1.1
BBG-1090-TRX-MPEG-OM
Version: 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BBG-1090-TRX-MPEG and is the answer not in the manual?

Questions and answers

Related Manuals for Cobalt Digital Inc BBG-1090-TRX-MPEG

Summary of Contents for Cobalt Digital Inc BBG-1090-TRX-MPEG

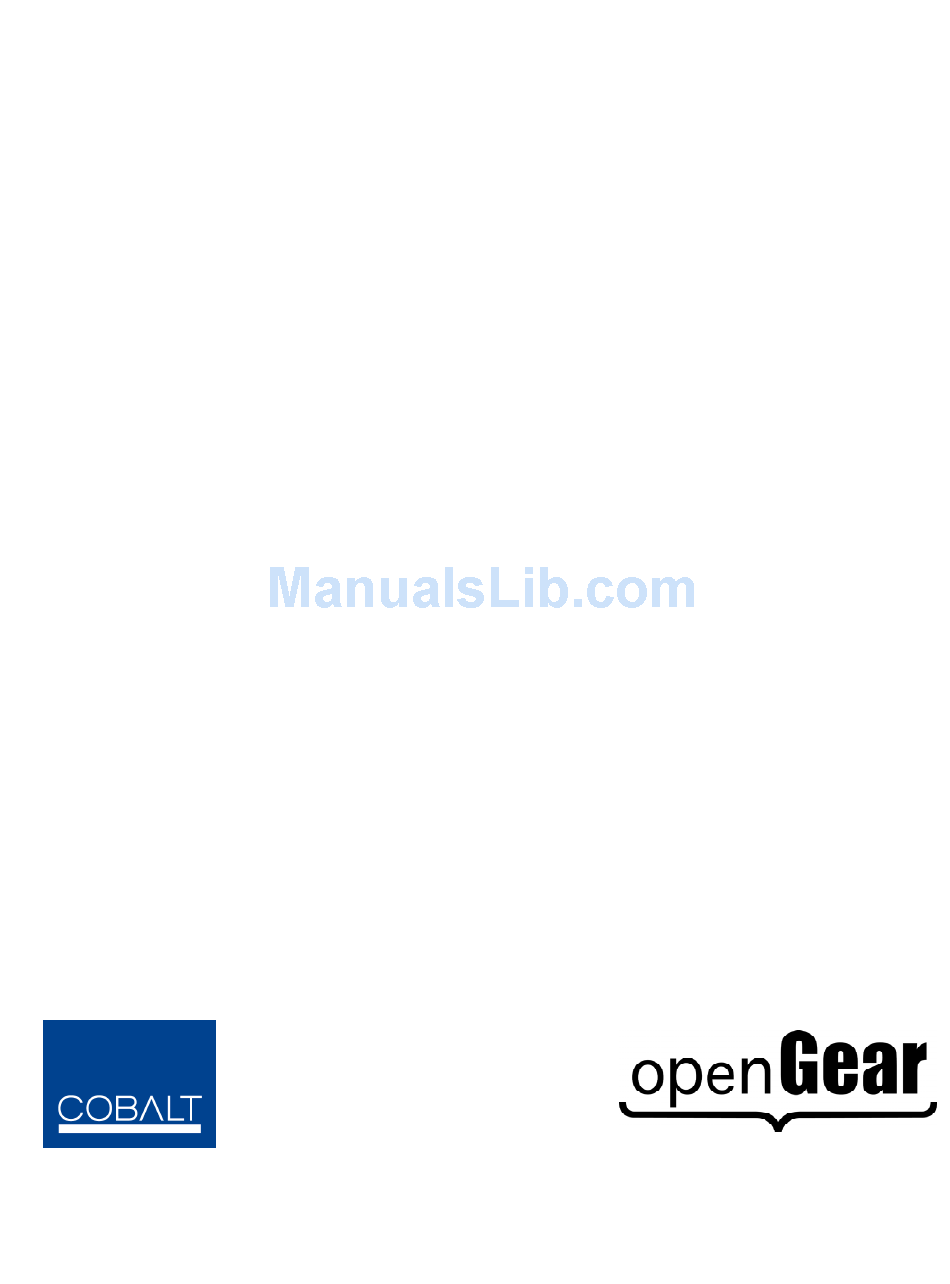

  • Page 1 Cobalt Digital Inc. BBG-1090-TRX-MPEG Multi-Standard Modular Broadcast Transcoder Product Manual Version 1.1 BBG-1090-TRX-MPEG-OM Version: 1.1...
  • Page 2 The material in this manual is furnished for informational use only. It is subject to change without notice and should not be construed as commitment by Cobalt Digital Inc. Cobalt Digital Inc. assumes no responsibility or liability for errors or inaccuracies that may appear in this manual.

  • Page 3: Important Safety Instructions

    Important Regulatory and Safety Notices Before using this product and any associated equipment, refer to the “Important Safety Instructions” listed below to avoid personnel injury and to prevent product damage. Products may require specific equipment, and/or installation procedures to be carried out to satisfy certain regulatory compliance requirements.
  • Page 4 Technical Support using the numbers listed under the “Contact Us” section on the last page of this manual. All Cobalt Digital Inc. products are covered by a generous 5-year warranty and will be repaired without charge for materials or labor within this period. See the “Warranty and Repair Policy”...

  • Page 5: Table Of Contents

    CE Mark Warning........................7 Installation Safety Notes ......................7 Introduction............................. 9 Product Overview ........................9 Redundancy Options......................... 11 BBG-1090-TRX-MPEG Indicators and Switches ................ 13 Back Panel ..........................13 Front Panel Indicators ....................... 14 Front Panel Default Switch....................... 15 BBG-1090-TRX-MPEG Operation and Management..............17 Product Tab...........................
  • Page 6 Playing Video on a Web Page ...................... 81 Web Pages Served by the BBG-1090-TRX-MPEG ..............82 Web Browser Support......................83 Warranty and Repair Policy...................... 84 Contact Cobalt Digital Inc......................85 Visit us at the Cobalt Digital Inc. website................85...

  • Page 7: Electrostatic Discharge (Esd) And Esd Protection

    This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. Installation Safety Notes • Do not place the BBG-1090-TRX-MPEG unit underneath heavy loads or in an unstable position.
  • Page 8 • Do not expose the BBG-1090-TRX-MPEG unit under direct sunlight, high humidity or wet conditions. • Do not use or expose the BBG-1090-TRX-MPEG unit around magnetic fields as magnetic interference may affect the performance of the device. • Do not block the air vents to this device or impede the airflow in any way.

  • Page 9: Introduction

    Introduction The BBG-1090-TRX-MPEG has the following features: • Multi-Standard transcoder (MPEG-2 and H.264), with support for both SD (Standard Definition) and HD (High Definition) content. Up to 4 simultaneous transcoding instances are supported per board. • Resolution resizing support. • Audio pass-through support.
  • Page 10 • 2 fixed-function ASI inputs • Up to 8 IP inputs per Ethernet port (for a maximum of 16 IP inputs) • 2 internal test packet generators (which can be used to generate ASI or IP test streams) The following outputs are available: •...

  • Page 11: Redundancy Options

    Outputs Inputs ETH1 ETH1 Up to 8 Up to 8 Program Router ETH2 ETH2 Up to 8 Up to 8 Test Generators 4 x Audio/Video Transcoders For the remainder of this manual, we will use the term port for a physical input/output port (such as ASI or Ethernet), and stream for a transport stream present in the port.
  • Page 12 • Regardless of the Automatic/Manual mode, the operator always has the ability to instruct the unit to switch to the other transport stream. An IP Input receives a transport stream over UDP/IP or RTP/UDP/IP, on a given IP Address/UDP Port combination, with an optional Source IP address specification. For each IP Input, the unit allows an optional backup IP Address/UDP Port/Optional Source IP Address combination to be specified.

  • Page 13: Bbg-1090-Trx-Mpeg Indicators And Switches

    BBG-1090-TRX-MPEG Indicators and Switches The BBG-1090-TRX-MPEG can be used as a desktop gateway, or in a 19” rack-mount tray that holds up to three units: Back Panel The rear I/O panel is depicted below. It includes 2 ASI inputs and 2 ASI outputs on standard BNC connectors, two streaming 100/1000 Mb/s Ethernet ports on standard RJ-45 connectors, and two control 10/100/1000 Mb/s Ethernet ports on standard RJ-45 connectors.

  • Page 14: Front Panel Indicators

    ASI5 ASI3 ASI1 CTRL1 ETH1 ASI6 ASI4 ASI2 CTRL2 ETH2 Control Streaming Unused Ethernets Ethernets Outputs Inputs Each of the ASI input ports has a green indicator LED, with the following states: • LED off: ASI port is disabled. • LED flashing once every 3 seconds: ASI port is not locked to a signal (i.e., there is no input signal).

  • Page 15: Front Panel Default Switch

    The front panel LED indicators are as follows: • STAT: indicates the overall status of the unit. o Green: no active alarm o Red: at least one critical alarm present When powering up the unit, this LED will be red until the board starts operation. At that point, it will turn green if there is no active alarm or stay red if there is at least one alarm.
  • Page 16 • Subnet Mask: 255.255.255.0 • Gateway: 192.168.1.1 The STAT front panel indicator will change colors for about 3 seconds to acknowledge the change. Note that this operation does not disturb the encoding function or the streaming Ethernet ports (i.e., it is not service-affecting). If you press and hold this switch when the unit is powered off, and then power up the unit while holding the switch, the following actions will be performed: •...

  • Page 17: Bbg-1090-Trx-Mpeg Operation And Management

    BBG-1090-TRX-MPEG Operation and Management The unit is configured using the free Dashboard™ application, which is available for Windows, Apple OS X, and Linux. Dashboard can be downloaded from this link: http://www.opengear.tv/?p=94 The unit user interface is depicted below. As with any openGear™ card, it is divided into a statistics panel on the left, and a configuration panel on the right.

  • Page 19: Product Tab

    Product Tab The Product Tab contains basic information about the unit. The following information is available: • Build Date: Date the firmware image was built. • Supplier: Cobalt Digital Incorporated. • Product: BBG-1090-TRX-MPEG.
  • Page 20 • Software revision: This indicates the firmware revision currently running. The format is Major Version • Minor Version • Build Number. • Serial Number: This is the serial number of this particular card used in the unit. • Hardware Version: This indicates the board version number. All board versions are functionally equivalent.

  • Page 21: Network Tab

    Network Tab The Network Tab allows for configuration/monitoring of the two Ethernet ports. Network Configuration Tab The Network Configuration Tab is used to set the individual parameters for each of the Ethernet ports. The following parameters can be configured: • Alarm on Link Loss: If set to Yes, the card will raise an alarm if this Ethernet interface loses link.
  • Page 22 fields back to their original values. Note that the unit will check the consistency of the data entered and will reject invalid combinations. Once the Apply button is pressed, a status message appears just below the Cancel button, as follows: •...

  • Page 23: Network Statistics Tab

    Network Statistics Tab The Network Statistics Tab reports the current IP configuration of each Ethernet port, as well as their link state and running status. The following parameters are reported in the Network Statistics tab: • Alarm on Link Loss: Reports the current setting of this parameter. •...

  • Page 24: Asi Input Ports

    ASI Input Ports The unit card has 2 fixed-function ASI Input Ports. This tab is used to configure and manage these ports. ASI Inputs: Configuration Tab The Configuration Tab for the ASI inputs is shown below: As indicated in the picture, two bottom tabs are available: •...
  • Page 25 o Port Name: All ports can be assigned a user-defined name, which is displayed here. The default name is ASI Input 1 or ASI Input 2. o Edit: This button, when clicked, brings up the configuration area of the port. •...

  • Page 26: Asi Inputs: Program Info Tab

    • The Add Connection area. This allows for a new connection to be added to this port. This control is available for all ports, and is described in detail in the Connections section. Once the desired configuration is entered, click on the Apply button to have them take effect. This will cause the changes made in the Configuration Parameters to be implemented, any connections marked for deletion to be removed, and any new connection entered in the Add Connection area to be established.

  • Page 27: Asi Inputs: Statistics Tab

    ASI Inputs: Statistics Tab The Statistics Tab for the ASI Ports provides a quick visual summary status for the ports. A sample is depicted below: Each of the ASI Input Port indicators can have the following values: • RX Locked: The port is locked to an input signal. •...

  • Page 28: Asi Output Ports

    ASI Output Ports The BBG-1090-TRX-MPEG card has 2 fixed-function ASI Output Ports. This tab is used to configure and manage these ports. ASI Output Ports: Configuration Tab The ASI Output Configuration Tab is show below: The ASI Outputs table is always displayed, and its columns are: •...
  • Page 29 Automatic: In this mode, the ASI output bit rate is automatically set by the BBG-1090-TRX-MPEG to match the programs routed to the port. o Bit Rate: This field is only shown if the ASI Rate control is set to Manual.

  • Page 30: Asi Ports: Statistics Tab

    Configuration Parameters Established connections Add Connection controls Once the desired configuration is entered, click on the Apply button to have them take effect. This will cause the changes made in the Configuration Parameters to be implemented, any connections marked for deletion to be removed, and any new connection entered in the Add Connection area to be established.
  • Page 31 Each of the ASI Port indicators can have the following values: • TX OK: The port is operating normally in transmit mode (ASI Output). • TX Overflow: The port is in transmit mode, manual bit rate setting, and the connected bit rate is excessive.

  • Page 32: Ip Inputs

    IP Inputs IP Inputs receive transport streams over UDP/IP from the Ethernet ports and make them available for connections to outputs. The BBG-1090-TRX-MPEG card supports up to 8 transport stream inputs per Ethernet port. IP Inputs have the following specifications: •...
  • Page 33 To create an IP Input stream, first select the desired Ethernet port in the Add Stream drop-down box. Once that selection is made, the IP Input Stream Configuration is displayed, as depicted below. The configuration screen has three areas: • Common Parameters: apply to the stream input as a whole, regardless of the redundancy options.

  • Page 34: Common Parameters

    This feature is provided for testing purposes (i.e., temporarily disable an input for fault-finding). Most users will leave the stream enabled. • Stream Name: All BBG-1090-TRX-MPEG inputs and outputs can be assigned a user- defined name. This name is used to identify the port later when making connections.

  • Page 35: Addressing Parameters

    • Disabled: no redundancy. • Automatic: a redundant address/port can be defined, and the input will automatically switch between primary and backup if the stream disappears. If this option is selected, a new field is displayed, where the Switch Time can be configured; valid values are between 2 and 45 seconds: •...
  • Page 36 224.0.0.0 and 239.255.255.255). If this option is selected, a new field is displayed to accept the multicast address: The BBG-1090-TRX-MPEG will warn the user if the address entered in this field is not a multicast address. The device includes a full implementation of IGMP V1/V2/V3 to convey group membership information to upstream routers;...

  • Page 37: Established Connections

    • No header extensions (X=0) • No CSRC list (CC=0) • Payload type set to MPEG-2 Transport Streams (PT=33) For more details, please consult RFC 1889, section 5.1. The BBG-1090-TRX-MPEG does not receive, require, or process RTCP packets. Established Connections This section lists output connections currently established to the selected IP input.

  • Page 38: Active Ip Inputs Table

    Ethernet port. The BBG-1090-TRX-MPEG is capable of internally replicating transport streams; just use the other port again in the connection. There is,...
  • Page 39 IP Packet Rate, but a zero TS Bit Rate, this indicates that the packets being received by the BBG-1090-TRX-MPEG do not contain a valid transport stream. This allows differentiation between a transport network problem (no packets being received) and a data format problem (packets contain invalid data).

  • Page 40: Ip Inputs: Program Info Tab

    IP Inputs: Program Info Tab For IP Inputs with a valid transport stream containing at least one program, the Program Info tab shows the contents of the transport stream, as illustrated below: PMT PID ASI Input Selection Transport Stream ID Element PIDs The following elements are present: •...
  • Page 41 Ethernet Port 1 Ethernet Port 1 Ethernet Port 2 Ethernet Port 2 The indicators can have the following values: • OK: The IP Input is receiving a valid transport stream. • No Lock: The IP Input is not receiving a valid transport stream. If there is a connection to this input, Dashboard Card State and the Status LED will be red.

  • Page 42: Ip Outputs

    IP Outputs receive data from connected inputs, format this data for transmission over UDP/IP, and send it with over the Ethernet ports. The BBG-1090-TRX-MPEG card supports up to 8 transport stream outputs per Ethernet port. IP Outputs have the following specifications: •...
  • Page 43 The Connection Parameters are common to all output ports, and will be described in the Connections section, later in this document. IP Output Parameters Established Connections Add Connection Controls The Basic View configuration parameters are as follows: • Enabled: This allows the output stream to be enabled or disabled. If it is disabled, no packet transmission takes place.
  • Page 44 255.255.255.255, and will transmit the packets as Ethernet broadcasts. Use of broadcasts, however, is strongly discouraged. • Stream Name: All BBG-1090-TRX-MPEG input and output ports can be assigned a user-defined name. This name is used to identify the port later when making connections.
  • Page 45 128. This field controls how many hops the packet can traverse before it is dropped by a router. The default value of 128 is suitable for virtually all applications. • DF Bit: This parameter allows the configuration of the Do-not-Fragment (DF) bit in the IP header. The BBG-1090-TRX-MPEG will never produce fragmented packets, and with...
  • Page 46 Some legacy equipment may exhibit performance problems if this bit is not set. This is not an issue with current network equipment. • RTP: If this box is checked, the BBG-1090-TRX-MPEG will include RTP (Real Time Protocol) headers in the output flow. If it is not checked, the transport stream will be sent over UDP/IP without any additional headers.

  • Page 47: Active Ip Outputs Table

    If the configuration is successful, the output stream will be added to the Active IP Outputs table. If the Cancel button is clicked, no changes are made. Active IP Outputs Table Once the output is created, it is added to the Active IP Outputs table, which has Basic and Advanced views.

  • Page 48: Managing Unicast Mac Addresses

    Once a MAC address is obtained, the BBG-1090-TRX-MPEG will cache it for about 5 minutes, as it is usual for IP devices. Unlike other IP devices, the BBG-1090-TRX-MPEG will keep on using the MAC address until a response is received, to avoid stream interruptions. If no response is received at that time, the BBG-1090-TRX-MPEG will raise a yellow alarm.

  • Page 49: Ip Outputs: Statistics Tab

    IP Outputs: Statistics Tab The Statistics tab for the IP output ports contains a summary of each port status. There are two sub-tabs: one for Ethernet 1, and another for Ethernet 2. The tab is depicted below: Ethernet Port 1 Ethernet Port 1 Ethernet Port 1 Ethernet Port 2...

  • Page 50: Transcoders

    • The Established Connections section, which lists all current connections to the transcoder (both inputs and outputs). This section is available in the configuration area for all BBG-1090-TRX-MPEG input and output ports. • The Add Connections Controls, which allows new input and output connections to the transcoder to be added.
  • Page 51 The transcoder configuration parameters are: • Transcoder Name: all BBG-1090-TRX-MPEG ports have a user-defined name. It can be configured in this field. • Transcoder State: use this control to enable (Running) or disable (Stopped) a transcoder session. • Video Compression: selects the output compression standard of the transcoding session.
  • Page 52 • Resolution: the BBG-1090-TRX-MPEG is capable of down-scaling the incoming picture. This drop-down menu has a number of pre-defined resolutions, from 1920×1080 to 320×240. It also has two additional selections: o Same as Input: this will cause the output resolution to be the same as the input resolution.
  • Page 53 Service Type: this configures the service type, as per ETSI EN 300 468 section 6.2.32. It is recommended to leave this setting on auto-select, which directs the BBG-1090-TRX-MPEG to choose the appropriate service type depending on the compression standard and bit rate.
  • Page 54 ON: always use MBAFF for interlaced content. o OFF: turn off MBAFF for interlaced content. • Output Frame Rate: the BBG-1090-TRX-MPEG is capable of reducing the incoming frame rate. This parameter controls the output frame rate. It offers the following options: o Same as Input: the output frame rate is not changed.

  • Page 55: Transcoder Established Connections

    The following applies to all the PID fields: PIDs can be entered in decimal or hexadecimal. For decimal values, simply enter the desired value. For hexadecimal values, precede them by “0x” as depicted above. PID values must be between 0x20 and 0x1FFE (32 and 8190 in decimal). PID values must be distinct, with the exception of Video PID and PCR PID.

  • Page 56: Transcoder Apply/Cancel Buttons

    Note that transcoders only support one input connection. If a given transcoder already has an input connection, the corresponding field will not be shown. Transcoder Apply/Cancel Buttons When the Apply button is clicked, the following actions take place: • The transcoder configuration takes effect. •...
  • Page 57 The possible indicator status values are: • OK: The transcoder session is operating normally (it has a valid input and is transcoding that input). • Waiting for Input: The transcoder session is configured and enabled, but it has no input. This can be because it has no connection to an input port, or because the port has no programs, or because the selected program is not available in the connected port.

  • Page 58: Connections

    The Connections configuration tab is depicted below. The message “No Connections” will be displayed if there are no configured input/output connections in the BBG-1090-TRX-MPEG. As indicated in the figure, the Connections configuration area is divided into two parts: a source selection, and a destination selection.

  • Page 59: Source Selection

    Source Selection The Source Selection area is available in the Connections tab, as well as in the Transcoder, ASI Outputs and IP Outputs tabs. This allows a connection to a given output to be established as part of the configuration actions for the output. The operation is the same regardless of the location of the control.
  • Page 60 In some situations, it may be desirable to identify the IP streams by their address/port combinations rather than using a name. This mode can be enabled by selecting Stream Addresses in the Stream Display control, as depicted below. This operation does not affect the user-defined names.

  • Page 61: Destination Selection

    o Auto-Select: This option is useful when the transport is not yet present, and the program numbers are unknown. If this option is selected, the BBG-1090-TRX- MPEG will select the first program found in the transport. When operating in an SPTS environment, it is sufficient to use this option for all connections.
  • Page 62 In the same fashion as with the Source Selection, the names can be customized, and the selection can be presented as addresses rather than names. Both situations are illustrated below. Finally, the Destination Program number can be configured. It offers two options: •...

  • Page 63: Establishing The Connection

    Once the connection is configured, click on Apply to establish it. If the source and destination have been completely specified, the connection is established and added to the Current Connections Table. If any information is missing, the BBG-1090-TRX-MPEG will take no action. Clicking on the Cancel button will clear all selections.

  • Page 64: Connection Statistics Tab

    Connection Statistics Tab The Connection Statistics Tab presents the combined status of all the established connections, in one table. It includes the Source Port, Name Stream, Source Program, Destination Port, Destination Name and Destination Program fields (with the same meaning as in the Current Connections Table).
  • Page 65 destination MAC address) or dropping packets (e.g., oversubscribed ASI or IP outputs). ASI Outputs with Automatic Rate will be in this state if they do not have data to transmit. Transcoders can also be in this state if they encounter an error. A sample of the Connection Statistics Tab is depicted below.

  • Page 66: Admin

    • License Keys: Contains the current licensing state of the BBG-1090-TRX-MPEG, and allows for new license keys to be entered. • Event Log: The BBG-1090-TRX-MPEG contains a non-volatile event log. It can be inspected and downloaded from this tab. The Admin Statistics tabs are simplified read-only versions of the corresponding Admin Configuration tabs.

  • Page 67: Admin Firmware Tab

    • Card Name: This field defaults to “BBG-1090-TRX-MPEG” but can be set to any descriptive name. The name provided here will also appear in the Dashboard™ Tree View. • SNMP Traps: This allows SNMP traps to be enabled or disabled .
  • Page 68 Note that uploading firmware to the BBG-1090-TRX-MPEG does not affect its operation in any way and does not introduce any glitches in the inputs/outputs. Click here to start firmware update The fields in the Firmware Image Management tab are: • Factory Image, Image 1, and Image 2: These contain version and release date information for the corresponding firmware images.

  • Page 69: Admin Config Files Tab

    Admin Config Files Tab As you make configuration changes to the BBG-1090-TRX-MPEG, they are automatically persisted in non-volatile storage. If the card is rebooted or power-cycled, it will come back in the same configuration.

  • Page 70: User-Saved Configurations

    • Config Load Button: If you click on this button, the corresponding configuration is loaded in the BBG-1090-TRX-MPEG card. It will replace the currently-running configuration. Dashboard™ will take a few seconds to reload (longer if you are accessing over a wide-area network), but the actual configuration in the BBG-1090-TRX- MPEG is virtually instantaneous.

  • Page 71: Pre-Defined Templates

    This process is discussed in further detail in the Dashboard User Manual, chapter 5, section Restoring Configurations to Devices. Pre-defined Templates The BBG-1090-TRX-MPEG offers 5 pre-defined configuration templates, as indicated below. To load a template, just click on the Load button next to it. The pre-defined templates are; • IP In...

  • Page 72: Clear Current Configuration Button

    • Saved configurations are not modified in any way. Dashboard™ will take a few seconds to reload (longer if you are accessing over a wide-area network), but the actual configuration in the BBG-1090-TRX-MPEG is virtually instantaneous. The Status Message Area will indicate the result of the operation.
  • Page 73 To configure one of the TPGs, click on the Edit button on its row. The following configuration parameters are displayed: Configuration Parameters Established Connections Add Connection Controls The configuration interface is divided into the following areas: • TPG Configuration Parameters, described in this section. •...

  • Page 74: Admin License Keys Tab

    The BBG-1090-TRX-MPEG has the concept of a temporary license. If you want to try out a certain feature, contact Cobalt. You will receive a license key that enables that feature for a specific period of running time (license time does not “count”...
  • Page 75 • Serial number mismatch: this key is for serial xxxxxxxxxxxx: BBG-1090-TRX-MPEG license keys are specific to a card. You entered a valid license key, but it is intended for a different card, whose serial number is displayed in the message. You must use this key on the correct card.

  • Page 76: Admin Event Log Tab

    Admin Event Log Tab The BBG-1090-TRX-MPEG includes an Event Log in non-volatile storage. This event log can be used for fault-finding, and to check for error conditions. The following information is included in each BBG-1090-TRX-MPEG event in the log: • Date: The calendar date in which the event occurred.
  • Page 77 Select This Configure If your frame controller has access to the Internet, you can point it to one of the public NTP servers for your region. You can find more details on this link: http://psp2.ntp.org/bin/view/Servers/WebHome The full Admin Event Log tab is displayed below:...
  • Page 78 • Time Zone: To simplify the correlation of the events with your local time, you can set your time zone using this drop-down menu. Note that the BBG-1090-TRX-MPEG presents a simplified list, with standard GMT offsets. Note that standard GMT offsets do not change back and forth with Daylight Savings;...
  • Page 79 The BBG-1090-TRX-MPEG will store up to about 400 kBytes of logs in non-volatile memory. When that limit is reached, the oldest half of the stored logs will be deleted to make space for...

  • Page 80: Support Tab

    Support Tab If you need support with your XC440 transcoder, you can contact Cobalt Support by phone or e- mail as shown in this manual. If you need to contact Technical Support, please be prepared to provide the following information: 1.

  • Page 81: Playing Video On A Web Page

    Therefore, it is not possible to use the HTML5 <VIDEO> tag with content generated by the BBG-1090-TRX-MPEG. In order to play the bitstream coming from the BBG-1090-TRX-MPEG in a web page, a plugin with the appropriate audio, video and container support must be installed in the web browser.

  • Page 82: Web Pages Served By The Bbg-1090-Trx-Mpeg

    MPEG Ethernet port: http://transcoder_ip The BBG-1090-TRX-MPEG will respond with a Web page with the appropriate links to access the streams, depending on the current configuration. Note that the pages served by each Ethernet port will be different, since each page will only list the multicast outputs defined on that particular interface.

  • Page 83: Web Browser Support

    Web Browser Support The web pages generated by the BBG-1090-TRX-MPEG are known to work with the VideoLAN plugin versions 2.0.1 to 2.1.3 and the following web browsers (Windows): •...

  • Page 84: Warranty And Repair Policy

    (1) year. Cobalt Digital Inc.'s (“Cobalt”) sole obligation under this warranty shall be limited to, at its option, (i) the repair or (ii) replacement of the product, and the determination of whether a defect is covered under this limited warranty shall be made at the sole discretion of Cobalt.

  • Page 85: Contact Cobalt Digital Inc

    E-MAIL Sales@cobaltdigital.com Sales Information 2406 East University Avenue POSTAL Cobalt Digital Inc. Urbana, IL 61802 USA SERVICE Visit us at the Cobalt Digital Inc. website. http://www.cobaltdigital.com/ • Online catalog • Related products and full product lines • Trade show information •...
