- Page 1 B-2229(0) SX5E Series Entry-Level Industrial Ethernet Switch INSTRUCTION SHEET...
- Page 2 This document is not guaranteed to be error-free, and we reserve the right to amend it without notice to users. All rights reserved. All rights related to this manual are reserved by IDEC Corporation. No part of this document may be reproduced, reprinted, sold, transferred, or leased without the prior written permission of IDEC Corporation.
- Page 3 Responsible Party – U.S. Contact Information IDEC Corporation 1175 Elko Drive, Sunnyvale, CA 94089-2209, USA Tel: +1-408-747-0550 opencontact@idec.com FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any...
-
Page 4: Table Of Contents
Contents Product Overview ............................5 Structure and Interface ..........................6 Front Panel ............................6 Top Panel ...............................6 Mounting ................................7 Dimension Drawing ..........................7 Mounting ..............................7 3.2.1. DIN-Rail Mounting ..........................8 3.2.2. DIN-Rail Dismounting ........................8 Connection ..............................9 10/100Base-T(X) Ethernet Port ......................9 Grounding ............................10 Power Terminal Block ......................... 10 DIP Switches ............................ -
Page 5: Product Overview

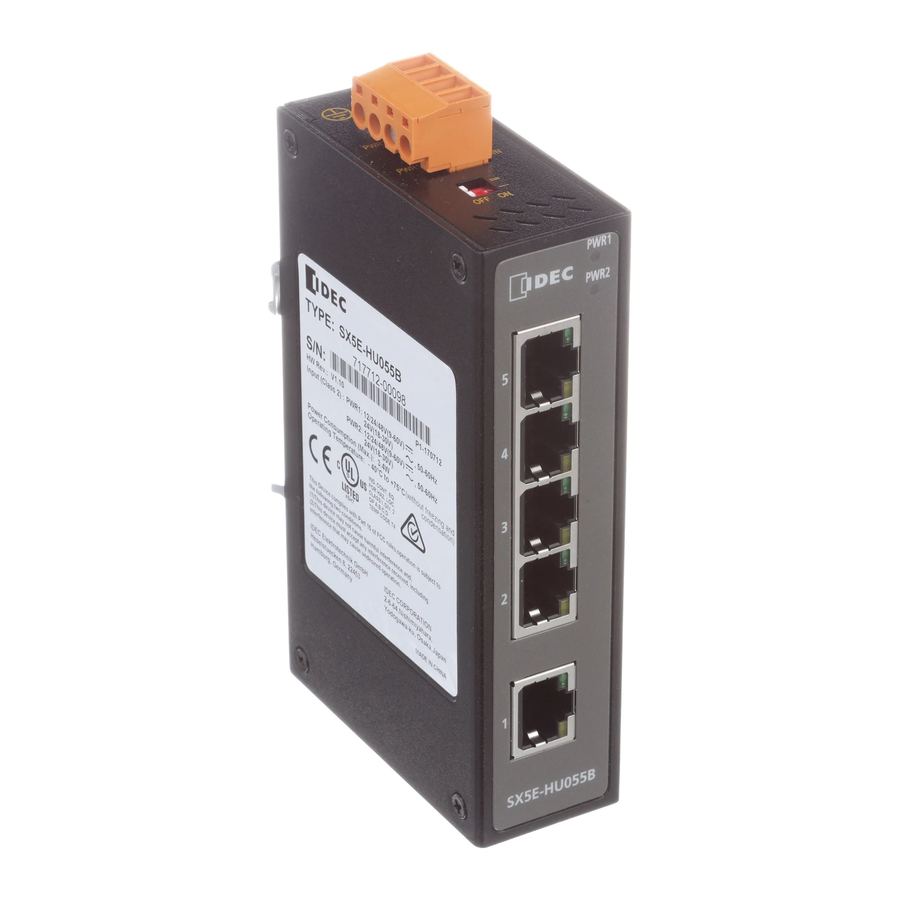

1 Product Overview SX5E is an entry-level industrial Ethernet switch designed for the factory automation industry. SX5E with QoS capabilities and an IP30-protected metal enclosure, efficiently allocates network bandwidth, makes rational use of network resources, and ensures fast and reliable data transmission in harsh industrial environments. Broadcast storm prevention function (BPS) and Quality of Service (QoS) can be turned on or off by setting DIP switches. -
Page 6: Structure And Interface
2 Structure and Interface Caution： To keep the ports clean and free of dust and dirt, and to ensure the performance of the product, we recommend the use of a connector cover for the RJ45 port (optional accessory). 2.1 Front Panel (1) Power 1 LED (2) Power 2 LED (3) 10/100Base-T(X) Ethernet port... -
Page 7: Mounting
Devices are for use in an area of not more than pollution degree 2 in accordance with IEC 60664-1. Customer shall insure device working in the right ambient temperature, -40℃～+75℃ for SX5E series. No direct sunlight, distant from heat source and areas with strong electromagnetic interference. ... -
Page 8: Din-Rail Mounting
3.2.1. DIN-Rail Mounting DIN-rail mounting can be done by one of the following methods. Step 1: Hook the DIN rail mounting kit to the top of the DIN rail. Step 2: Press the bottom of the device so that the DIN rail fits into the DIN rail mounting kit. Make sure that the device is firmly attached to the DIN rail. -
Page 9: Connection
4 Connection 4.1 10/100Base-T(X) Ethernet Port 10/100Base-T(X) Ethernet port is equipped with RJ45 connector. The port is self-adaptive. It can automatically configure itself to work in 10M or 100M state, full or half duplex mode. The port can also adapt to MDI or MDI- X connection automatically. -
Page 10: Grounding
4.2 Grounding Grounding protects the device from lightning and interference. Therefore, you must ground the device properly. You need to ground the device before it is powered on and disconnect the grounding cable after the device is powered off. There is a grounding screw (see Figure 2) on the top panel of the device. The screw is for chassis grounding. After crimping one end of the grounding cable to a cold pressed terminal, secure the end of the grounding cable to the grounding screw and firmly connect the other end to ground. -
Page 11: Dip Switches
Wiring and mounting should meet following specifications. Table 4 Wiring and Mounting Specifications Terminal Type Required Torque Wire Range (AWG) Terminal Block Plug 0.5Nm 12-24 Caution： Provision shall be made to prevent the rated voltage from being exceeded by transient disturbances of more than 140% of the rated voltage. -
Page 12: Optional Function
5 Optional Function 5.1 Broadcast Storm Protection (BSP) function If a large amount of broadcast packets are sent (broadcast storm), a communication error may occur or a network trouble such as the performance degradation of the entire network may occur. When you enable the Broadcast Storm Protection (BSP) function, it is possible to protect the network from such a network trouble. -
Page 13: Leds
6 LEDs Table 5 LEDs State Description The power 1 is connected and operates properly. Power 1 LED The power 1 is not connected or operates abnormally. The power 2 is connected and operates properly. Power 2 LED The power 2 is not connected or operates abnormally. 100M working state (100Base-TX) 10/100Base-T(X) Ethernet port speed LED (yellow) - Page 14 8 Option SX9Z-PMTD04PN02 Power Supply Terminal Block (2 pieces) SX9Z-CAP2PN02 Connector cover for RJ45 port (2 pieces) SX9Z-1A01 Direct mounting bracket (1 pieces) Direct mounting bracket Step 1: Remove the DIN rail mounting kit after removing fixation screws. Step 2: Fix the direct mounting bracket in two places using the supplied screws in the direction shown. (Tightening torque: 0.39-0.41 Nm) Figure 10 Direct mounting bracket...
- Page 15 http://www.idec.com...
